TA60LG-AWHDSW (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )TA6#

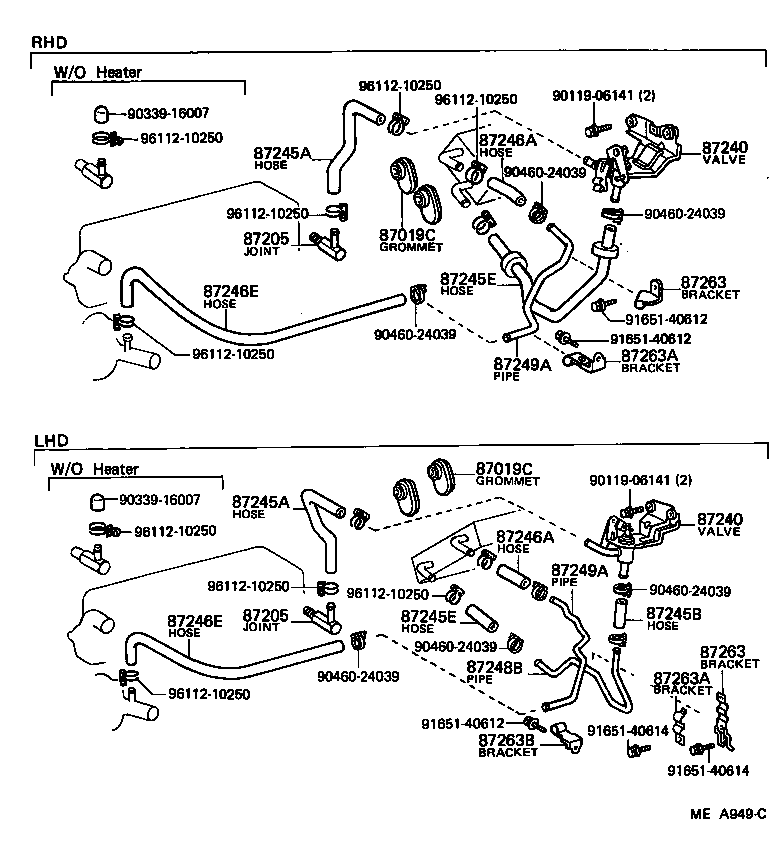

Click highlighted areas on diagram

diagram 87019C 87019C 87205 87205 87240 87240 87245A 87245A 87245B 87245E 87245E 87246A 87246A 87246E 87246E 87248B 87249A 87249A 87263 87263 87263A 87263A 87263B 9011906141 9011906141 9033916007 9033916007 9046024039 9046024039 9046024039 9046024039 9046024039 9046024039 9165140612 9165140612 9165140612 9165140614 9165140614 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01015

CA60,TA6#

 2
87019C - GROMMET, HEATER HOSE
90480-01015

CA60,TA6#

 2
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-20100

TA6#

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-20100

TA6#

 1
87240 - VALVE ASSY, HEATER WATER
87240-14120

TA6#..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-14120

TA6#..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-14870

TA6#..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-14870

TA6#..LHD

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30055

CA60,TA6#..LHD

*H,L=55

 1
99552-30075

CA60,TA6#..LHD

*H,L=55

 1
87245E - HOSE, HEATER WATER, INLET E
87245-1B060

CA60,TA6#..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-1B060

CA60,TA6#..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-30100

CA60,TA6#..LHD

*H,L=55

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-30100

CA60,TA6#..LHD

*H,L=55

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-1B050

TA6#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-1B050

TA6#

 1
87248B - PIPE, HEATER WATER INLET, B
87248-14160

CA60,TA6#..LHD

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-14190

CA60,TA6#..LHD

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-14190

CA60,TA6#..LHD

 1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-14030

CA60,TA6#..LHD

 1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-14030

CA60,TA6#..LHD

 1
87263A - BRACKET, HEATER WATER PIPE, NO.2
87263-14040

CA60,TA6#..LHD

 1
87263A - BRACKET, HEATER WATER PIPE, NO.2
87263-14040

CA60,TA6#..LHD

 1
87263B - BRACKET, HEATER WATER PIPE, NO.3
87263-14110

CA60,TA6#..LHD

 1
Common parts
90119-06141
90339-16007
90460-24039
91651-40612
91651-40614
96112-10250
