Toyota Carina TA60 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Manufacturers Home
Toyota
GR
CARINA
TA60L-AEKDSW (1981)
8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

TA60L-AEKDSW (1981)

Toyota Carina

Production Aug 1981 - Sep 1983

Engine 2T

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8108- )

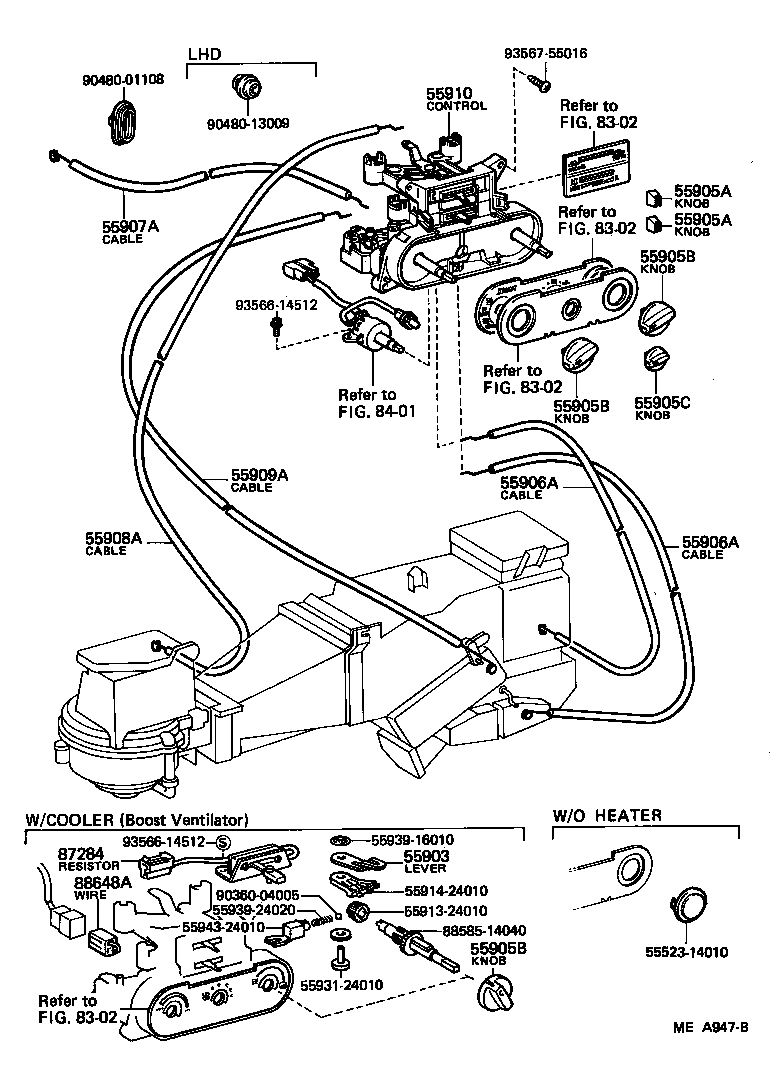

Click highlighted areas on diagram

Part #	Description	Period	Qty
55905A - KNOB, HEATER CONTROL
55905-12070	CA60,TA6#	08/1981 - 09/1983	2
55905A - KNOB, HEATER CONTROL
55905-12070	CA60,TA6#	08/1981 - 09/1983	2
55905B - KNOB, HEATER CONTROL, NO.2
55905-24011	CA60,TA6#	08/1981 - 09/1983	2
55905-14110	TA6#..(SED,WG)..EUG *IPM	08/1981 - 09/1983	2
55905-24010	TA60 W/BOOST VENTILATOR & COOLER	08/1981 - 09/1983	1
55905B - KNOB, HEATER CONTROL, NO.2
55905-24011	CA60,TA6#	08/1981 - 09/1983	2
55905-14110	TA6#..(SED,WG)..EUG *IPM	08/1981 - 09/1983	2
55905-24010	TA60 W/BOOST VENTILATOR & COOLER	08/1981 - 09/1983	1
55905B - KNOB, HEATER CONTROL, NO.2
55905-24011	CA60,TA6#	08/1981 - 09/1983	2
55905-14110	TA6#..(SED,WG)..EUG *IPM	08/1981 - 09/1983	2
55905-24010	TA60 W/BOOST VENTILATOR & COOLER	08/1981 - 09/1983	1
55905C - KNOB, HEATER CONTROL, NO.3
55905-24021	CA60,TA6#	08/1981 - 09/1983	1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-14120	CA60,TA6#..LHD WIRE:L=470,TUBE:L=405	08/1981 - 09/1983	1
55906-14150	CA60,TA6# WIRE:L=450,TUBE:L=400 W/HEATER	08/1981 - 09/1983	1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-14120	CA60,TA6#..LHD WIRE:L=470,TUBE:L=405	08/1981 - 09/1983	1
55906-14150	CA60,TA6# WIRE:L=450,TUBE:L=400 W/HEATER	08/1981 - 09/1983	1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-14210	CA60,TA6#..LHD	08/1981 - 09/1983	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-14080	CA60,TA6#	08/1981 - 09/1983	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-14040	CA60,TA6#	08/1981 - 09/1983	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-14270	CA60,TA6#..LHD	08/1981 - 09/1983	1
55910-14370	CA60,TA6#..(SED,WG)..LHD..EUG *IPM	08/1981 - 09/1983	1
Common parts
55523-14010
55913-24010
55914-24010
55931-24010
55939-16010
55939-24020
55943-24010
88585-14040
90360-04005
90480-01108
90480-13009
93566-14512
93567-55016
Linked diagrams
8302
8401

(8108- )

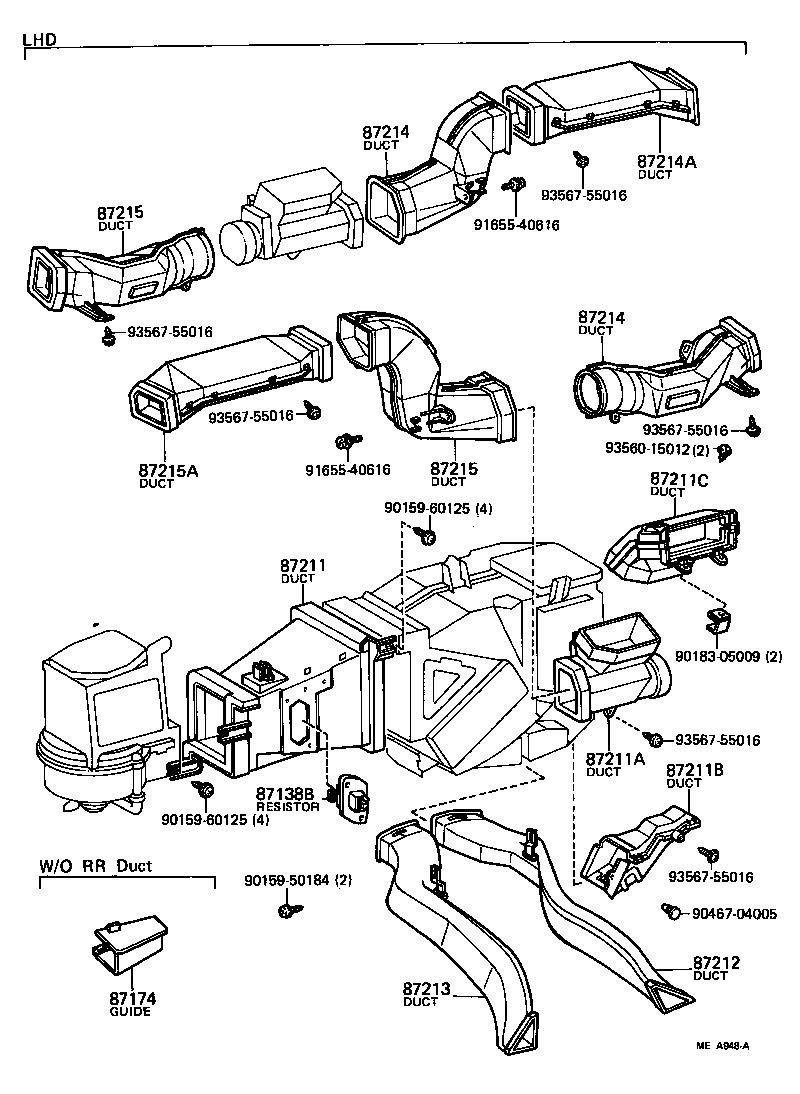

Click highlighted areas on diagram

Part #	Description	Period	Qty
87138B - RESISTOR, HEATER BLOWER
87138-14060	CA60,TA6#..LHD	08/1981 - 09/1983	1
87174 - GUIDE, AIR DUCT
87174-14040	CA60,TA60;TA62..EUG,SDZ	08/1981 - 09/1983	1
87211 - DUCT, AIR, NO.1
87201-14151	CA60,TA6#..LHD	04/1982 - 09/1983	1
87201-14150	TA6#..LHD	08/1981 - 04/1982	1
87211A - DUCT, AIR, NO.2
87201-14110	CA60,TA6#..LHD	08/1981 - 09/1983	1
87211B - DUCT, AIR, NO.3
87201-14140	CA60,TA6#..LHD..EUR	05/1983 - 09/1983	1
87201-14140	CA60,TA6#..LHD	08/1981 - 05/1983	1
87211C - DUCT, AIR, NO.4
55086-14120	CA60,TA6#..LHD	08/1981 - 09/1983	1
87212 - DUCT, AIR, REAR NO.1
87212-24010	CA60,TA6#..EUR	08/1981 - 09/1983	1
87213 - DUCT, AIR, REAR NO.2
87213-24010	CA60,TA6#..EUR	08/1981 - 09/1983	1
87214 - DUCT, AIR, SIDE NO.1 RH
55087-14120	CA60,TA6#..LHD	08/1981 - 09/1983	1
87214 - DUCT, AIR, SIDE NO.1 RH
55087-14120	CA60,TA6#..LHD	08/1981 - 09/1983	1
87214A - DUCT, AIR, SIDE NO.2 RH
55088-14060	CA60,TA6#..LHD	08/1981 - 09/1983	1
87215 - DUCT, AIR, SIDE NO.1 LH
55085-14120	CA60,TA6#..LHD	08/1981 - 09/1983	1
87215 - DUCT, AIR, SIDE NO.1 LH
55085-14120	CA60,TA6#..LHD	08/1981 - 09/1983	1
Common parts
90159-50184
90159-60125
90183-05009
90467-04005
91655-40616
93560-15012
93567-55016
