TA60L-AEHDSW (1981)
Toyota Carina
Production
Aug 1981
-
Sep 1983
Engine
2T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )

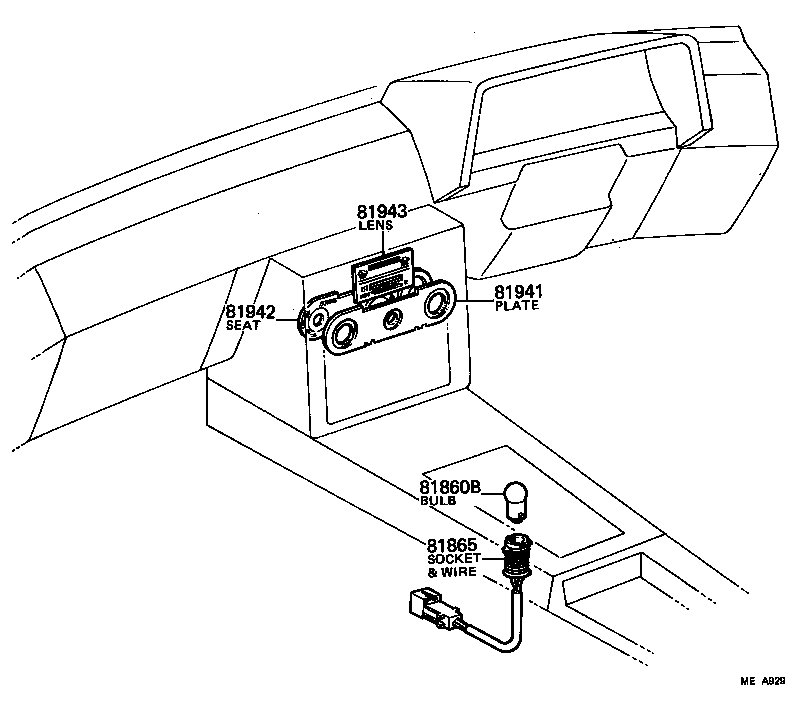

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81860B - BULB, TRANSMISSION INDICATOR LAMP | ||||
| 99132-11034 |
TA6#..3FC 12V 3.4W,12V 3.4W |
1 | ||
| 81865 - SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP | ||||
| 35906-14010 |
TA6#..3FC |
1 | ||
| 81941 - PLATE, HEATER CONTROL NAME | ||||
| 55519-14010 |
CA60,TA6# |
1 | ||
| 81942 - SHEET, HEATER CONTROL NAME | ||||
| 81942-14050 |
CA60,TA6#..LHD W/HEATER |
1 | ||
| 81943 - LENS, HEATER CONTROL INDICATOR | ||||
| 81943-14370 |
CA60,TA6#..LHD W/HEATER |
1 | ||
