TA60L-ACMES (1981)
Toyota Carina
Production
Aug 1981
-
Sep 1983
Engine
2T
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )

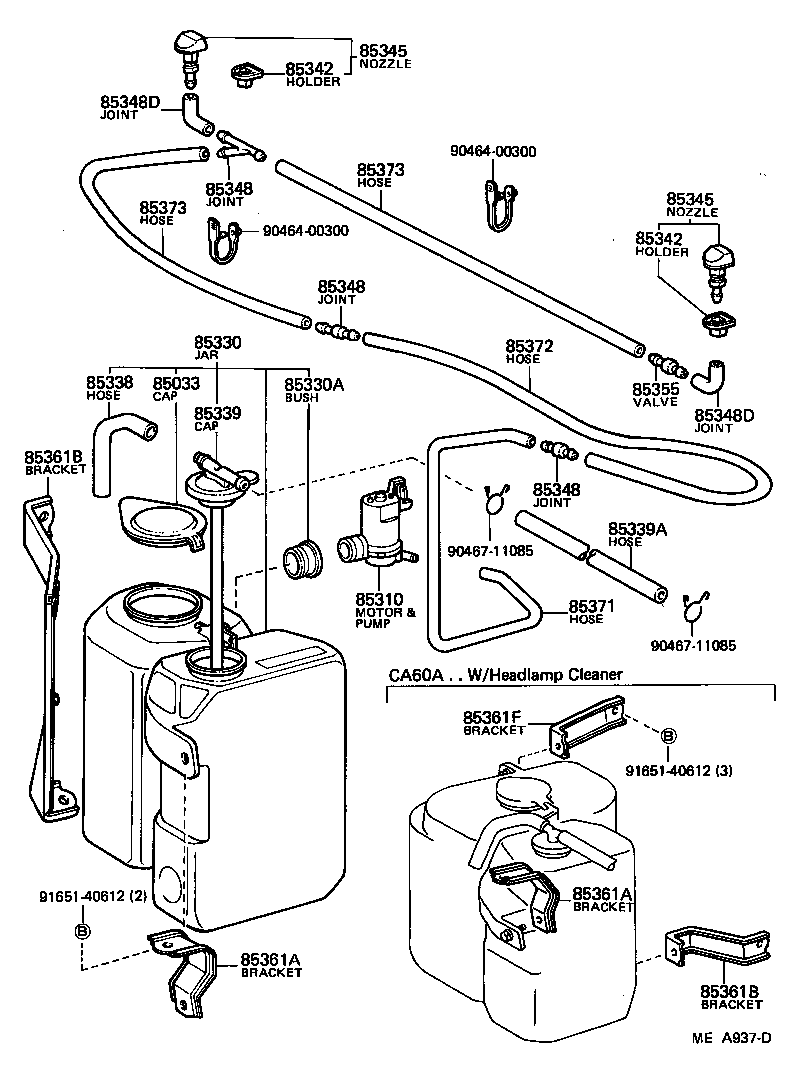

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-16010 |
TA60..GEN |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
CA60,TA6# |
1 | ||
| 85310-10130 |
CA60,TA6# |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-20201 |
TA60..GEN |
1 | ||
| 85330-20350 |
TA60..GEN |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
CA60,TA6# |
1 | ||
| 85338 - HOSE, BREATHER | ||||
| 85338-14040 |
CA60,TA6# |
1 | ||
| 85339 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85339-14010 |
CA60,TA6# |
1 | ||
| 85339A - HOSE (FOR RADIATOR RESERVE TANK) | ||||
| 90445-12005 |
CA60,TA6# |
1 | ||
| 85342 - HOLDER, WASHER NOZZLE | ||||
| 85342-14010 |
CA60,TA6# |
2 | ||
| 85342 - HOLDER, WASHER NOZZLE | ||||
| 85342-14010 |
CA60,TA6# |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-19025 |
CA60,TA6# |
2 | ||
| 85035-19015 |
TA6#..CP |
1 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-19025 |
CA60,TA6# |
2 | ||
| 85035-19015 |
TA6#..CP |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-14010 |
CA60,TA6# 3-WAY |
1 | ||
| 85355-87201 |
CA60,TA6# 2-WAY |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-14010 |
CA60,TA6# 3-WAY |
1 | ||
| 85355-87201 |
CA60,TA6# 2-WAY |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-14010 |
CA60,TA6# 3-WAY |
1 | ||
| 85355-87201 |
CA60,TA6# 2-WAY |
2 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20070 |
CA60,TA6# |
2 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20070 |
CA60,TA6# |
2 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85031-14080 |
CA60,TA6# |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85361-20120 |
TA60..GEN |
1 | ||
| 85361-14320 |
CA60,TA6# |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85361-20120 |
TA60..GEN |
1 | ||
| 85361-14320 |
CA60,TA6# |
1 | ||
| 85361B - BRACKET, WINDSHIELD WASHER, NO.2 | ||||
| 85361-14330 |
CA60,TA6# |
1 | ||
| 85361-20170 |
TA60..GEN |
1 | ||
| 85361B - BRACKET, WINDSHIELD WASHER, NO.2 | ||||
| 85361-14330 |
CA60,TA6# |
1 | ||
| 85361-20170 |
TA60..GEN |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-06013 |
CA60,TA6# L=450 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-07001 |
CA60,TA6# |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
CA60,TA6# *H,L=550 |
1 | ||
| 90446-06013 |
CA60,TA6# *H,L=550 |
1 | ||
| 90099-33299 |
CA60,TA6# *H,L=450 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
CA60,TA6# *H,L=550 |
1 | ||
| 90446-06013 |
CA60,TA6# *H,L=550 |
1 | ||
| 90099-33299 |
CA60,TA6# *H,L=450 |
1 | ||
| Common parts | ||||
| 90464-00300 | ||||
| 90467-11085 | ||||
| 91651-40612 | ||||
