TA60L-ACMES (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )2T,3T#

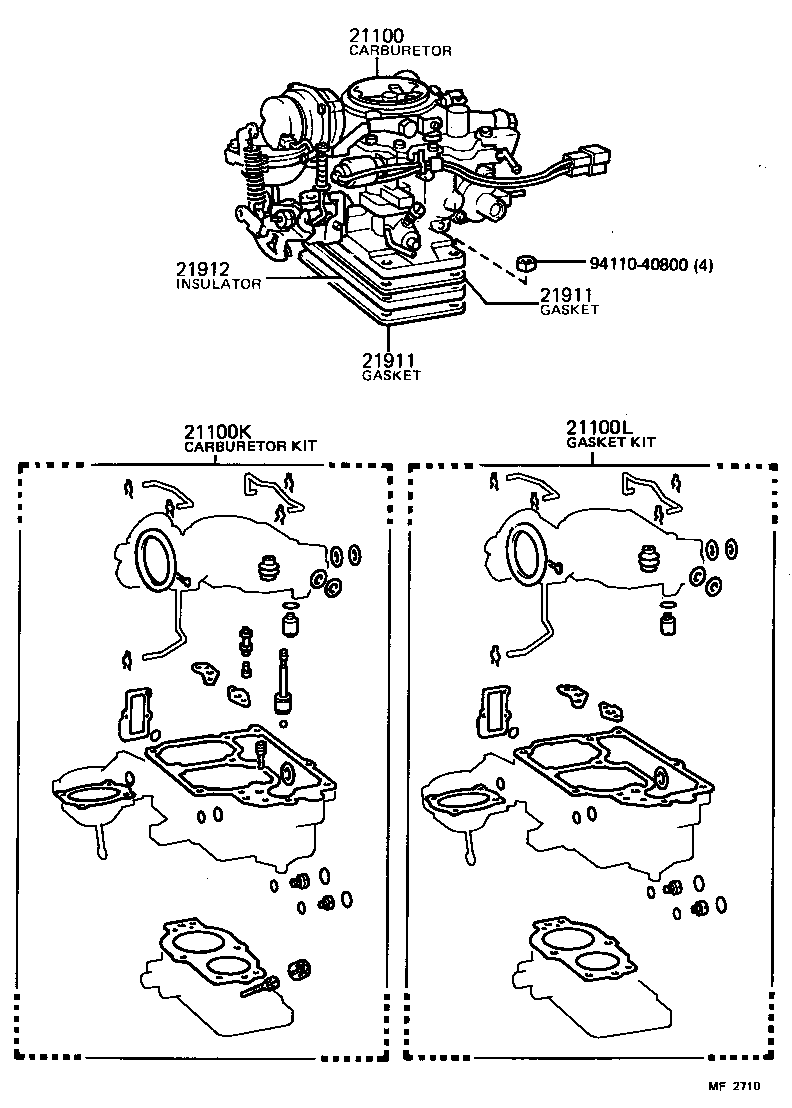

Click highlighted areas on diagram

diagram 21100 21100K 21100L 21911 21911 21912 9411040800
Part # Description Qty Price
21100 - CARBURETOR ASSY
21100-2A080

2T..TA60..LHD..GEN

 1
21100K - CARBURETOR KIT
04211-26250

2T,3T..TA6#

 1
21100L - GASKET KIT, CARBURETOR
04212-26080

2T,3T..TA6#

 1
21911 - GASKET, CARBURETOR
21911-26010

2T,3T#..TA6#

 2
21911 - GASKET, CARBURETOR
21911-26010

2T,3T#..TA6#

 2
21912 - INSULATOR, CARBURETOR HEAT
21912-26021

2T,3T#..TA6#

 1
Common parts
94110-40800
