TA60L-ACMDSW (1981)

Toyota Carina

Production Aug 1981 - Sep 1983
Engine 2T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

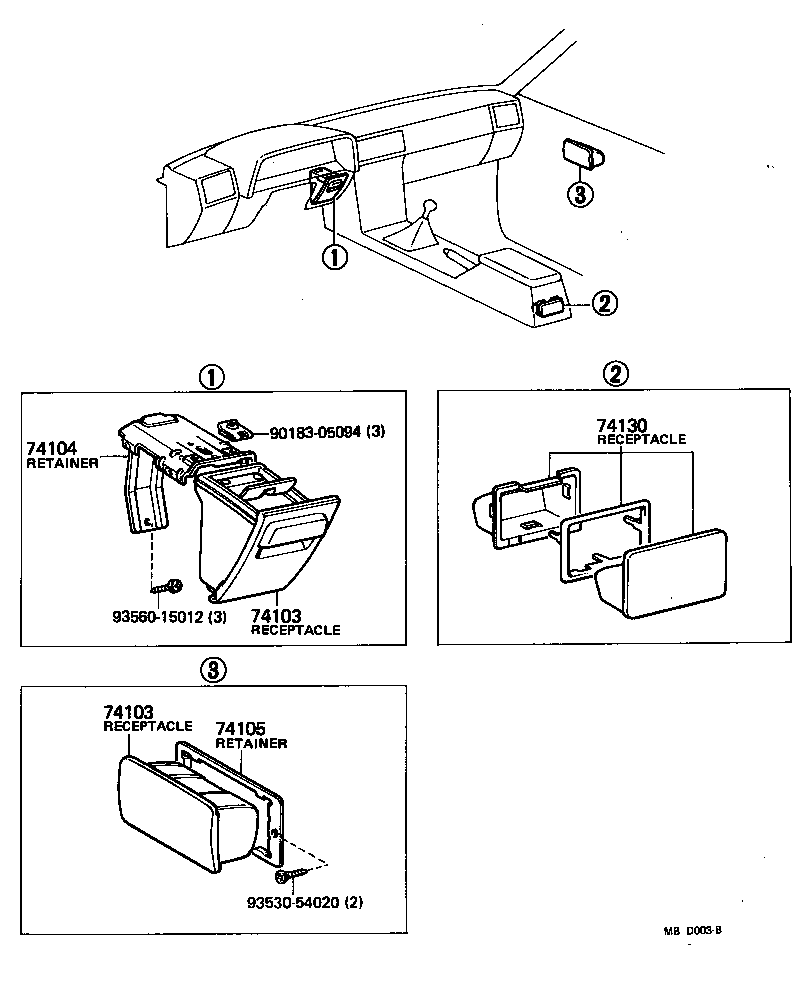

Click highlighted areas on diagram

diagram 74103 74103 74104 74105 74130 9018305094 9353054020 9356015012
Part # Description Qty Price
74103 - RECEPTACLE SUB-ASSY, ASH, NO.1
74130-1402036

CA60,TA6#

DOOR,DARK BROWN,BROWN,TRIM4#

 1
74130-1402001

CA60,TA6#

DOOR,BLACK,BLACK,TRIM2#

 1
74102-1410006

CA60,TA6#

*IP,DARK BROWN,BROWN,TRIM4#

 1
74102-1410104

CA60,TA6#..CP,SED

*IP,BLUE,BLUE,TRIM8#

 1
74130-1402014

CA60,TA6#..CP,SED

DOOR,BLUE,BLUE,TRIM8#

 1
74102-1410001

CA60,TA6#

*IP,BLACK,BLACK,TRIM2#

 1
74102-1410106

CA60,TA6#

*IP,DARK BROWN,BROWN,TRIM4#

 1
74102-1410004

CA60,TA6#..CP,SED

*IP,BLUE,BLUE,TRIM8#

 1
74102-1410101

CA60,TA6#

*IP,BLACK,BLACK,TRIM2#

 1
74103 - RECEPTACLE SUB-ASSY, ASH, NO.1
74130-1402036

CA60,TA6#

DOOR,DARK BROWN,BROWN,TRIM4#

 1
74130-1402001

CA60,TA6#

DOOR,BLACK,BLACK,TRIM2#

 1
74102-1410006

CA60,TA6#

*IP,DARK BROWN,BROWN,TRIM4#

 1
74102-1410104

CA60,TA6#..CP,SED

*IP,BLUE,BLUE,TRIM8#

 1
74130-1402014

CA60,TA6#..CP,SED

DOOR,BLUE,BLUE,TRIM8#

 1
74102-1410001

CA60,TA6#

*IP,BLACK,BLACK,TRIM2#

 1
74102-1410106

CA60,TA6#

*IP,DARK BROWN,BROWN,TRIM4#

 1
74102-1410004

CA60,TA6#..CP,SED

*IP,BLUE,BLUE,TRIM8#

 1
74102-1410101

CA60,TA6#

*IP,BLACK,BLACK,TRIM2#

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-14120

CA60,TA6#

 1
74105 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.2
67641-30010

CA60,TA6#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-1204006

CA60,TA6#

DARK BROWN,BROWN,TRIM4#

 1
74130-1204001

CA60,TA6#

BLACK,BLACK,TRIM2#

 1
74130-1204014

CA60,TA6#..CP,SED

BLUE,BLUE,TRIM8#

 1
Common parts
90183-05094
93530-54020
93560-15012
