TA14R-MSFB (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

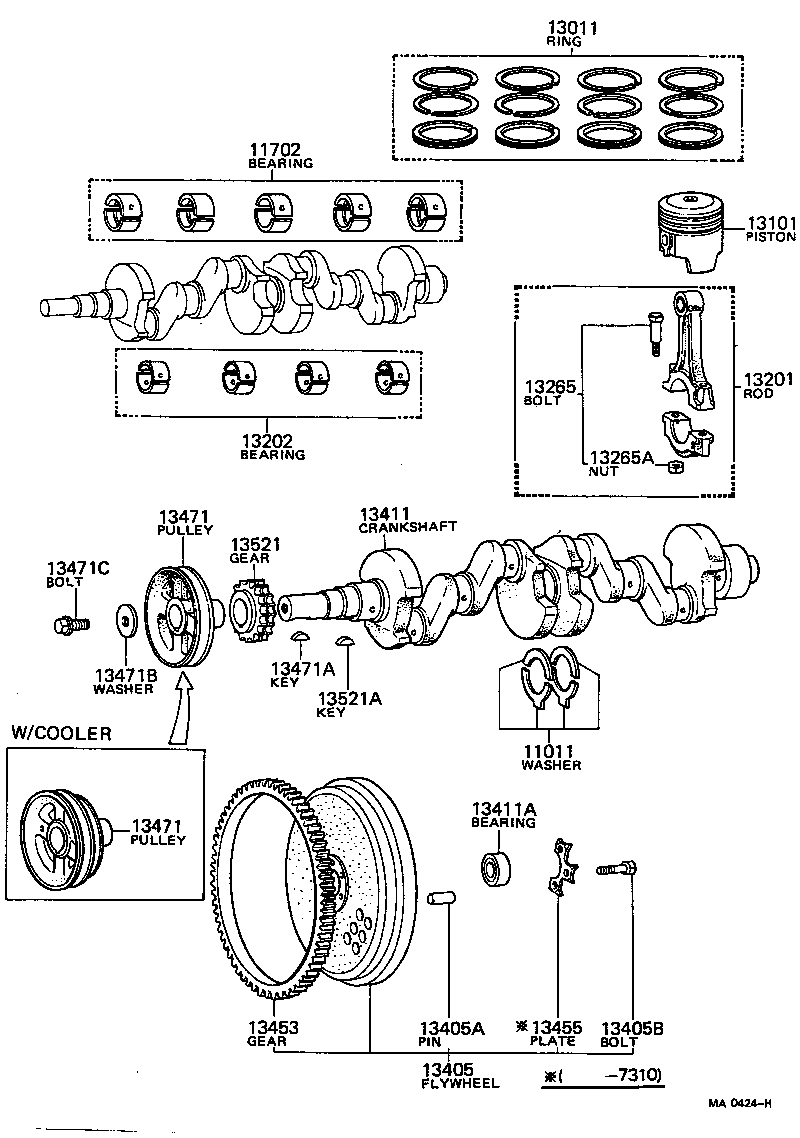

Click highlighted areas on diagram

diagram 11011 11702 13011 13101 13201 13202 13265 13265A 13405 13405A 13405B 13411 13411A 13453 13455 13471 13471 13471A 13471B 13471C 13521 13521A
Part # Description Qty Price
11702 - BEARING SET, CRANKSHAFT
11703-25010

T,2T..TA1#

U/S 0.05

 1
11706-25010

T,2T..TA1#

U/S 0.75

 1
11702-25010

T,2T..TA1#

STD

 1
11705-25010

T,2T..TA1#

U/S 0.50

 1
11704-25010

T,2T..TA1#

U/S 0.25

 1
13011 - RING SET, PISTON
13011-27020

2T#..TA14

STD

 1
13014-27020

2T#..TA14

O/S 0.75

 1
13015-27020

2T#..TA14

O/S 1.00

 1
13013-27020

2T#..TA14

O/S 0.50

 1
13101 - PISTON SUB-ASSY, W/PIN
13105-26030

2T..TA14

O/S 1.00

 4
13103-26030

2T..TA14

O/S 0.50

 4
13101-26030

2T..TA14

STD

 4
13104-26030

2T..TA14

O/S 0.75

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-25010

T,2T#..TA1#

 4
13202 - BEARING SET, CONNECTING ROD
13202-25010

T,2T#..TA1#

STD

 1
13204-25010

T,2T#..TA1#

U/S 0.25

 1
13203-25010

T,2T#..TA1#

U/S 0.05

 1
13206-25010

T,2T#..TA1#

U/S 0.75

 1
13205-25010

T,2T#..TA1#

U/S 0.50

 1
13265 - BOLT, CONNECTING ROD
13265-29025

T,2T#..TA1#

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09042

T,2T..TA1#

 8
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

T,2T#..TA1#..MTM

L=23,OD=8,L=23,OD=8

 2
13405B - BOLT, FLYWHEEL SETTING
90105-10042

2T#..TA14..MTM

 6
90101-10061

T,2T#..TA1#..MTM

 6
13411 - CRANKSHAFT
13411-25010

T,2T#..TA1#

 1
13411A - BEARING(FOR INPUT SHAFT FRONT)
97123-06001

T,2T#..TA1#..MTM

6001 ZZ C3

 1
13453 - GEAR, FLYWHEEL RING
13453-20010

T,2T#..TA1#..MTM

N=115

 1
13455 - PLATE, FLYWHEEL BOLT LOCK, NO.1
13455-25010

T,2T#..TA1#..MTM

 2
13471 - PULLEY, CRANKSHAFT
13471-25010

T,2T#..TA1#

 1
13471-25021

T,2T#..TA1#

W/COOLER

 1
13471 - PULLEY, CRANKSHAFT
13471-25010

T,2T#..TA1#

 1
13471-25021

T,2T#..TA1#

W/COOLER

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

T,2T#..TA1#

 1
13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
90209-13059

T,2T#..TA1#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90109-12040

T,2T#..TA1#

 1
90105-12028

T,2T#..TA1#

W/COOLER

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-33010

T,2T#..TA1#

N=18

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

T,2T#..TA1#

 1
