TA14R-MSB (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

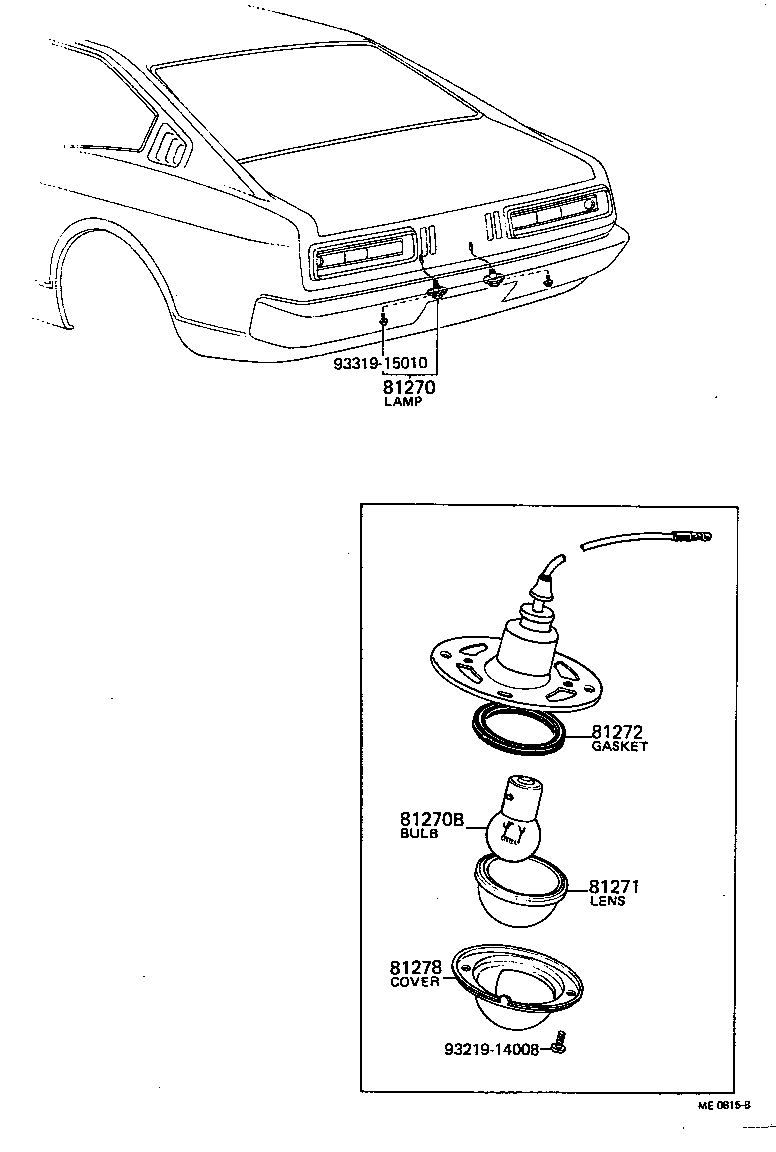

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 81278 9321914008 9331915010
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-19135

TA1#

 2
81270-19145

TA1#

EUR.SPEC.

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050

TA1#

12V 5W,12V 5W,EUR.SPEC.

 2
99132-11075

TA1#

12V 7.5W,12V 7.5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-30050

TA1#

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-10010

TA1#

 2
81278 - COVER, LICENSE PLATE LAMP
81278-14010

TA1#

 2
Common parts
93219-14008
93319-15010
