TA14R-MSB (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7510-7707)2T

Click highlighted areas on diagram

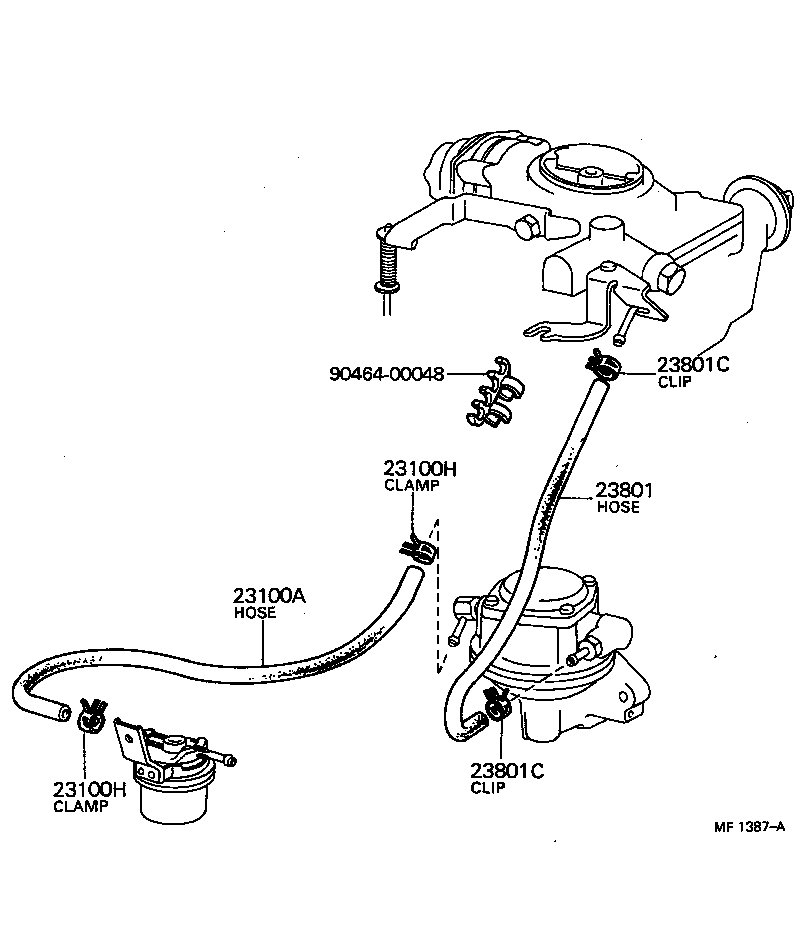

diagram 23100A 23100H 23100H 23801 23801C 23801C 9046400048
Part # Description Qty Price
23100A - HOSE, FUEL
90923-01137

T,2T..TA1#

L=280

 1
95331-06030

2T#..TA14

 1
95331-06026

2T#..TA14

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-25010

T,2T..TA1#

 1
95331-06030

2T..TA14

*H,L=300

 1
90445-12055

2T#..TA14

 1
95331-06026

2TB..TA14

*H,L=260

 1
Common parts
90464-00048
