TA14R-KRF (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7510-7707)

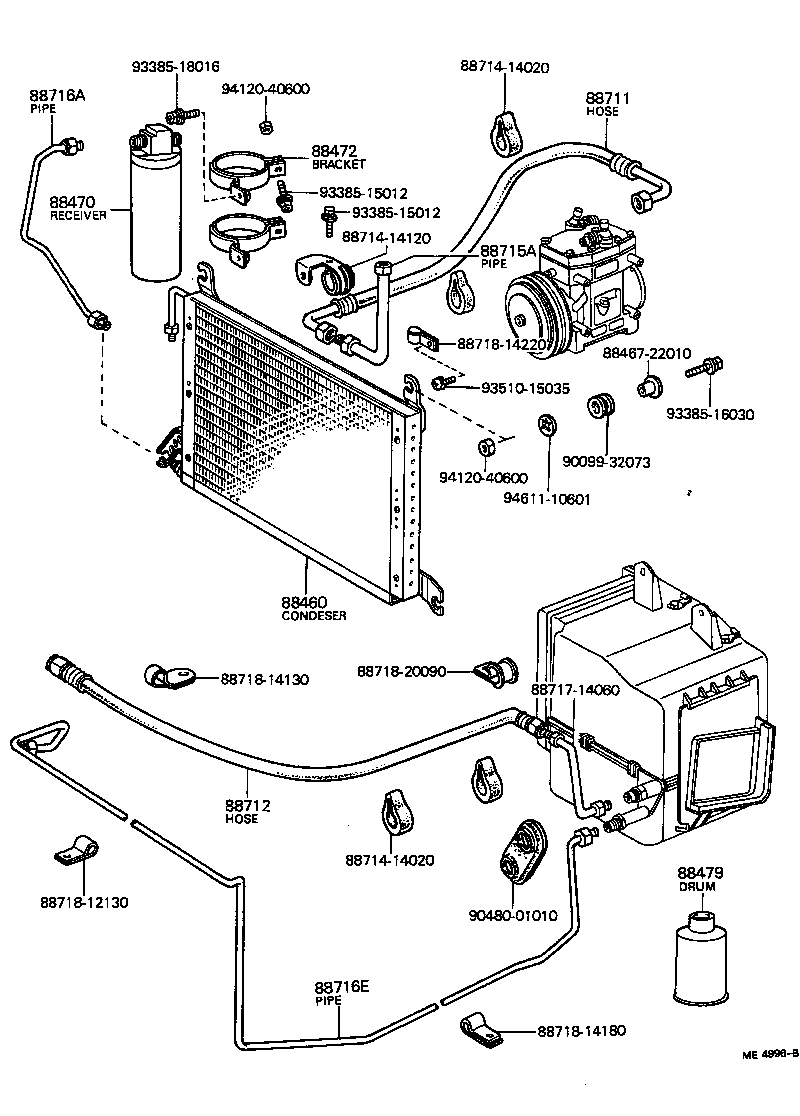

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-14010 |
TA1# |
1 | ||
| 88460-14070 |
TA14 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-10010 |
TA1# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-14010 |
TA1#..RHD |
1 | ||
| 88892-14010 |
TA1#..RHD |
1 | ||
| 88472-14080 |
TA14 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 88434-30010 |
TA1# |
3 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-14100 |
TA14 |
1 | ||
| 88711-14010 |
TA1# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-14210 |
TA14..RHD |
1 | ||
| 88712-14010 |
TA1#..RHD |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-14030 |
TA14 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-14010 |
TA1#..RHD |
1 | ||
| 88716-14260 |
TA14 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-14020 |
TA1#..RHD |
1 | ||
| 88716-14310 |
TA14 |
1 | ||
| Common parts | ||||
| 88467-22010 | ||||
| 88714-14020 | ||||
| 88717-14060 | ||||
| 88718-12130 | ||||
| 88718-14130 | ||||
| 88718-14180 | ||||
| 88718-14220 | ||||
| 88718-20090 | ||||
| 90099-32073 | ||||
| 90480-01010 | ||||
| 93385-15012 | ||||
| 93385-16030 | ||||
| 93385-18016 | ||||
| 93510-15035 | ||||
| 94120-40600 | ||||
| 94611-10601 | ||||
| 99714-14120 | ||||
