TA14R-KRF (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7510-7707)

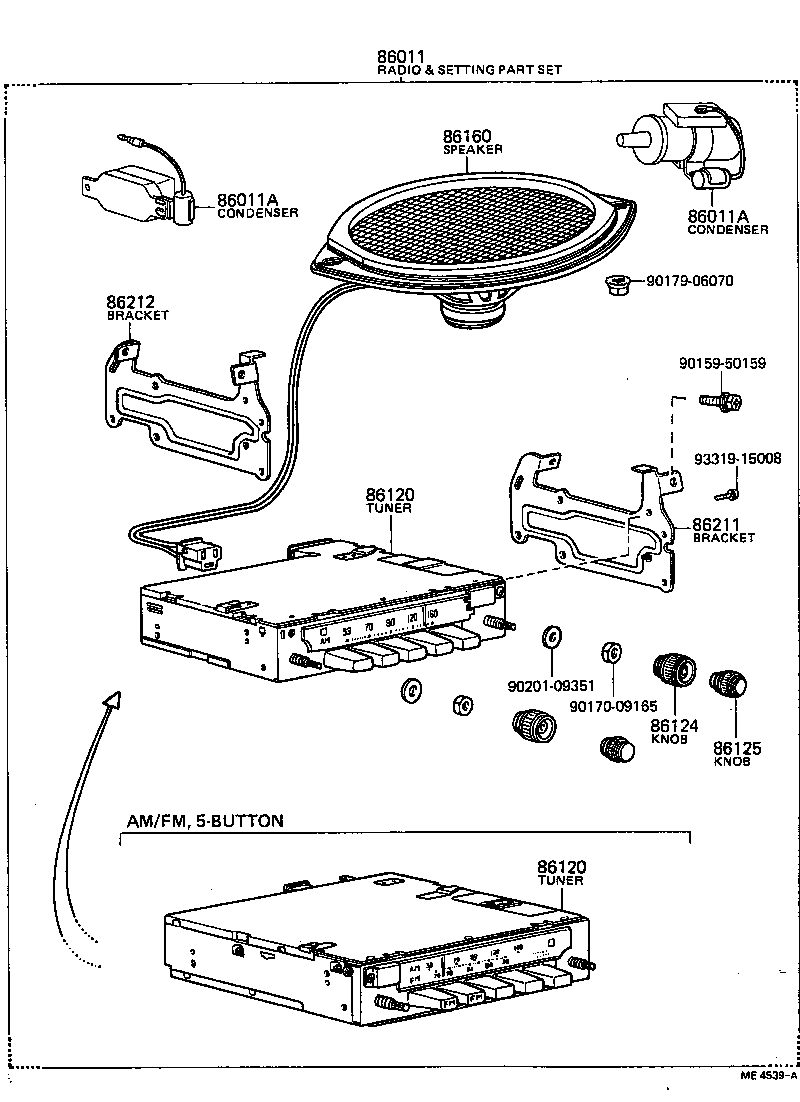

Click highlighted areas on diagram

diagram 86011 86011A 86011A 86120 86120 86124 86125 86160 86211 86212 9015950159 9017009165 9017906070 9020109351 9331915008
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-14030

TA1#

AM/FM,5-BUTTON

 1
86011-14100

TA14

AM/FM,5-BUTTON

 1
86011-14010

TA1#

AM,5-BUTTON

 1
86011-14101

TA14

AM/FM,5-BUTTON

 1
86011-14080

TA14

AM,5-BUTTON

 1
86011A - CONDENSER, RADIO SETTING
90980-04011

TA1#

PLUG CONNECTOR

 1
90980-04007

TA1#

;U; CONNECTOR

 1
86011A - CONDENSER, RADIO SETTING
90980-04011

TA1#

PLUG CONNECTOR

 1
90980-04007

TA1#

;U; CONNECTOR

 1
86120 - RECEIVER ASSY, RADIO
86120-20090

TA1#

AM,5-BUTTON

 1
86120-20150

TA14

AM/FM,5-BUTTON

 1
86120-20130

TA14

AM,5-BUTTON

 1
86120-20151

TA14

AM/FM,5-BUTTON

 1
86120-20110

TA1#

AM/FM,5-BUTTON

 1
86120 - RECEIVER ASSY, RADIO
86120-20090

TA1#

AM,5-BUTTON

 1
86120-20150

TA14

AM/FM,5-BUTTON

 1
86120-20130

TA14

AM,5-BUTTON

 1
86120-20151

TA14

AM/FM,5-BUTTON

 1
86120-20110

TA1#

AM/FM,5-BUTTON

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-20020

TA1#

 2
86124-20040

TA14

 2
86124-20030

TA1#

FM SELECT SW.

 1
86125 - KNOB, RADIO RECEIVER SWITCH
86125-20040

TA14

 2
86125-20020

TA1#

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-14010

TA1#

FOR RADIO

 1
86160-14070

TA14

 1
86211 - BRACKET, RADIO, NO.1
86215-14010

TA1#

 1
86211-14010

TA14

 1
86212 - BRACKET, RADIO, NO.2
86212-14010

TA14

 1
Common parts
90159-50159
90170-09165
90179-06070
90201-09351
93319-15008
