TA14R-KRF (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7510-7707)

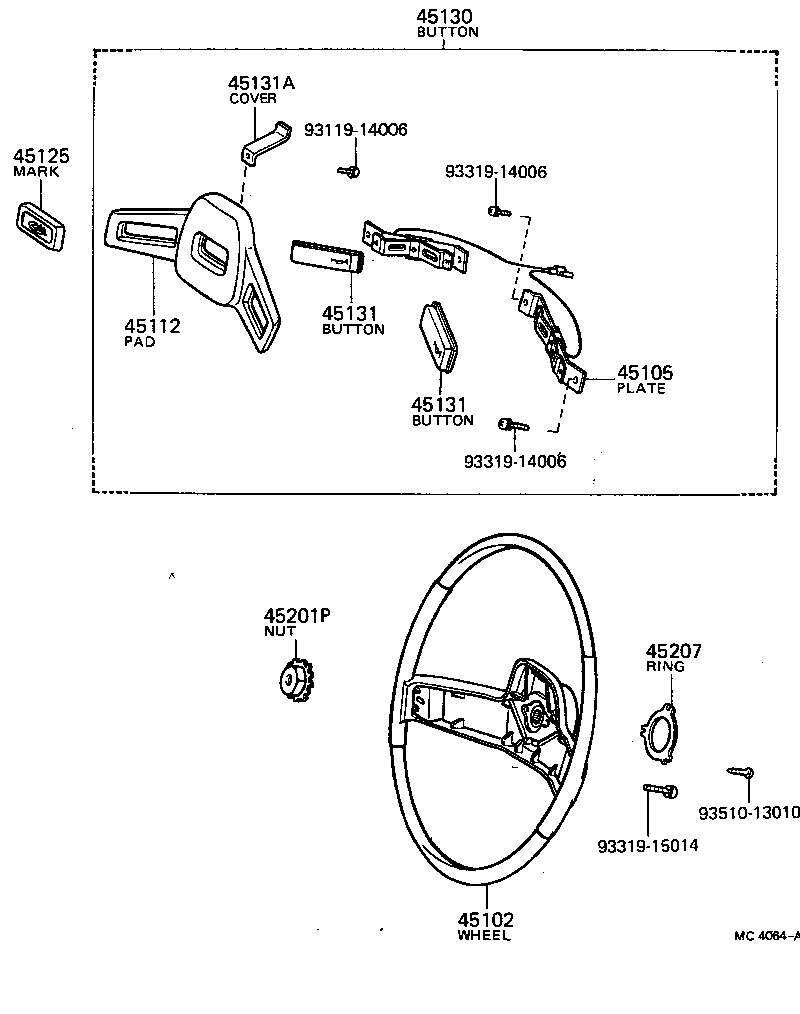

Click highlighted areas on diagram

diagram 45102 45105 45112 45125 45130 45131 45131 45131A 45201P 45207 9311914006 9331914006 9331914006 9331915014 9351013010
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45102-14021

TA14..ST

 1
45102-14060

TA14..STD

 1
45130 - BUTTON ASSY, HORN
45130-14010

TA1#

 1
45201P - NUT, STEERING WHEEL SET
90170-12177

TA1#

 1
45207 - RING, HORN CONTACT
45018-20021

TA1#..RHD

 1
45176-20030

TA14..DLX,STD

 1
45176-20030

TA14

 1
45176-14010

TA14..ST

 1
Common parts
93119-14006
93319-14006
93319-15014
93510-13010

(7012-7707)

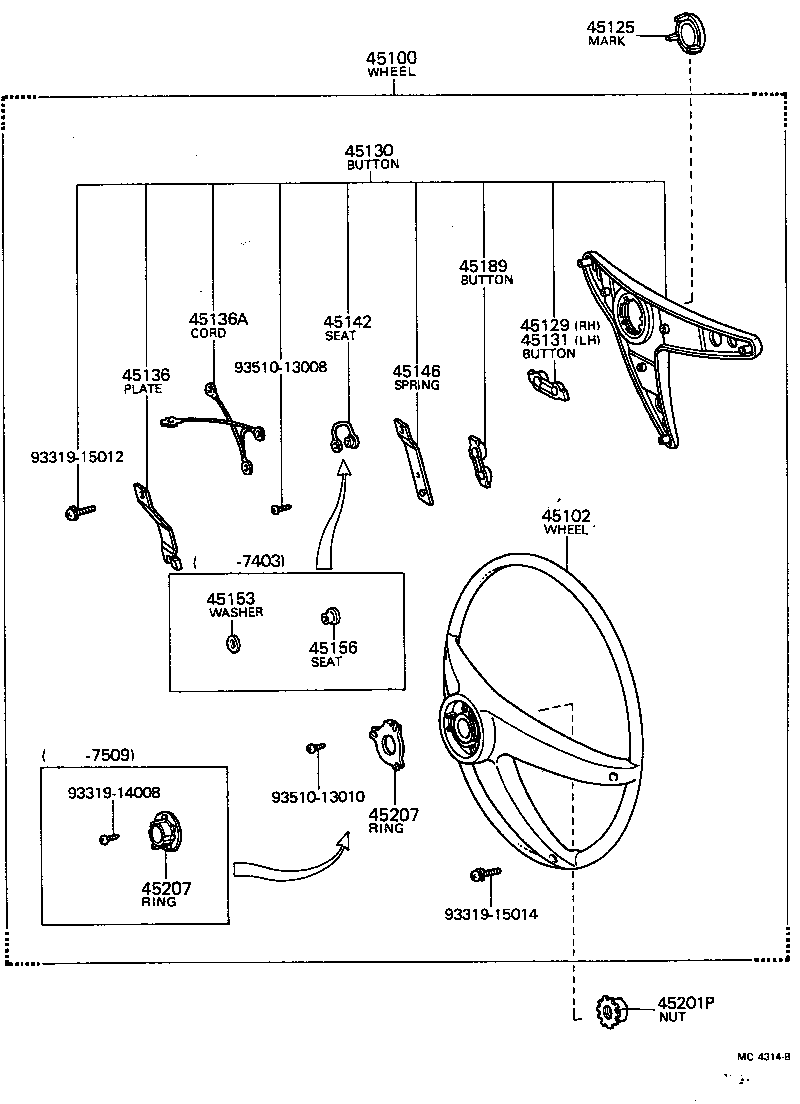

Click highlighted areas on diagram

diagram 45100 45102 45125 45129 45130 45131 45136 45136A 45142 45146 45153 45156 45189 45201P 45207 45207 9331914008 9331915012 9331915014 9351013008 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-14010

TA1#..RHD..STD

 1
45102 - WHEEL SUB-ASSY, STEERING
45102-14021

TA14..ST

 1
45102-14060

TA14..STD

 1
45130 - BUTTON ASSY, HORN
45130-14010

TA1#

 1
45136 - PLATE, HORN BUTTON CONTACT
45136-12030

TA1#

 2
45136A - CORD(FOR HORN CONTACT RING)
90945-02004

TA1#

L=120X2

 1
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-14010

TA14..ST

 3
45146 - SPRING, HORN BUTTON CONTACT
45146-12010

TA1#

 2
45201P - NUT, STEERING WHEEL SET
90170-12177

TA1#

 1
45207 - RING, HORN CONTACT
45018-20021

TA1#..RHD

 1
45176-20030

TA14..DLX,STD

 1
45176-20030

TA14

 1
45176-14010

TA14..ST

 1
45207 - RING, HORN CONTACT
45018-20021

TA1#..RHD

 1
45176-20030

TA14..DLX,STD

 1
45176-20030

TA14

 1
45176-14010

TA14..ST

 1
Common parts
93319-14008
93319-15012
93319-15014
93510-13008
93510-13010

(7012-7707)

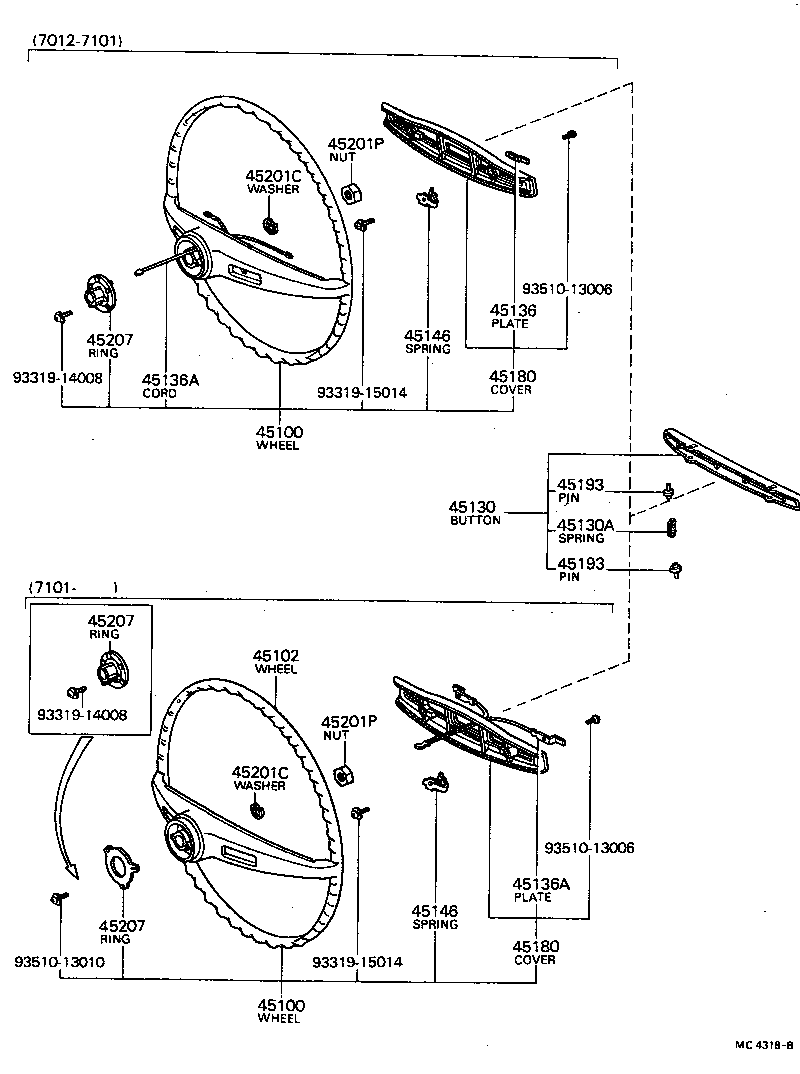

Click highlighted areas on diagram

diagram 45100 45100 45102 45130 45130A 45136 45136A 45136A 45146 45146 45180 45180 45193 45193 45201C 45201C 45201P 45201P 45207 45207 45207 9331914008 9331914008 9331915014 9331915014 9351013006 9351013006 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-14010

TA1#..RHD..STD

 1
45100 - WHEEL ASSY, STEERING
45100-14010

TA1#..RHD..STD

 1
45102 - WHEEL SUB-ASSY, STEERING
45102-14021

TA14..ST

 1
45102-14060

TA14..STD

 1
45130 - BUTTON ASSY, HORN
45130-14010

TA1#

 1
45130A - SPRING, COMPRESSION(FOR HORN BUTTON)
90501-07554

TA1#

 2
45136 - PLATE, HORN BUTTON CONTACT
45136-12030

TA1#

 2
45136A - CORD(FOR HORN CONTACT RING)
90945-02004

TA1#

L=120X2

 1
45136A - CORD(FOR HORN CONTACT RING)
90945-02004

TA1#

L=120X2

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-12010

TA1#

 2
45146 - SPRING, HORN BUTTON CONTACT
45146-12010

TA1#

 2
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-12010

TA1#..STD

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-12010

TA1#..STD

 1
45193 - PIN, HORN BUTTON
45193-12010

TA1#

 4
45193 - PIN, HORN BUTTON
45193-12010

TA1#

 4
45201C - WASHER, SPRING(FOR STEERING WHEEL SET)
90204-12029

TA1#

 1
45201C - WASHER, SPRING(FOR STEERING WHEEL SET)
90204-12029

TA1#

 1
45201P - NUT, STEERING WHEEL SET
90170-12177

TA1#

 1
45201P - NUT, STEERING WHEEL SET
90170-12177

TA1#

 1
45207 - RING, HORN CONTACT
45018-20021

TA1#..RHD

 1
45176-20030

TA14..DLX,STD

 1
45176-20030

TA14

 1
45176-14010

TA14..ST

 1
45207 - RING, HORN CONTACT
45018-20021

TA1#..RHD

 1
45176-20030

TA14..DLX,STD

 1
45176-20030

TA14

 1
45176-14010

TA14..ST

 1
45207 - RING, HORN CONTACT
45018-20021

TA1#..RHD

 1
45176-20030

TA14..DLX,STD

 1
45176-20030

TA14

 1
45176-14010

TA14..ST

 1
Common parts
93319-14008
93319-15014
93510-13006
93510-13010
