TA14R-KD (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7510-7707)

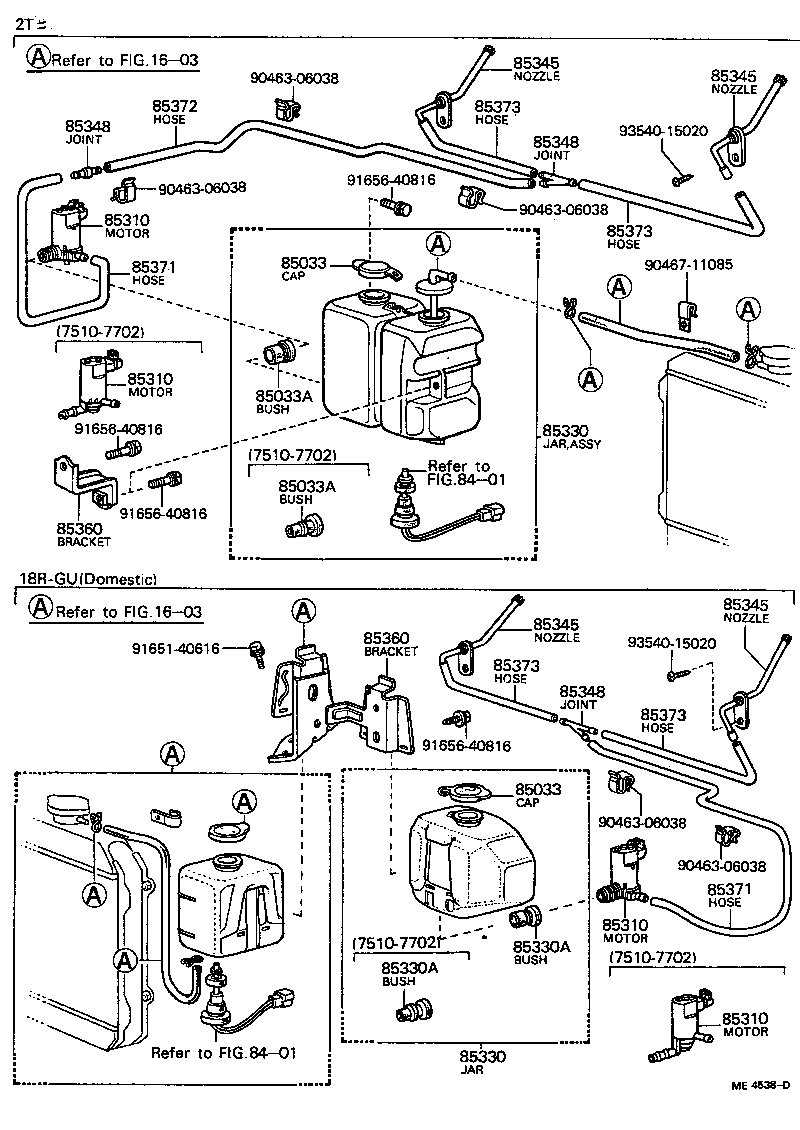

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-20020 |
TA14 |
1 | ||
| 85033-20070 |
TA1# |
1 | ||
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-20020 |
TA14 |
1 | ||
| 85033-20070 |
TA1# |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-12020 |
TA1# |
1 | ||
| 85310-20100 |
TA14 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-12020 |
TA1# |
1 | ||
| 85310-20100 |
TA14 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-12020 |
TA1# |
1 | ||
| 85310-20100 |
TA14 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-12020 |
TA1# |
1 | ||
| 85310-20100 |
TA14 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-14051 |
TA14 |
1 | ||
| 85330-14050 |
TA14 |
1 | ||
| 85330-12020 |
TA1# |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-14051 |
TA14 |
1 | ||
| 85330-14050 |
TA14 |
1 | ||
| 85330-12020 |
TA1# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
TA14 |
1 | ||
| 90099-32057 |
TA1# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
TA14 |
1 | ||
| 90099-32057 |
TA1# |
1 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85341-14020 |
TA14 |
2 | ||
| 85341-20070 |
TA1# |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85341-14020 |
TA14 |
2 | ||
| 85341-20070 |
TA1# |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85341-14020 |
TA14 |
2 | ||
| 85341-20070 |
TA1# |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85341-14020 |
TA14 |
2 | ||
| 85341-20070 |
TA1# |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-87201 |
TA14 2 WAY TYPE |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-87201 |
TA14 2 WAY TYPE |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-87201 |
TA14 2 WAY TYPE |
1 | ||
| 85360 - BRACKET ASSY, WINDSHIELD WASHER | ||||
| 85361-14020 |
TA14 |
1 | ||
| 85360 - BRACKET ASSY, WINDSHIELD WASHER | ||||
| 85361-14020 |
TA14 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-06286 |
TA1# *H,L=400 |
1 | ||
| 90446-06286 |
TA14 *H,L=400 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-06286 |
TA1# *H,L=400 |
1 | ||
| 90446-06286 |
TA14 *H,L=400 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-06279 |
TA14 L=1600 |
1 | ||
| 90099-33271 |
TA14 L=1700 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06341 |
TA14 *H,L=280 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06341 |
TA14 *H,L=280 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06341 |
TA14 *H,L=280 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06341 |
TA14 *H,L=280 |
2 | ||
| Common parts | ||||
| 90463-06038 | ||||
| 90467-11085 | ||||
| 91651-40616 | ||||
| 91656-40816 | ||||
| 93540-15020 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8401 | ||||
