TA14R-HDF (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7510-7707)RHD..DLX,STD

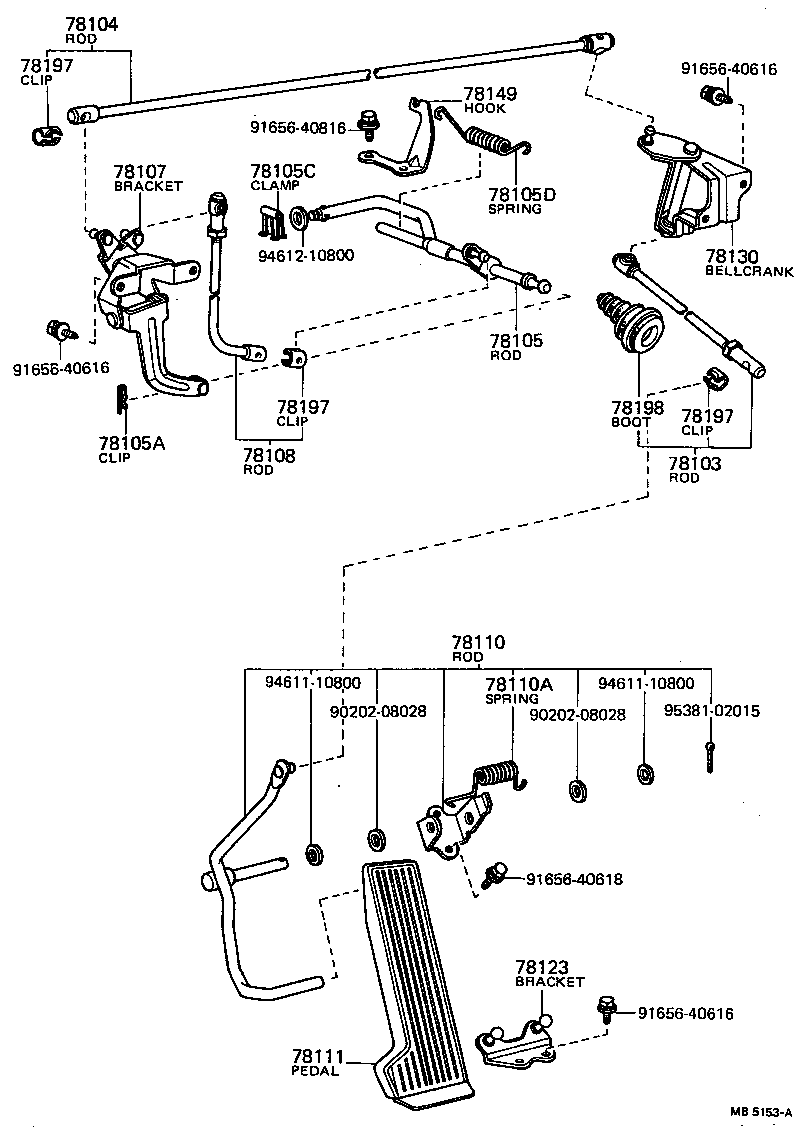

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1 | ||||
| 78103-14901 |
TA1#..RHD |
1 | ||
| 78103-14905 |
TA14..RHD |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-14010 |
TA1#..RHD L=116 |
1 | ||
| 78104-14080 |
TA14..RHD |
1 | ||
| 78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3 | ||||
| 78106-14010 |
TA14..RHD..(DLX,STD) |
1 | ||
| 78105A - CLIP (FOR ACCELERATOR TORQUE ROD) | ||||
| 90468-16012 |
TA14 |
1 | ||
| 90468-12057 |
TA1#..RHD |
1 | ||
| 78105C - CLAMP (FOR ACCELERATOR TORQUE ROD) | ||||
| 90463-03110 |
TA1#..DLX,STD |
1 | ||
| 78105D - SPRING (FOR ACCELERATOR TORQUE ROD) | ||||
| 90508-14381 |
TA14..DLX,STD |
1 | ||
| 78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD | ||||
| 78170-14010 |
TA14..RHD..(DLX,STD) |
1 | ||
| 78107-14010 |
TA1#..RHD |
1 | ||
| 78108 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4 | ||||
| 78105-14180 |
TA14..RHD..(DLX,STD) |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78110-14010 |
TA1#..RHD |
1 | ||
| 78120-14010 |
TA14..RHD..(DLX,STD) |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-20073 |
TA1#..RHD |
1 | ||
| 90508-29001 |
TA14..RHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-14010 |
TA1#..RHD |
1 | ||
| 78123 - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 78114-14010 |
TA14..RHD |
1 | ||
| 78123-14010 |
TA1#..RHD |
1 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78015-14010 |
TA14..RHD |
1 | ||
| 78149 - HOOK, ACCELERATOR TORQUE ROD SPRING | ||||
| 78149-20040 |
TA14..DLX,STD |
1 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
TA1# |
6 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
TA1# |
6 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
TA1# |
6 | ||
| 78198 - BOOT, ACCELERATOR CONNECTING ROD | ||||
| 78199-14010 |
TA1#..RHD |
1 | ||
| Common parts | ||||
| 90202-08028 | ||||
| 91656-40616 | ||||
| 91656-40618 | ||||
| 91656-40816 | ||||
| 94611-10800 | ||||
| 94612-10800 | ||||
| 95381-02015 | ||||
