TA14R-HDF (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7510-7707)

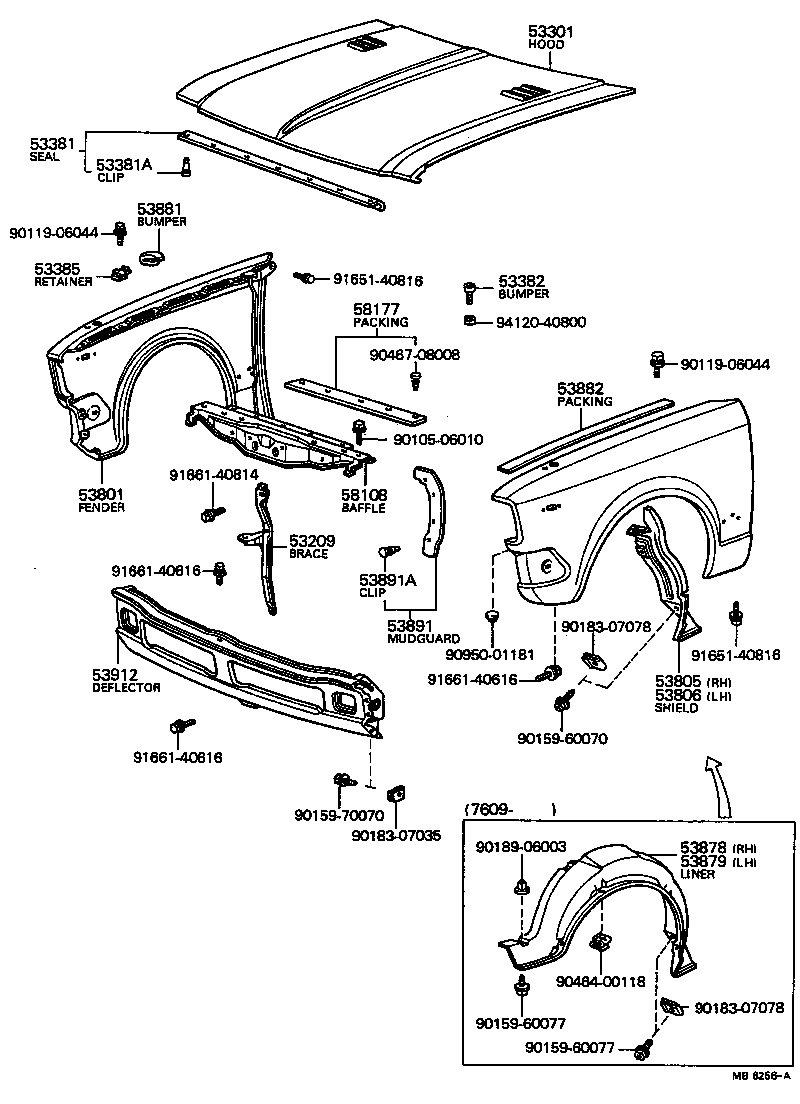

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53209 - BRACE SUB-ASSY, HOOD LOCK | ||||
| 53208-14040 |
TA14 |
1 | ||
| 53217-14010 |
TA1# |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-14010 |
TA1# |
1 | ||
| 53301-14012 |
TA14 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-14901 |
TA1# |
1 | ||
| 53381-14011 |
TA14 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08008 |
TA14 |
7 | ||
| 90467-07050 |
TA14 |
7 | ||
| 90467-07050 |
TA1# |
9 | ||
| 53382 - BUMPER, HOOD, FRONT | ||||
| 53382-20011 |
TA1# |
2 | ||
| 53385 - RETAINER, HOOD, BUMPER | ||||
| 53385-14010 |
TA1# RH. |
2 | ||
| 53386-14010 |
TA1# LH. |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-14010 |
TA1# W/MIRROR HOLE |
1 | ||
| 53801-14011 |
TA14 W/MIRROR HOLE |
1 | ||
| 53801-14031 |
TA14 L/MIRROR HOLE |
1 | ||
| 53801-14020 |
TA1# L/MIRROR HOLE |
1 | ||
| 53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH | ||||
| 53805-14010 |
TA1# |
1 | ||
| 53807-14040 |
TA14 |
1 | ||
| 53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH | ||||
| 53808-14040 |
TA14 |
1 | ||
| 53806-14010 |
TA1# |
1 | ||
| 53878 - LINER, FRONT FENDER, RH | ||||
| 53875-14020 |
TA14 |
1 | ||
| 53879 - LINER, FRONT FENDER, LH | ||||
| 53876-14020 |
TA14 |
1 | ||
| 53881 - BUMPER, FENDER TO HOOD | ||||
| 53384-14010 |
TA1# |
4 | ||
| 53882 - PACKING, FRONT FENDER MAIN | ||||
| 53882-14010 |
TA1# |
2 | ||
| 53882-14040 |
TA14 |
2 | ||
| 53882-14011 |
TA14 |
2 | ||
| 53882-20040 |
TA14 |
2 | ||
| 53891 - MUDGUARD, FRONT FENDER TO SIDE BAFFLE | ||||
| 53891-14011 |
TA14 RH. |
1 | ||
| 53891-14010 |
TA1# |
2 | ||
| 53892-14010 |
TA14 LH. |
1 | ||
| 53891A - CLIP(FOR FRONT FENDER MUDGUARD) | ||||
| 90467-07050 |
TA14 |
8 | ||
| 90467-08008 |
TA14 |
8 | ||
| 53912 - DEFLECTOR, FRONT BUMPER STONE | ||||
| 53911-14010 |
TA1# |
1 | ||
| 53901-14060 |
TA14 |
1 | ||
| 58108 - BAFFLE SUB-ASSY, RADIATOR UPPER | ||||
| 53209-14010 |
TA1# |
1 | ||
| 53216-14012 |
TA14 |
1 | ||
| 58177 - PACKING, RADIATOR BAFFLE | ||||
| 53293-14010 |
TA14 FOR COOLER |
1 | ||
| 53293-14010 |
TA14 |
1 | ||
| Common parts | ||||
| 90105-06010 | ||||
| 90119-06044 | ||||
| 90159-60070 | ||||
| 90159-60077 | ||||
| 90159-70070 | ||||
| 90183-07035 | ||||
| 90183-07078 | ||||
| 90189-06003 | ||||
| 90464-00118 | ||||
| 90467-08008 | ||||
| 90950-01181 | ||||
| 91651-40816 | ||||
| 91661-40616 | ||||
| 91661-40814 | ||||
| 94120-40800 | ||||
