TA14R-HDF (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7510-7707)3FC

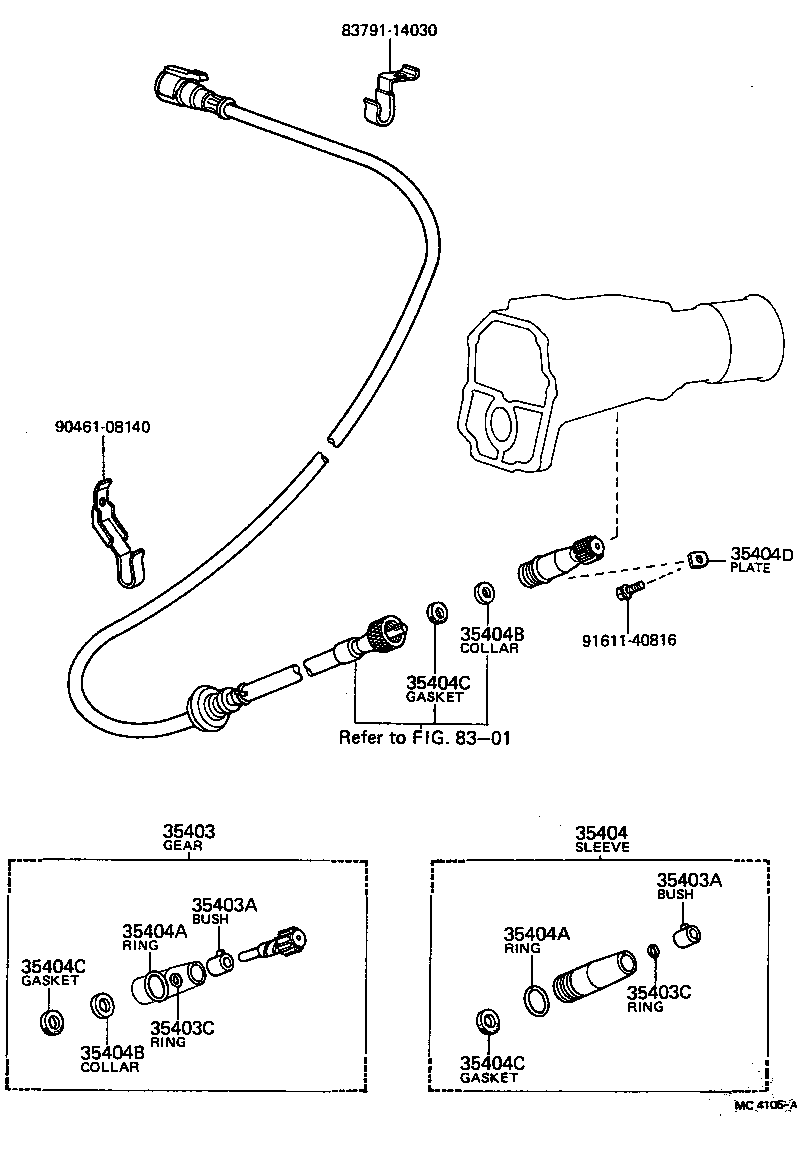

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM) | ||||
| 33403-39036 |
TA12,14..3FC N=17 |
1 | ||
| 35403A - BUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90386-09078 |
TA12,14..3FC |
1 | ||
| 35403A - BUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90386-09078 |
TA12,14..3FC |
1 | ||
| 35403C - RING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT) | ||||
| 90301-09017 |
TA12,14..3FC |
1 | ||
| 35403C - RING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT) | ||||
| 90301-09017 |
TA12,14..3FC |
1 | ||
| 35404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM) | ||||
| 33404-39016 |
TA12,14..3FC |
1 | ||
| 35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
TA12,14..3FC |
1 | ||
| 35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
TA12,14..3FC |
1 | ||
| 35404B - COLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (ATM) | ||||
| 90201-07069 |
TA12,14..3FC |
1 | ||
| 35404B - COLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (ATM) | ||||
| 90201-07069 |
TA12,14..3FC |
1 | ||
| 35404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (ATM) | ||||
| 90303-06017 |
TA12,14..3FC |
1 | ||
| 35404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (ATM) | ||||
| 90303-06017 |
TA12,14..3FC |
1 | ||
| 35404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (ATM) | ||||
| 90303-06017 |
TA12,14..3FC |
1 | ||
| 35404D - PLATE, SPEEDOMETER SLEEVE LOCK (ATM) | ||||
| 33485-30010 |
TA12,14..3FC |
1 | ||
| Common parts | ||||
| 83791-14030 | ||||
| 90461-08140 | ||||
| 91611-40816 | ||||
| Linked diagrams | ||||
| 8301 | ||||
