TA14R-HDF (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7510-7707)3FC

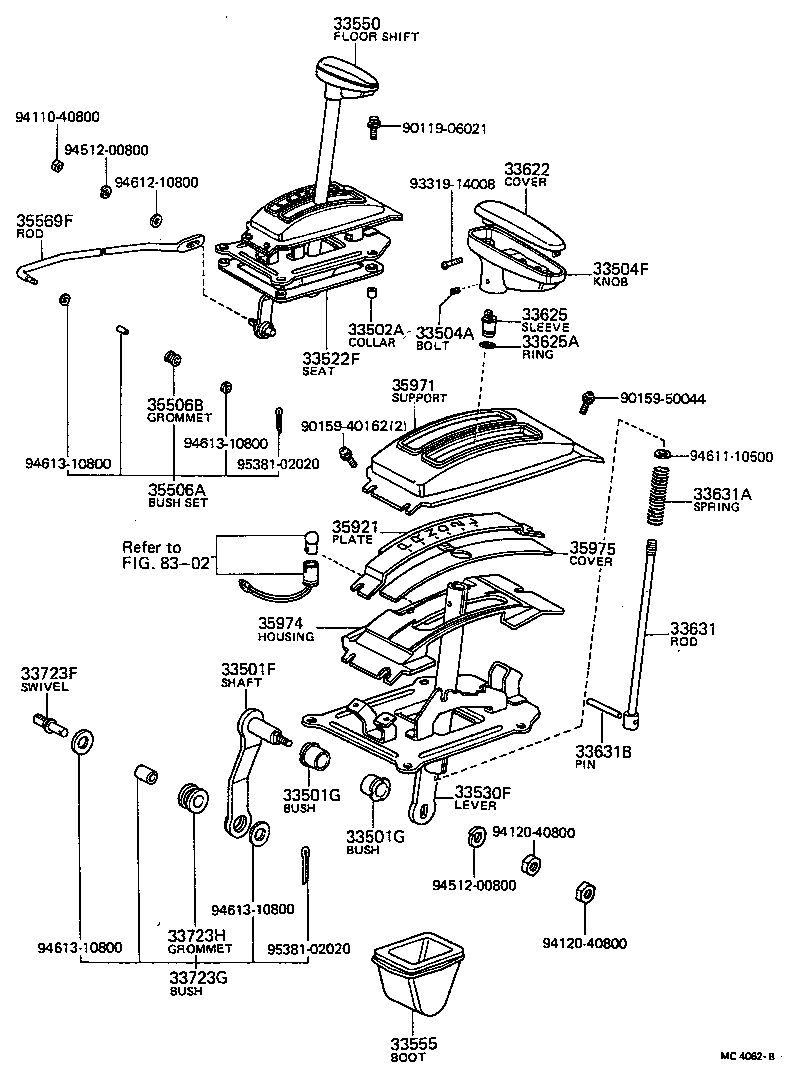

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT) | ||||
| 33501-14042 |
TA14..3FC |
1 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-16045 |
TA14..3FC |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-16045 |
TA14..3FC |
2 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
TA12,14..3FC OD=8.8 |
4 | ||
| 33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90113-05034 |
TA12,14..3FC |
2 | ||
| 33522F - SEAT, SHIFT LEVER PLATE (FOR FLOOR SHIFT) | ||||
| 33522-14012 |
TA14..3FC |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33503-14041 |
TA14..RHD..3FC |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-14015 |
TA14..RHD..3FC |
1 | ||
| 33550-14016 |
TA14..RHD..3FC |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-14021 |
TA14..3FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-22011 |
TA12,14..3FC |
1 | ||
| 33625A - RING, O(FOR SHIFT LEVER KNOB SLEEVE) | ||||
| 90301-06083 |
TA12,14..3FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-14011 |
TA14..3FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-10337 |
TA12,14..3FC WD=1.0,CW=24 |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90254-04017 |
TA12,14..3FC |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
TA12,14..3FC |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
TA12,14..3FC |
2 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
TA12,14..3FC |
1 | ||
| 35506A - BUSH (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90999-99017 |
TA12,14..3FC |
1 | ||
| 35506B - GROMMET (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90480-17177 |
TA12,14..3FC |
1 | ||
| 35569F - ROD, TRANSMISSION CONTROL, 1ST (FOR FLOOR SHIFT) | ||||
| 33675-14022 |
TA14..3FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-14022 |
TA14..RHD..3FC |
1 | ||
| 35971 - SUPPORT, POSITION INDICATOR | ||||
| 35971-14011 |
TA14..RHD..3FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-14011 |
TA14..RHD..3FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-14030 |
TA14..3FC |
1 | ||
| Common parts | ||||
| 90119-06021 | ||||
| 90159-40162 | ||||
| 90159-50044 | ||||
| 93319-14008 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94611-10500 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
| Linked diagrams | ||||
| 8302 | ||||
