TA14R-HDF (1975)
Toyota Carina

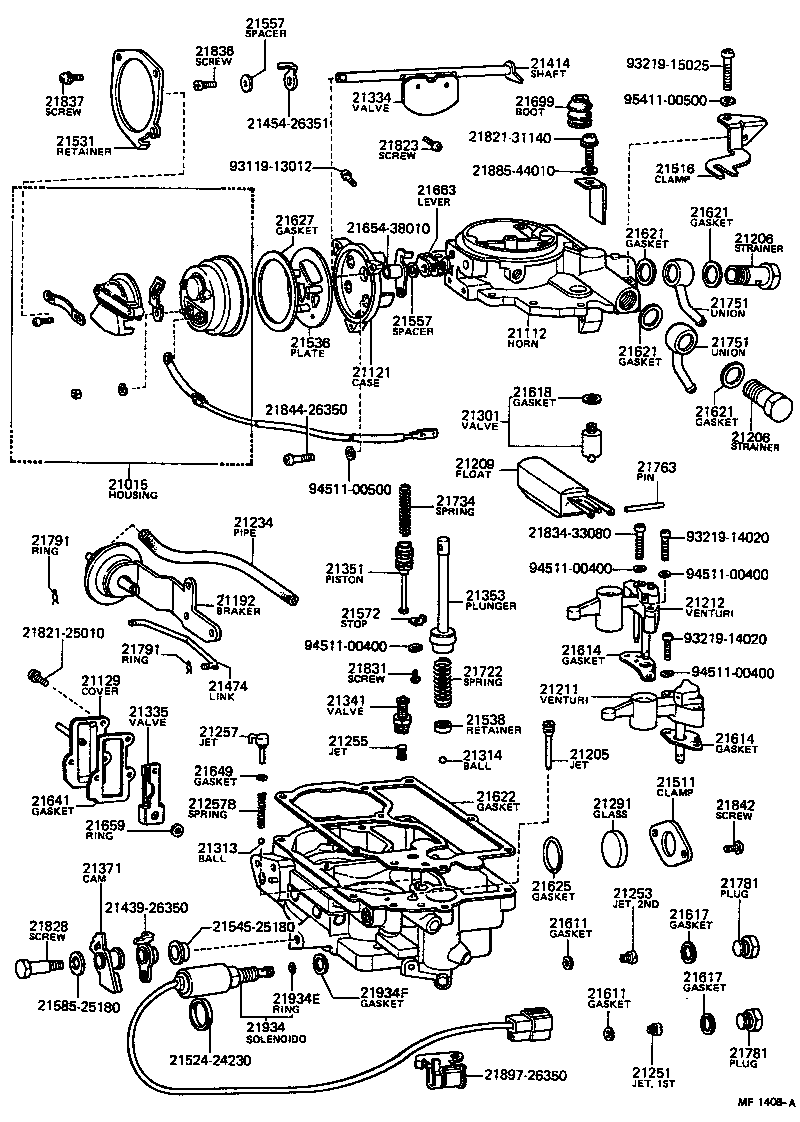

(7510-7707)2T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21015 - HOUSING SUB-ASSY, COIL | ||||
| 21015-26400 |
2T..TA14 |
1 | ||
| 21015-40012 |
T,2T..TA1# |
1 | ||
| 21015-25181 |
2T..TA14 |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-26350 |
2T..TA14 |
1 | ||
| 21112-25010 |
T,2T..TA1# |
1 | ||
| 21121 - CASE, THERMOSTAT | ||||
| 21121-34061 |
T,2T..TA1# |
1 | ||
| 21121-38010 |
2T..TA14 |
1 | ||
| 21129 - COVER(FOR THERMOSTATIC VALVE) | ||||
| 21129-38010 |
2T..TA14 |
1 | ||
| 21129-24030 |
T,2T#..TA1# |
2 | ||
| 21192 - BREAKER | ||||
| 21192-25181 |
2T..TA14 |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-33010 |
T,2T..TA1# ID=0.50 |
1 | ||
| 90999-44047 |
2T..TA14 ID=0.47 |
1 | ||
| 21206 - STRAINER SUB-ASSY | ||||
| 21294-33080 |
T,2T..TA1# |
2 | ||
| 21206 - STRAINER SUB-ASSY | ||||
| 21294-33080 |
T,2T..TA1# |
2 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-33010 |
T,2T..TA1# |
2 | ||
| 21211 - VENTURI, 1ST SMALL | ||||
| 21211-25180 |
2T..TA14 |
1 | ||
| 21212 - VENTURI, 2ND SMALL | ||||
| 21212-25180 |
2T..TA14 |
1 | ||
| 21234 - PIPE OR HOSE | ||||
| 21234-41111 |
2T..TA14 |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41105 |
2T..TA14 ID=1.05 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42150 |
2T..TA14 ID=1.50 |
1 | ||
| 21255 - JET, POWER | ||||
| 90999-43060 |
2T..TA14 ID=0.60 |
1 | ||
| 21255-25010 |
T,2T..TA1# ID=0.53 |
1 | ||
| 21257 - JET, PUMP | ||||
| 21257-25180 |
2T..TA14 |
1 | ||
| 21257B - SPRING(FOR PUMP JET) | ||||
| 21864-38010 |
2T..TA14 |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-33010 |
T,2T#..TA1# |
2 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-33010 |
T,2T..TA1# |
1 | ||
| 21301-26350 |
2T..TA14 |
1 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-11020 |
T,2T#..TA1# |
2 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-11020 |
2T..TA14 |
1 | ||
| 21314-60010 |
T,2T#..TA1# |
2 | ||
| 21334 - VALVE, CHOKE | ||||
| 21334-26350 |
2T..TA14 |
1 | ||
| 21334-33080 |
T,2T#..TA1# |
2 | ||
| 21335 - VALVE, THERMOSTATIC | ||||
| 21335-25010 |
T,2T..TA1# |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
T,2T#..TA1# |
2 | ||
| 21351 - PISTON, POWER | ||||
| 21708-22010 |
T,2T..TA1# |
2 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-33010 |
T,2T#..TA1# |
2 | ||
| 21371 - CAM, 1ST IDLE | ||||
| 21371-25180 |
2T..TA14 |
1 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21414-33080 |
T,2T..TA1# |
1 | ||
| 21414-26351 |
2T..TA14 |
1 | ||
| 21474 - LINK, CONNECTING | ||||
| 21474-31011 |
T,2T..TA1# |
1 | ||
| 21474-26350 |
2T..TA14 |
1 | ||
| 21511 - CLAMP, LEVEL GAGE | ||||
| 21511-33010 |
T,2T#..TA1# |
2 | ||
| 21516 - CLAMP, CONNECTOR | ||||
| 21574-26400 |
2T..TA14 |
1 | ||
| 21531 - RETAINER, COIL HOUSING | ||||
| 21531-26350 |
2T..TA14 |
1 | ||
| 21531-30010 |
T,2T..TA1# |
3 | ||
| 21536 - PLATE, COIL HOUSING | ||||
| 21536-25180 |
2T#..TA14 |
1 | ||
| 21536-40010 |
T,2T..TA1# |
1 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
T,2T#..TA1# |
2 | ||
| 21557 - SPACER(FOR 1ST IDLE CAM) | ||||
| 21557-25010 |
T,2T#..TA1# |
2 | ||
| 21557-60200 |
2T#..TA14 T=4.7,ID=8 |
2 | ||
| 21557-26350 |
2T..TA14 T=0.5,ID=6 |
1 | ||
| 21557 - SPACER(FOR 1ST IDLE CAM) | ||||
| 21557-25010 |
T,2T#..TA1# |
2 | ||
| 21557-60200 |
2T#..TA14 T=4.7,ID=8 |
2 | ||
| 21557-26350 |
2T..TA14 T=0.5,ID=6 |
1 | ||
| 21572 - STOP, POWER PISTON | ||||
| 21572-33080 |
T,2T#..TA1# |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
T,2T#..TA1# |
4 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
T,2T#..TA1# |
4 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-33010 |
T,2T#..TA1# 1ST. |
2 | ||
| 21614-33080 |
T,2T#..TA1# 2ND. |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-33010 |
T,2T#..TA1# 1ST. |
2 | ||
| 21614-33080 |
T,2T#..TA1# 2ND. |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
T,2T#..TA1# |
4 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
T,2T#..TA1# |
4 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-60010 |
T,2T..TA1# |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21619-22010 |
T,2T..TA1# ID=11,T=1.0 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21619-22010 |
T,2T..TA1# ID=11,T=1.0 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21619-22010 |
T,2T..TA1# ID=11,T=1.0 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21619-22010 |
T,2T..TA1# ID=11,T=1.0 |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-33080 |
T,2T..TA1# |
2 | ||
| 21622-26350 |
2T..TA14 |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21641-33040 |
T,2T#..TA1# |
2 | ||
| 21627 - GASKET, COIL HOUSING | ||||
| 21627-50010 |
T,2T..TA1# |
1 | ||
| 21641 - GASKET(FOR THERMOSTATIC VALVE COVER) | ||||
| 21641-23012 |
2T..TA14 |
1 | ||
| 21641-23010 |
T,2T#..TA1# |
2 | ||
| 21649 - GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER) | ||||
| 21641-33011 |
T,2T#..TA1# |
2 | ||
| 21655-11040 |
2T..TA14 |
1 | ||
| 21659 - RING, O(FOR THERMOSTATIC VALVE) | ||||
| 23532-40010 |
T,2T#..TA1# |
2 | ||
| 21663 - LEVER, CHOKE CONNECTOR SHAFT, NO.2 | ||||
| 21666-26350 |
2T..TA14 |
1 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-21061 |
T,2T#..TA1# |
2 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
T,2T#..TA1# |
2 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-26400 |
2T..TA14 FOR FUEL RETURN |
1 | ||
| 90404-13105 |
T,2T..TA1# OUTLET |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-26400 |
2T..TA14 FOR FUEL RETURN |
1 | ||
| 90404-13105 |
T,2T..TA1# OUTLET |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-29270 |
T,2T#..TA1# |
2 | ||
| 21763-26350 |
2T..TA14 |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-30020 |
T,2T#..TA1# |
4 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-30020 |
T,2T#..TA1# |
4 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
T,2T#..TA1# |
4 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
T,2T#..TA1# |
4 | ||
| 21823 - SCREW, CHOKE, VALVE SET | ||||
| 21821-34031 |
2T..TA14 |
2 | ||
| 21822-10011 |
T,2T#..TA1# |
4 | ||
| 21828 - SCREW, 1ST IDLE SET | ||||
| 21845-26350 |
2T..TA14 |
1 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21842-33010 |
T,2T#..TA1# |
8 | ||
| 21836 - SCREW, THERMOSTAT CASE SET | ||||
| 21832-44010 |
T,2T..TA1# |
1 | ||
| 21832-38010 |
2T#..TA14 |
1 | ||
| 21837 - SCREW, COIL HOUSING SET | ||||
| 21821-25010 |
2T..TA14 |
3 | ||
| 21842-33010 |
T,2T..TA1# |
3 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
T,2T#..TA1# |
4 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-25180 |
2T..TA14 |
1 | ||
| Common parts | ||||
| 21439-26350 | ||||
| 21454-26351 | ||||
| 21524-24230 | ||||
| 21545-25180 | ||||
| 21585-25180 | ||||
| 21654-38010 | ||||
| 21821-25010 | ||||
| 21821-31140 | ||||
| 21834-33080 | ||||
| 21844-26350 | ||||
| 21885-44010 | ||||
| 21897-26350 | ||||
| 93119-13012 | ||||
| 93219-14020 | ||||
| 93219-15025 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 95411-00500 | ||||

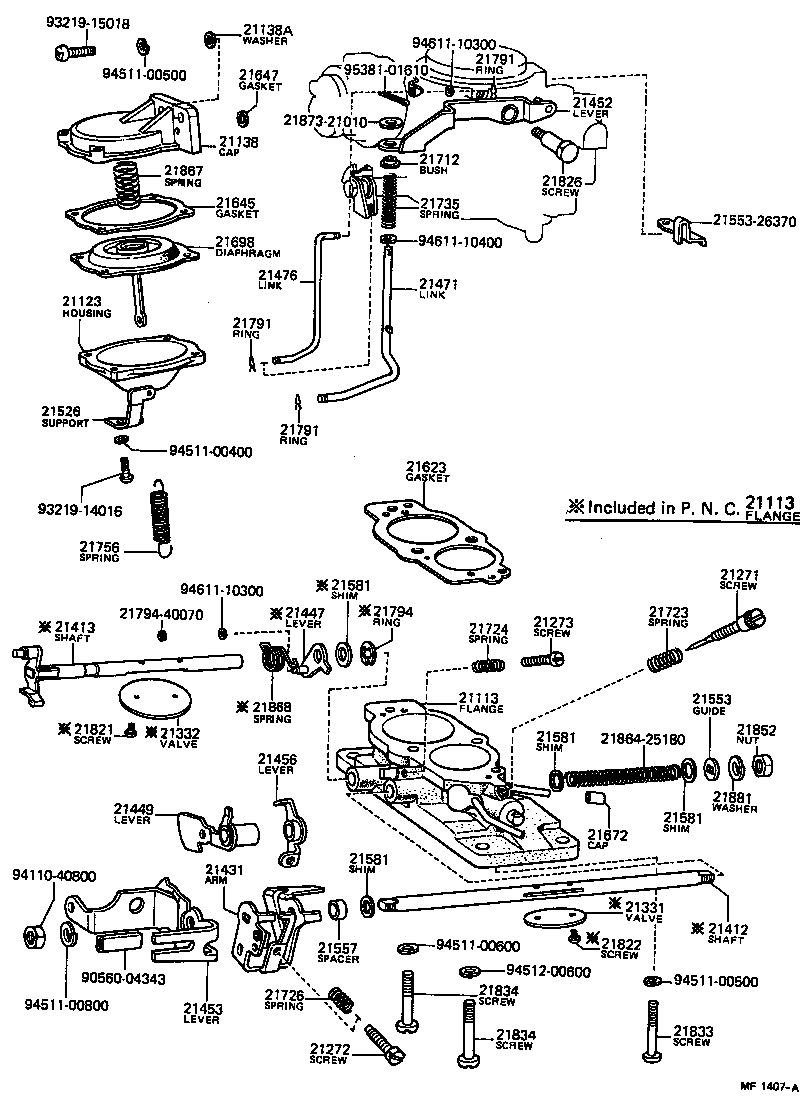

(7510-7707)2T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21113 - FLANGE, CARBURETOR | ||||
| 21103-26480 |
2T..TA14 |
1 | ||
| 21113 - FLANGE, CARBURETOR | ||||
| 21103-26480 |
2T..TA14 |
1 | ||
| 21123 - HOUSING, DIAPHRAGM | ||||
| 21123-33080 |
T,2T#..TA1# |
2 | ||
| 21138 - CAP, DIAPHRAGM | ||||
| 21138-26350 |
2T..TA14 |
1 | ||
| 21138A - WASHER(FOR DIAPHRAGM CAP SET) | ||||
| 21885-44010 |
T,2T#..TA1# |
4 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-26440 |
2T..TA14 |
1 | ||
| 21271-44010 |
T,2T#..TA1# |
2 | ||
| 21271-25180 |
2T..TA14 |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21814-33010 |
T,2T..TA1# |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21844-33010 |
T,2T#..TA1# |
2 | ||
| 21331 - VALVE, 1ST THROTTLE | ||||
| 21331-33080 |
T,2T#..TA1# |
2 | ||
| 21331-26350 |
2T..TA14 |
1 | ||
| 21332 - VALVE, 2ND THROTTLE | ||||
| 21332-33080 |
T,2T#..TA1# |
2 | ||
| 21412 - SHAFT, 1ST THROTTLE | ||||
| 21412-25010 |
T,2T..TA1# |
2 | ||
| 21412-26352 |
2T..TA14 |
1 | ||
| 21413 - SHAFT, 2ND THROTTLE | ||||
| 21413-33080 |
T,2T#..TA1# |
2 | ||
| 21413-26350 |
2T..TA14 |
1 | ||
| 21431 - ARM, 1ST THROTTLE SHAFT | ||||
| 21431-33080 |
T,2T..TA1# |
1 | ||
| 21431-25180 |
2T..TA14 |
1 | ||
| 21447 - LEVER, DIAPHRAGM | ||||
| 21447-33081 |
T,2T#..TA1# |
2 | ||
| 21449 - LEVER, 2ND KICK | ||||
| 21449-25180 |
2T..TA14 |
1 | ||
| 21449-33080 |
T,2T..TA1# |
1 | ||
| 21452 - LEVER, PUMP | ||||
| 21452-31010 |
T,2T#..TA1# |
2 | ||
| 21452-25180 |
2T..TA14 |
1 | ||
| 21453 - LEVER, 1ST THROTTLE | ||||
| 21453-25240 |
2T..TA14 |
1 | ||
| 21453-25010 |
T,2T..TA1# |
1 | ||
| 21456 - LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1 | ||||
| 21456-33080 |
T,2T..TA1# |
1 | ||
| 21456-26350 |
2T..TA14 |
1 | ||
| 21471 - LINK, PUMP CONNECTING | ||||
| 21471-33010 |
T,2T#..TA1# |
2 | ||
| 21471-25180 |
2T..TA14 |
1 | ||
| 21476 - LINK, 1ST IDLE | ||||
| 21476-26351 |
2T..TA14 |
1 | ||
| 21526 - SUPPORT, BACK SPRING | ||||
| 21526-25010 |
T,2T..TA1# |
1 | ||
| 21526-44100 |
2T#..TA14 |
2 | ||
| 21553 - GUIDE | ||||
| 21553-26400 |
2T..TA14 |
1 | ||
| 21557 - SPACER(FOR 1ST IDLE CAM) | ||||
| 21557-25010 |
T,2T#..TA1# |
2 | ||
| 21557-60200 |
2T#..TA14 T=4.7,ID=8 |
2 | ||
| 21557-26350 |
2T..TA14 T=0.5,ID=6 |
1 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21581-21010 |
T,2T#..TA1# T=0.2 |
1 | ||
| 21583-21010 |
T,2T#..TA1# T=0.6 |
1 | ||
| 21588-21010 |
T,2T#..TA1# T=0.1 |
1 | ||
| 21582-21010 |
T,2T#..TA1# T=0.3 |
1 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21581-21010 |
T,2T#..TA1# T=0.2 |
1 | ||
| 21583-21010 |
T,2T#..TA1# T=0.6 |
1 | ||
| 21588-21010 |
T,2T#..TA1# T=0.1 |
1 | ||
| 21582-21010 |
T,2T#..TA1# T=0.3 |
1 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21581-21010 |
T,2T#..TA1# T=0.2 |
1 | ||
| 21583-21010 |
T,2T#..TA1# T=0.6 |
1 | ||
| 21588-21010 |
T,2T#..TA1# T=0.1 |
1 | ||
| 21582-21010 |
T,2T#..TA1# T=0.3 |
1 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21581-21010 |
T,2T#..TA1# T=0.2 |
1 | ||
| 21583-21010 |
T,2T#..TA1# T=0.6 |
1 | ||
| 21588-21010 |
T,2T#..TA1# T=0.1 |
1 | ||
| 21582-21010 |
T,2T#..TA1# T=0.3 |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-25180 |
2T..TA14 |
1 | ||
| 21623-33081 |
T,2T#..TA1# |
2 | ||
| 21645 - GASKET, DIAPHRAGM, CAP | ||||
| 21645-33080 |
T,2T#..TA1# |
2 | ||
| 21647 - GASKET, DIAPHRAGM HOUSING CAP | ||||
| 21649-33080 |
T,2T#..TA1# |
2 | ||
| 21698 - DIAPHRAGM | ||||
| 21669-33080 |
T,2T#..TA1# |
2 | ||
| 21669-25010 |
2T..TA14 |
1 | ||
| 21712 - BUSH, SLIDING ROD | ||||
| 21712-41080 |
2T..TA14 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
T,2T#..TA1# |
2 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21726-40010 |
T,2T#..TA1# |
2 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21726-40010 |
T,2T..TA1# |
1 | ||
| 21723-21030 |
2T#..TA14 |
2 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-21032 |
2T#..TA12,14 |
2 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21756-33080 |
T,2T#..TA1# |
4 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
T,2T#..TA1# |
4 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
T,2T#..TA1# |
4 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
T,2T#..TA1# |
4 | ||
| 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) | ||||
| 21794-40010 |
T,2T#..TA1# |
4 | ||
| 21821 - SCREW, 2ND THROTTLE VALVE SET | ||||
| 21821-34031 |
T,2T#..TA1# |
4 | ||
| 21822 - SCREW, 1ST THROTTLE VALVE SET | ||||
| 21822-34031 |
T,2T#..TA1# |
4 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31012 |
2T..TA14 |
1 | ||
| 21826-31012 |
T,2T#..TA1# |
2 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-33010 |
T,2T#..TA1# |
4 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-31010 |
T,2T..TA1# L=31.4 |
2 | ||
| 21834-33010 |
T,2T..TA1# |
2 | ||
| 21834-25180 |
2T#..TA14 |
4 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-31010 |
T,2T..TA1# L=31.4 |
2 | ||
| 21834-33010 |
T,2T..TA1# |
2 | ||
| 21834-25180 |
2T#..TA14 |
4 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
T,2T#..TA1# |
2 | ||
| 21867 - SPRING, DIAPHRAGM | ||||
| 21867-26400 |
2T..TA14 |
1 | ||
| 21868 - SPRING, DIAPHRAGM RELIEF | ||||
| 21868-33080 |
2T#..TA14 |
2 | ||
| 21868-33080 |
T,2T#..TA1# |
2 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
T,2T#..TA1# |
2 | ||
| Common parts | ||||
| 21553-26370 | ||||
| 21794-40070 | ||||
| 21864-25180 | ||||
| 21873-21010 | ||||
| 90560-04343 | ||||
| 93219-14016 | ||||
| 93219-15018 | ||||
| 94110-40800 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 94611-10400 | ||||
| 95381-01610 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
