TA14L-MSFB (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7510-7707)

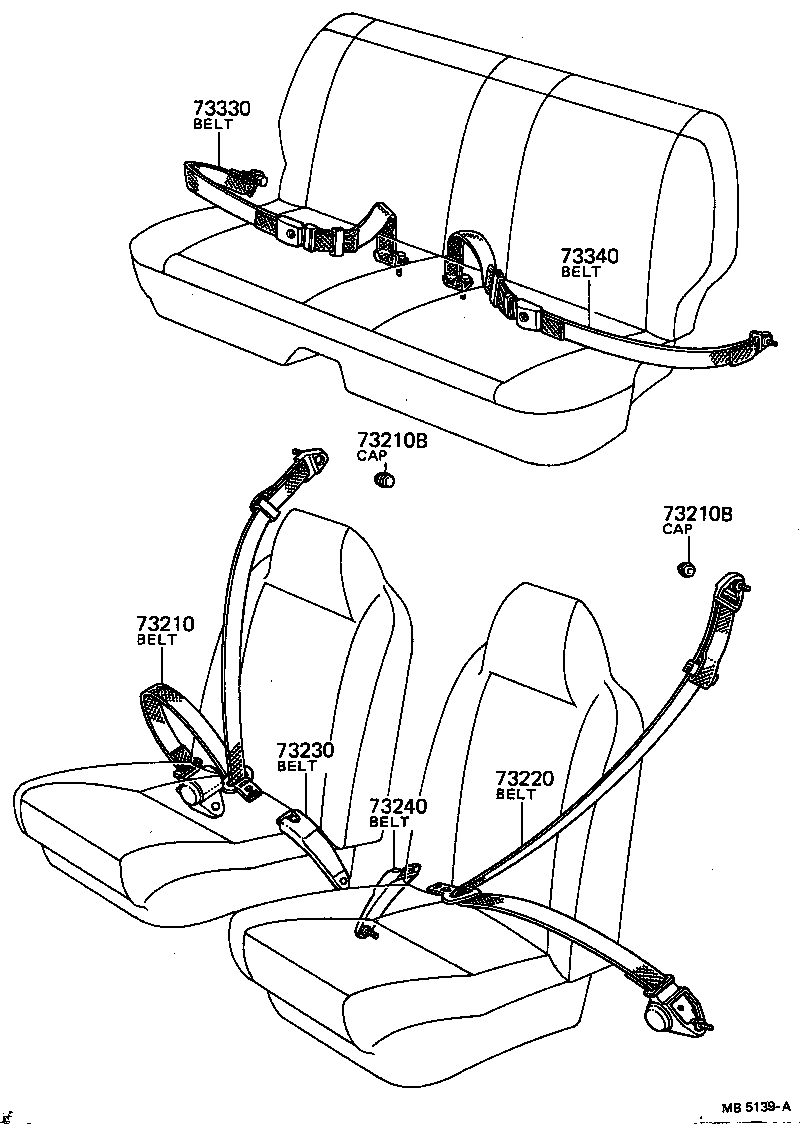

Click highlighted areas on diagram

diagram 73210 73210B 73210B 73220 73230 73240 73330 73340
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1408006

TA14..4D

BROWN,BROWN,TRIM0#,4#

 1
73210-1408001

TA14..4D

BLACK,BLACK,TRIM2#

 1
73210B - CAP (FOR FRONT SEAT OUTER BELT)
73178-1201001

TA14

BLACK,BLACK,TRIM2#

 2
73178-1201006

TA14

BROWN,BROWN,TRIM0#,4#

 2
73210B - CAP (FOR FRONT SEAT OUTER BELT)
73178-1201001

TA14

BLACK,BLACK,TRIM2#

 2
73178-1201006

TA14

BROWN,BROWN,TRIM0#,4#

 2
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-1408006

TA14..4D

BROWN,BROWN,TRIM0#,4#

 1
73210-1408001

TA14..4D

BLACK,BLACK,TRIM2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-14040

TA14

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-14040

TA14

 1
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
71930-1401001

TA1#

BLACK,BLACK,TRIM2#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
71930-1401001

TA1#

BLACK,BLACK,TRIM2#

 1
