TA14L-MSFB (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2TB
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7510-7707)

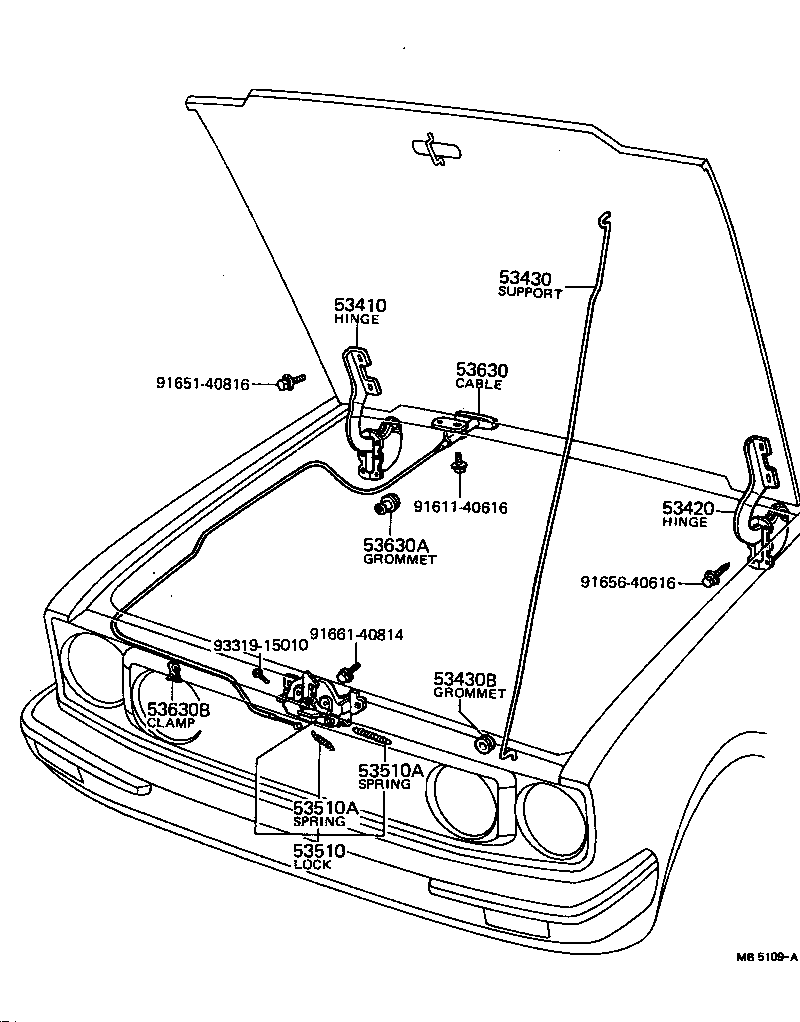

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-20030 |
TA1# |
1 | ||
| 53410-14030 |
TA14 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-20030 |
TA1# |
1 | ||
| 53410-14030 |
TA14 |
1 | ||
| 53430 - SUPPORT ASSY, HOOD | ||||
| 53431-14010 |
TA1# |
1 | ||
| 53451-14010 |
TA14 |
1 | ||
| 53430B - GROMMET(FOR HOOD SUPPORT) | ||||
| 90480-15296 |
TA1# |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-29065 |
TA1#..LHD |
1 | ||
| 53510-14060 |
TA14..LHD |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12262 |
TA1# |
1 | ||
| 90506-10486 |
TA14 L=35 |
1 | ||
| 90506-10487 |
TA14 L=43 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12262 |
TA1# |
1 | ||
| 90506-10486 |
TA14 L=35 |
1 | ||
| 90506-10487 |
TA14 L=43 |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-14020 |
TA1# |
1 | ||
| 53630-14070 |
TA14 |
1 | ||
| 53630A - GROMMET(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90480-15194 |
TA1# |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90463-10335 |
TA1# |
2 | ||
| Common parts | ||||
| 91611-40616 | ||||
| 91651-40816 | ||||
| 91656-40616 | ||||
| 91661-40814 | ||||
| 93319-15010 | ||||
