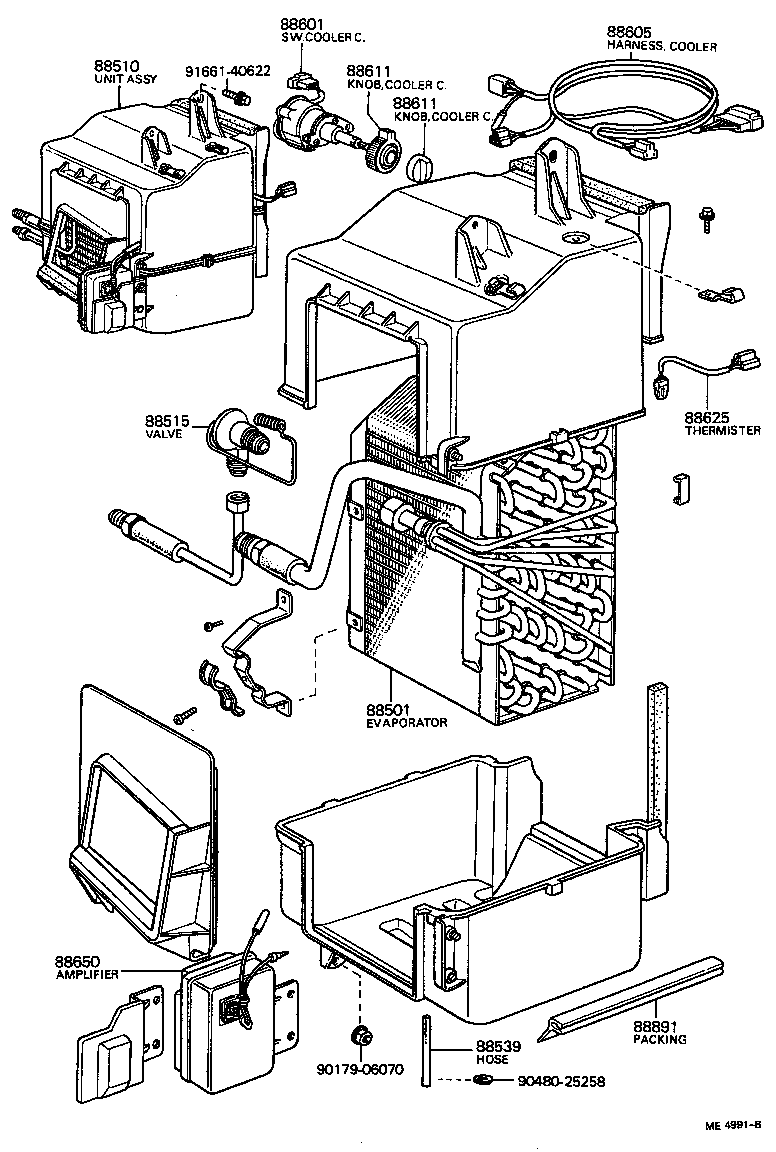

Toyota Carina TA14 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-14020	TA1#..LHD	12/1970 - 07/1972	1
88501-14040	TA14..LHD	10/1975 - 07/1977	1
88510 - UNIT ASSY, COOLER
88510-14100	TA14..LHD	10/1975 - 07/1977	1
88510-14020	TA1#..LHD	12/1970 - 07/1972	1
88515 - VALVE, COOLER EXPANSION
88515-14010	TA1#	12/1970 - 06/1971	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-20010	TA1# L=80	12/1970 - 09/1975	1
88539-14030	TA14..LHD	10/1975 - 07/1977	1
88539-14010	TA1# L=200	12/1970 - 09/1975	1
88539-20020	TA1# L=150	12/1970 - 09/1975	1
88601 - SWITCH SUB-ASSY, COOLER CONTROL
84732-14040	TA14 L/BOOST VENTILATOR	10/1975 - 04/1977	1
84732-14041	TA14 L/BOOST VENTILATOR	04/1977 - 07/1977	1
88622-20020	TA1#..LHD	12/1970 - 07/1972	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-14010	TA1#	12/1970 - 07/1972	1
88605-14060	TA14 W/BOOST VENTILATOR	10/1975 - 07/1977	1
88605-14070	TA14	10/1975 - 07/1977	1
88611 - KNOB, COOLER CONTROL SWITCH
84731-12021	TA14 FAN CONTROL	04/1977 - 07/1977	1
84731-12031	TA14 COOL CONTROL	10/1975 - 04/1977	1
84731-12032	TA14 COOL CONTROL	04/1977 - 07/1977	1
84731-12020	TA14 FAN CONTROL	10/1975 - 04/1977	1
88611 - KNOB, COOLER CONTROL SWITCH
84731-12021	TA14 FAN CONTROL	04/1977 - 07/1977	1
84731-12031	TA14 COOL CONTROL	10/1975 - 04/1977	1
84731-12032	TA14 COOL CONTROL	04/1977 - 07/1977	1
84731-12020	TA14 FAN CONTROL	10/1975 - 04/1977	1
88625 - THERMISTOR, COOLER, NO.1
88625-12020	TA14	10/1975 - 07/1977	1
88625-20010	TA1#	12/1970 - 09/1975	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-12010	TA1#	12/1970 - 07/1972	1
88650-20080	TA14..LHD W/BOOST VENTILATOR	10/1975 - 07/1977	1
88650-20060	TA14..LHD	10/1975 - 07/1977	1
88891 - PACKING (FOR COOLER)
55621-14010	TA14	10/1975 - 07/1977	1
88890-20010	TA1#	12/1970 - 07/1972	1
Common parts
90179-06070
90480-25258
91661-40622

TA14L-MSB (1975)

(7510-7707)
