TA14L-MSB (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2TB
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7510-7707)

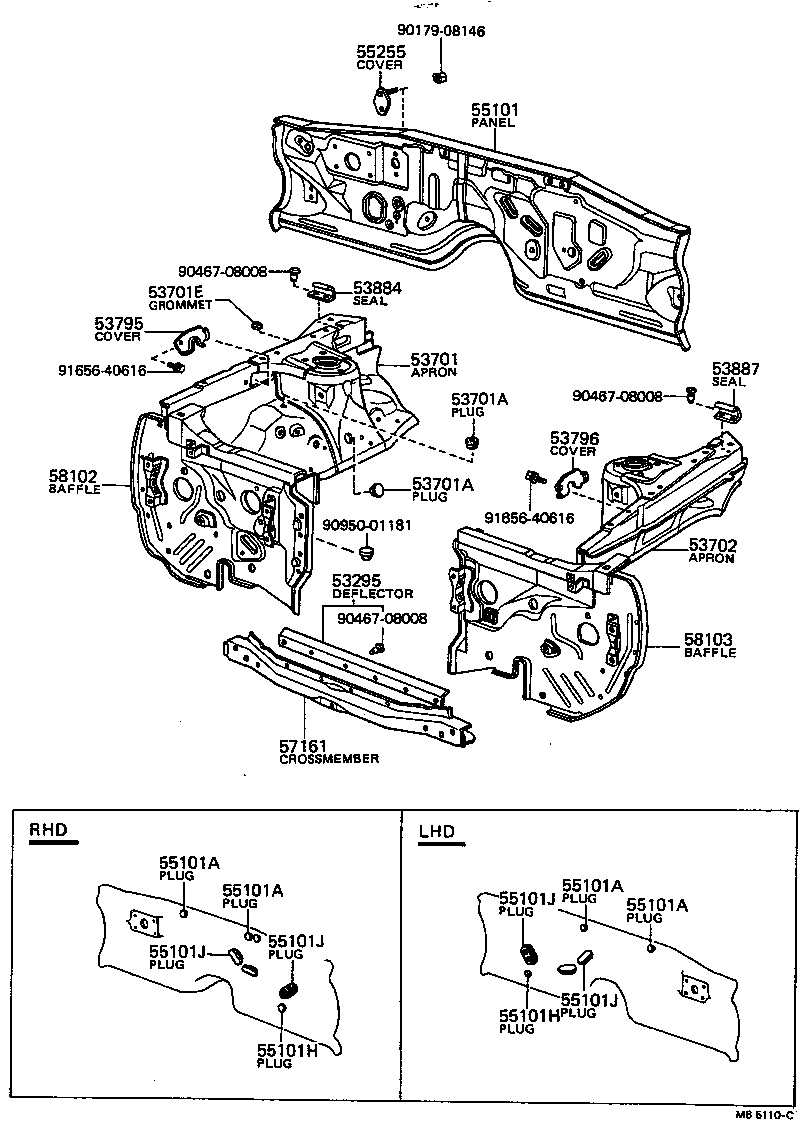

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53295 - DEFLECTOR, RADIATOR LOWER AIR | ||||
| 53295-14021 |
TA14 |
1 | ||
| 53295-14021 |
TA14 FOR COOLER |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-14020 |
TA1#..LHD |
1 | ||
| 53701-14090 |
TA14 |
1 | ||
| 53701-14012 |
TA14 |
1 | ||
| 53701A - PLUG, HOLE(FOR FRONT FENDER APRON) | ||||
| 90950-01122 |
TA14 OD=25X30 |
2 | ||
| 90950-01181 |
TA14 FOR SQUAREID=8.5X8.5 |
6 | ||
| 53701A - PLUG, HOLE(FOR FRONT FENDER APRON) | ||||
| 90950-01122 |
TA14 OD=25X30 |
2 | ||
| 90950-01181 |
TA14 FOR SQUAREID=8.5X8.5 |
6 | ||
| 53701E - GROMMET(FOR FRONT FENDER APRON) | ||||
| 90950-01133 |
TA14 OD=13 |
2 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-14020 |
TA1#..LHD |
1 | ||
| 53702-14120 |
TA14 |
1 | ||
| 53702-14101 |
TA14 |
1 | ||
| 53795 - COVER, HEADLAMP WIRE HARNESS HOLE, RH | ||||
| 53795-14010 |
TA14 |
1 | ||
| 53796 - COVER, HEADLAMP WIRE HARNESS HOLE, LH | ||||
| 53796-14010 |
TA14 |
1 | ||
| 53884 - SEAL, FRONT FENDER SPLASH SHIELD, RH | ||||
| 53888-14011 |
TA14 |
1 | ||
| 53887 - SEAL, FRONT FENDER SPLASH SHIELD, LH | ||||
| 53889-14011 |
TA14 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-14071 |
TA14..LHD |
1 | ||
| 55101-14020 |
TA1#..LHD |
1 | ||
| 55101A - PLUG, HOLE, NO.1(FOR DASH PANEL) | ||||
| 90950-01047 |
TA1# L/HEATER OD=30X60 |
1 | ||
| 90950-01013 |
TA14 OD=13 |
2 | ||
| 55101A - PLUG, HOLE, NO.1(FOR DASH PANEL) | ||||
| 90950-01047 |
TA1# L/HEATER OD=30X60 |
1 | ||
| 90950-01013 |
TA14 OD=13 |
2 | ||
| 55101A - PLUG, HOLE, NO.1(FOR DASH PANEL) | ||||
| 90950-01047 |
TA1# L/HEATER OD=30X60 |
1 | ||
| 90950-01013 |
TA14 OD=13 |
2 | ||
| 55101A - PLUG, HOLE, NO.1(FOR DASH PANEL) | ||||
| 90950-01047 |
TA1# L/HEATER OD=30X60 |
1 | ||
| 90950-01013 |
TA14 OD=13 |
2 | ||
| 55101H - PLUG, HOLE, NO.2(FOR DASH PANEL) | ||||
| 90950-01060 |
TA14 OD=25 |
1 | ||
| 90950-01105 |
TA1#..LHD OD=6 |
4 | ||
| 55101H - PLUG, HOLE, NO.2(FOR DASH PANEL) | ||||
| 90950-01060 |
TA14 OD=25 |
1 | ||
| 90950-01105 |
TA1#..LHD OD=6 |
4 | ||
| 55101J - PLUG, HOLE, NO.3(FOR DASH PANEL) | ||||
| 90950-01189 |
TA14 OD=34X74 |
3 | ||
| 55101J - PLUG, HOLE, NO.3(FOR DASH PANEL) | ||||
| 90950-01189 |
TA14 OD=34X74 |
3 | ||
| 55101J - PLUG, HOLE, NO.3(FOR DASH PANEL) | ||||
| 90950-01189 |
TA14 OD=34X74 |
3 | ||
| 55101J - PLUG, HOLE, NO.3(FOR DASH PANEL) | ||||
| 90950-01189 |
TA14 OD=34X74 |
3 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57161-14902 |
TA14 |
1 | ||
| 57104-14010 |
TA1# |
1 | ||
| 58102 - BAFFLE SUB-ASSY, RADIATOR SIDE, RH | ||||
| 53203-14010 |
TA1# |
1 | ||
| 53202-14010 |
TA14 |
1 | ||
| 58103 - BAFFLE SUB-ASSY,RADIATOR SIDE, LH | ||||
| 53203-14080 |
TA14 |
1 | ||
| 53204-14010 |
TA1# |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90467-08008 | ||||
| 90950-01181 | ||||
| 91656-40616 | ||||
