TA14L-MSB (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)MTM

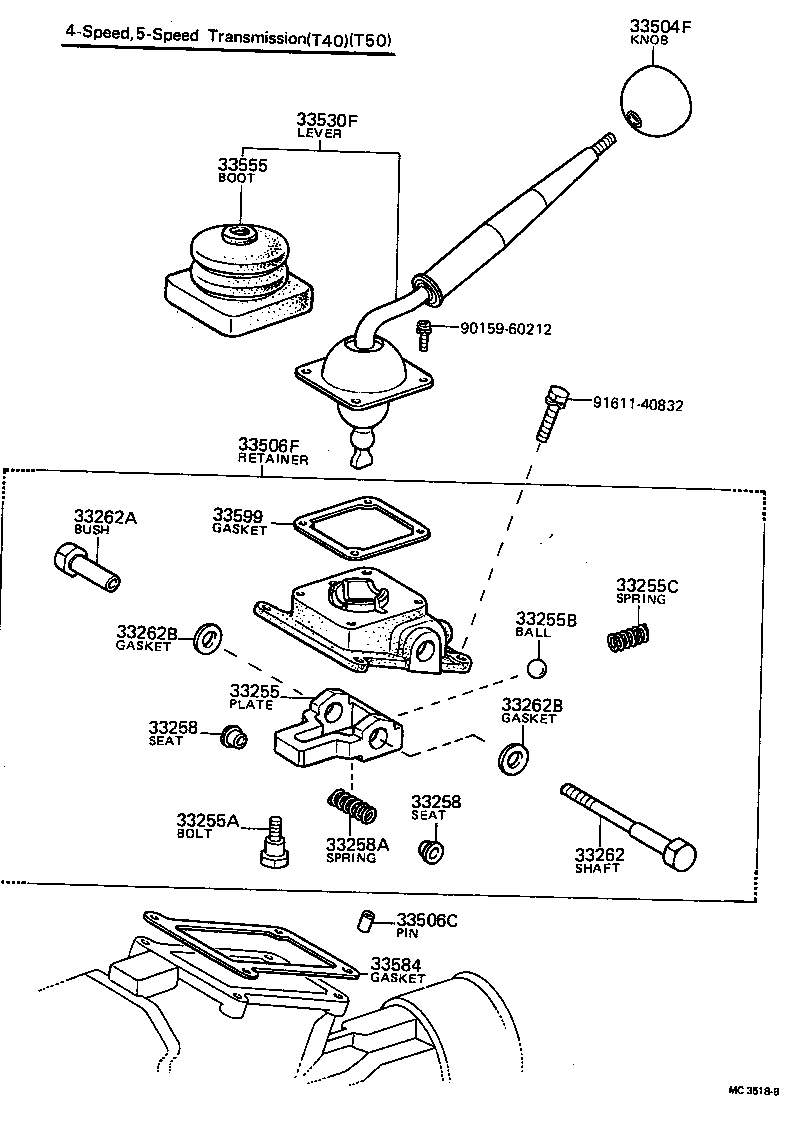

Click highlighted areas on diagram

diagram 33255 33255A 33255B 33255C 33258 33258 33258A 33262 33262A 33262B 33262B 33504F 33506C 33506F 33530F 33555 33584 33599 9015960212 9161140832
Part # Description Qty Price
33255A - BOLT, SELECT RETURN PLATE SET
33267-14010

TA1#..MTM

 1
33255B - BALL, SELECT RETURN PLATE
90360-10003

TA1#..MTM

 1
33255C - SPRING, SELECT RETURN PLATE BALL
90501-16041

TA1#..MTM

 1
33258 - SEAT, SELECT RETURN SPRING
33258-14010

TA1#..MTM

 2
33258 - SEAT, SELECT RETURN SPRING
33258-14010

TA1#..MTM

 2
33258A - SPRING, SELECT RETURN
90501-14583

TA1#..MTM

 1
33262 - SHAFT, SELECT RETURN
33262-14010

TA1#..MTM

 1
33262A - BUSH, SELECT RETURN
33256-14010

TA1#..MTM

 1
33262B - GASKET (FOR SELECT RETURN SHAFT)
90430-13201

TA1#..MTM

 2
33262B - GASKET (FOR SELECT RETURN SHAFT)
90430-13201

TA1#..MTM

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12110

TA14..ST

 1
33506C - PIN, SHIFT LEVER RETAINER RING
90253-11001

TA1#..MTM

L=11,OD=11

 2
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-14011

TA1#..MTM

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-14160

TA14..LHD..ST

 1
33555 - BOOT, SHIFT LEVER
33555-14010

TA1#..MTM

 1
33584 - GASKET, CONTROL SHIFT LEVER RETAINER (FOR COLUMN SHIFT)
33584-14010

TA1#..MTM

 1
33599 - GASKET, CONTROL SHIFT LEVER RETAINER, NO.2
33599-14010

TA1#..MTM

 1
Common parts
90159-60212
91611-40832
