TA14L-KRF (1975)
Toyota Carina
Production
Oct 1975
-
Jul 1977
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7510-7707)

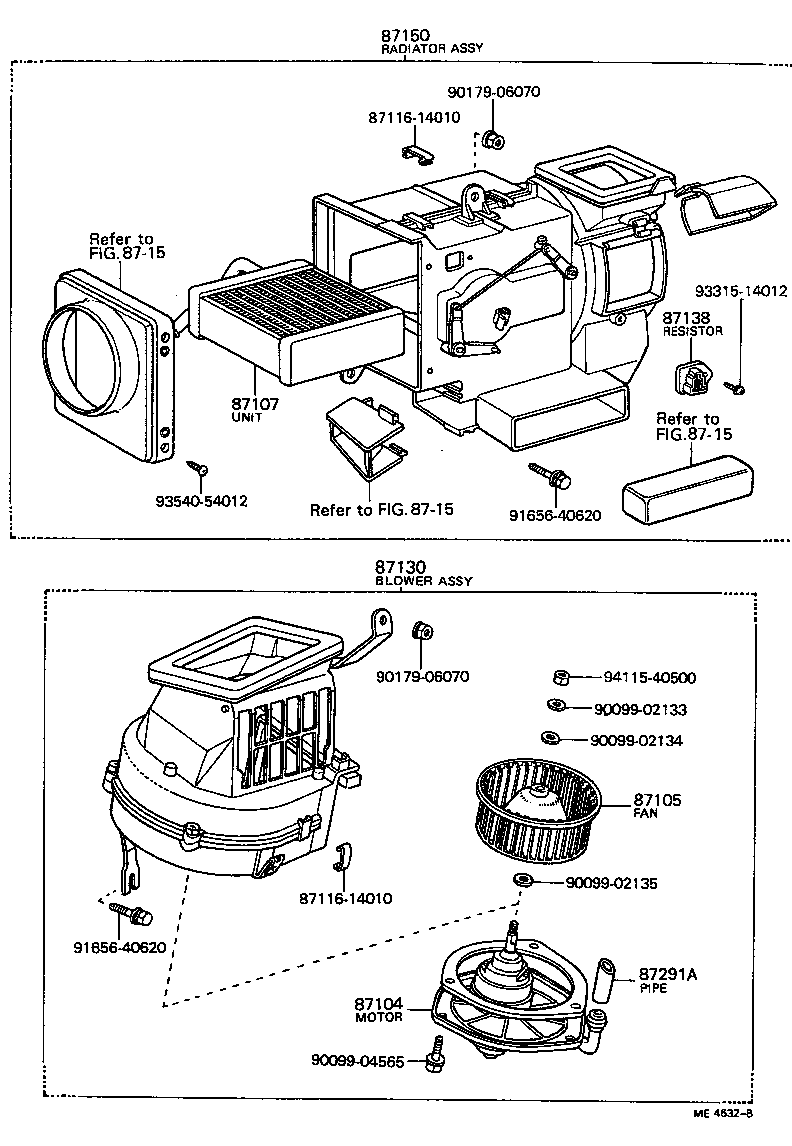

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-14020 |
TA1#..LHD |
1 | ||
| 87104-14050 |
TA14..LHD |
1 | ||
| 87104-22020 |
TA1#..LHD W/BOOST VENTILATOR OR COOLER |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-22020 |
TA1#..LHD |
1 | ||
| 87105-14010 |
TA14..LHD |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-14060 |
TA14..LHD |
1 | ||
| 87107-14010 |
TA1# |
1 | ||
| 87107-14070 |
TA14..LHD HEAVY DUTY HEATER |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-14020 |
TA14..LHD |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-22010 |
TA1# |
1 | ||
| 87138-14020 |
TA14 |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-14020 |
TA14..LHD |
1 | ||
| 87150-14051 |
TA14..LHD |
1 | ||
| 87150-14061 |
TA14..LHD HEAVY DUTY HEATER |
1 | ||
| 87150-14030 |
TA14..LHD HEAVY DUTY HEATER |
1 | ||
| 87291A - PIPE, AIR | ||||
| 87291-14020 |
TA14 |
1 | ||
| Common parts | ||||
| 87116-14010 | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-04565 | ||||
| 90179-06070 | ||||
| 91656-40620 | ||||
| 93315-14012 | ||||
| 93540-54012 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(7510-7707)

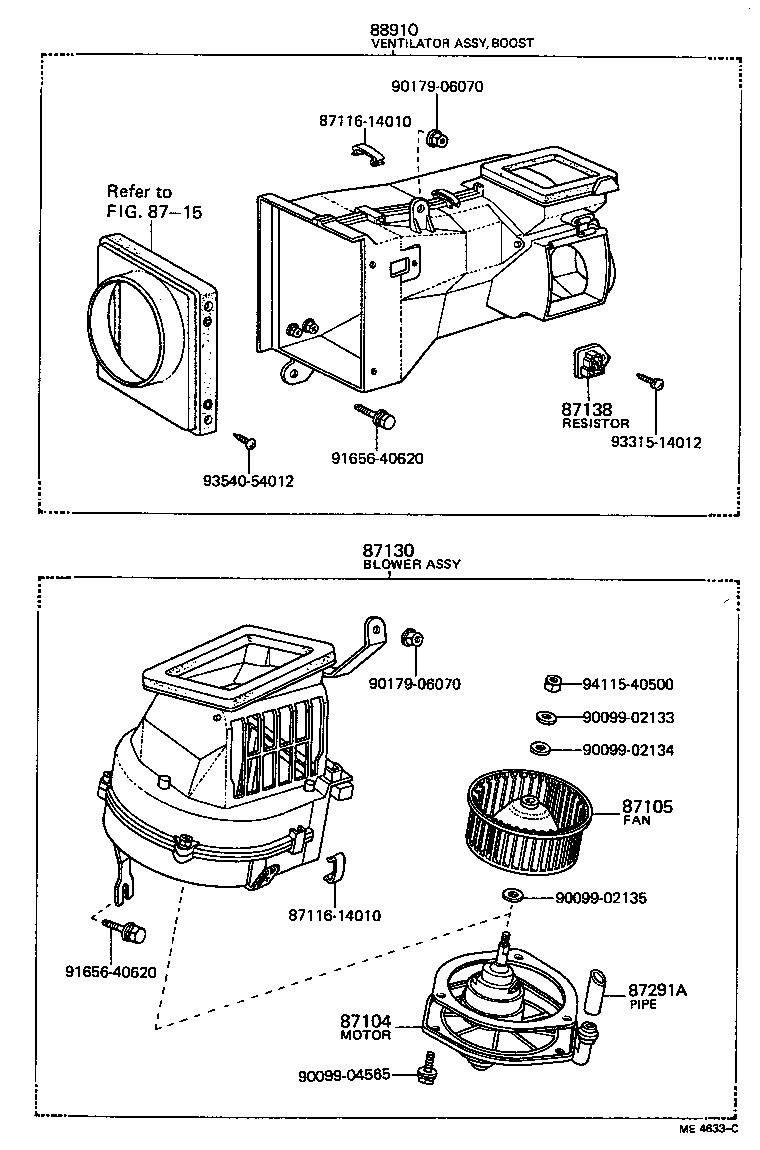

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-14020 |
TA1#..LHD |
1 | ||
| 87104-14050 |
TA14..LHD |
1 | ||
| 87104-22020 |
TA1#..LHD W/BOOST VENTILATOR OR COOLER |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-22020 |
TA1#..LHD |
1 | ||
| 87105-14010 |
TA14..LHD |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-14020 |
TA14..LHD |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-22010 |
TA1# |
1 | ||
| 87138-14020 |
TA14 |
1 | ||
| 87291A - PIPE, AIR | ||||
| 87291-14020 |
TA14 |
1 | ||
| 88910 - VENTILATOR ASSY, BOOST | ||||
| 88910-20020 |
TA1#..LHD |
1 | ||
| 88910-14070 |
TA14..LHD |
1 | ||
| 88910-14080 |
TA14..LHD |
1 | ||
| Common parts | ||||
| 87116-14010 | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-04565 | ||||
| 90179-06070 | ||||
| 91656-40620 | ||||
| 93315-14012 | ||||
| 93540-54012 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 8715 | ||||
