TA14L-KRF (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)LHD

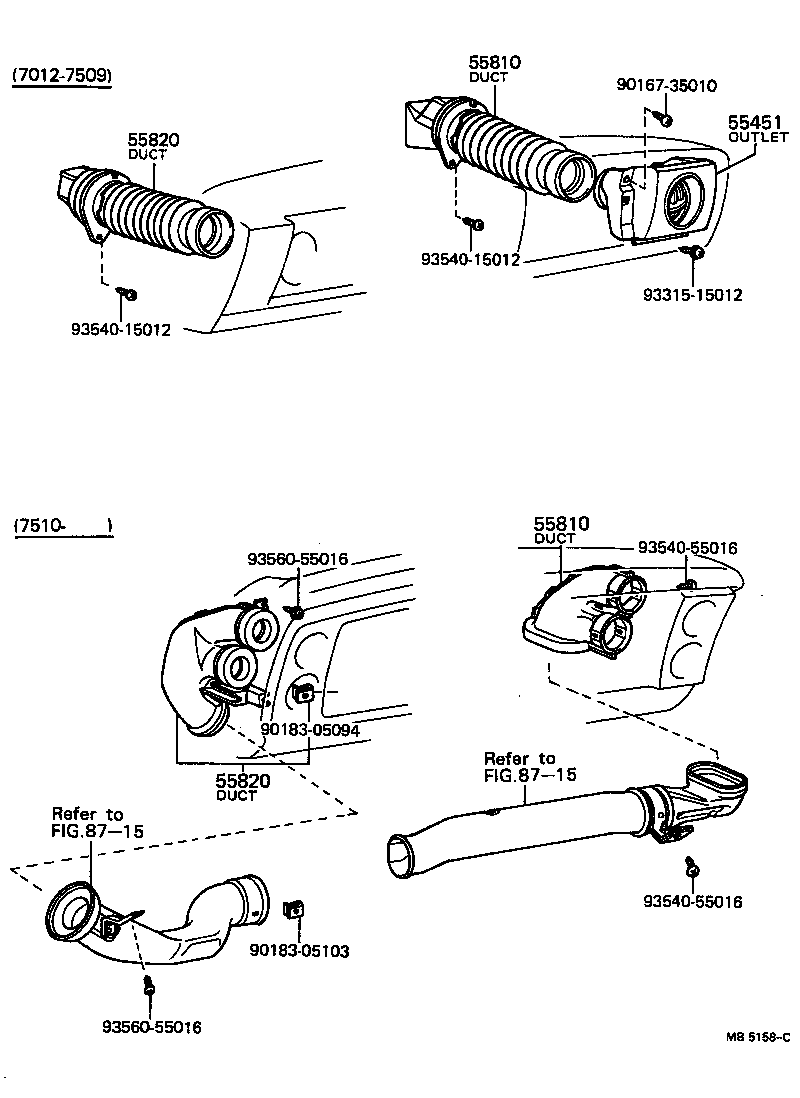

Click highlighted areas on diagram

diagram 55451 55810 55810 55820 55820 8715 8715 9016735010 9018305094 9018305103 9331515012 9354015012 9354015012 9354055016 9354055016 9356055016 9356055016
Part # Description Qty Price
55451 - OUTLET, AIR OUTER, RH
55403-14020

TA1#..LHD

 1
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55805-14010

TA1#

 1
55087-14010

TA14..LHD

 1
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55805-14010

TA1#

 1
55087-14010

TA14..LHD

 1
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55084-14020

TA14..LHD

 1
55806-14010

TA1#

 1
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55084-14020

TA14..LHD

 1
55806-14010

TA1#

 1
Common parts
90167-35010
90183-05094
90183-05103
93315-15012
93540-15012
93540-55016
93560-55016
Linked diagrams
8715
