TA14L-KDF (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

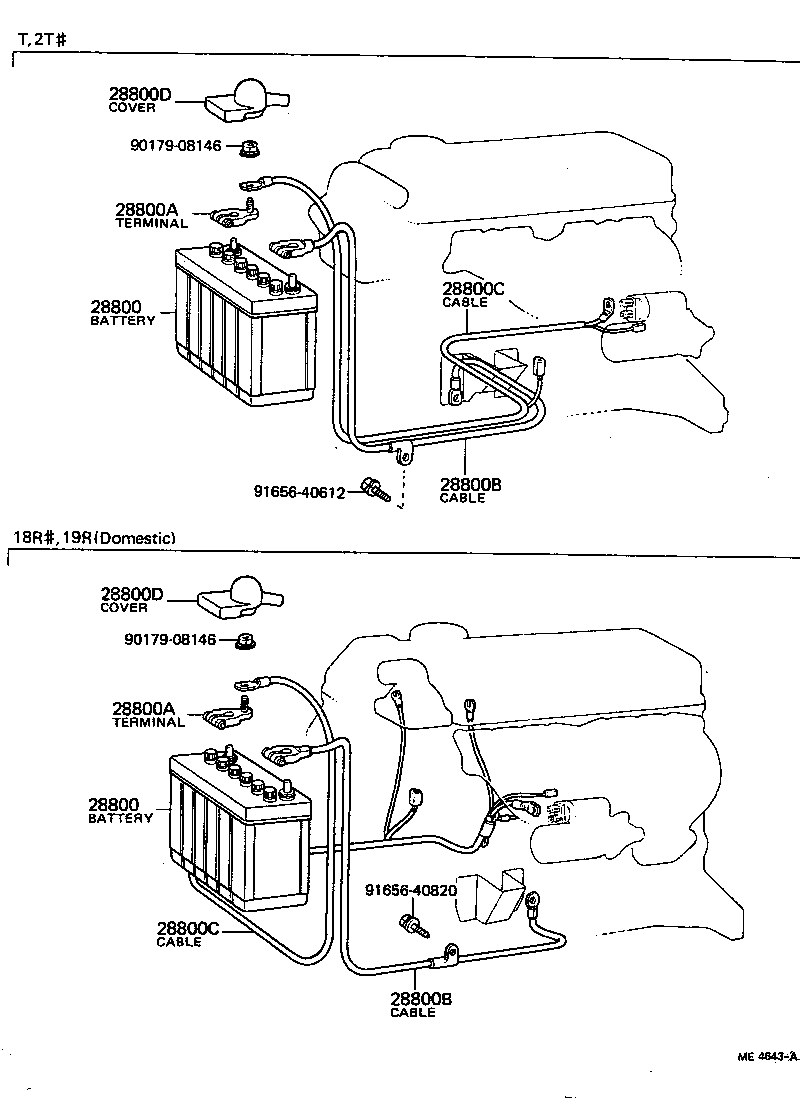

Click highlighted areas on diagram

diagram 28800 28800 28800A 28800A 28800B 28800B 28800C 28800C 28800D 28800D 9017908146 9017908146 9165640612 9165640820
Part # Description Qty Price
28800 - BATTERY
28800-30131

T,2T#..TA1#

55D26R,GS,N50ZL

 1
28800-30110

T,2T#..TA1#

KOBE,NS40ZL

 1
28800-26040

2T#..TA14

34B19L,GS,NS40ZAL

 1
28800-31031

T,2T#..TA1#

32C24L,GS,N40L

 1
28800-30100

T,2T#..TA1#

GS,NS40ZL

 1
28800-31021

T,2T#..TA1#

32C24L,KOBE,N40L

 1
28800 - BATTERY
28800-30131

T,2T#..TA1#

55D26R,GS,N50ZL

 1
28800-30110

T,2T#..TA1#

KOBE,NS40ZL

 1
28800-26040

2T#..TA14

34B19L,GS,NS40ZAL

 1
28800-31031

T,2T#..TA1#

32C24L,GS,N40L

 1
28800-30100

T,2T#..TA1#

GS,NS40ZL

 1
28800-31021

T,2T#..TA1#

32C24L,KOBE,N40L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05005

2T#..TA12,14

FOR N40L,N50ZL

 1
90982-05004

T,2T#..TA1#

FOR NS40ZL,NS60L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05005

2T#..TA12,14

FOR N40L,N50ZL

 1
90982-05004

T,2T#..TA1#

FOR NS40ZL,NS60L

 1
28800B - CABLE, BATTERY TO GROUND
90982-02070

T,2T#..TA1#

FOR N40L,N50ZL

 1
90982-02117

2T#..TA14

FOR N40ZL

 1
90982-02069

T,2T#..TA1#

FOR NS40ZL,NS60L

 1
90982-02118

2T#..TA14

FOR N40L,N50ZL

 1
28800B - CABLE, BATTERY TO GROUND
90982-02070

T,2T#..TA1#

FOR N40L,N50ZL

 1
90982-02117

2T#..TA14

FOR N40ZL

 1
90982-02069

T,2T#..TA1#

FOR NS40ZL,NS60L

 1
90982-02118

2T#..TA14

FOR N40L,N50ZL

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-14010

T,2T#..TA1#

 1
82021-14040

2T#..TA14..LHD

 1
82021-14040

2T#..TA14

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-14010

T,2T#..TA1#

 1
82021-14040

2T#..TA14..LHD

 1
82021-14040

2T#..TA14

 1
Common parts
90179-08146
91656-40612
91656-40820
