TA14L-KDF (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

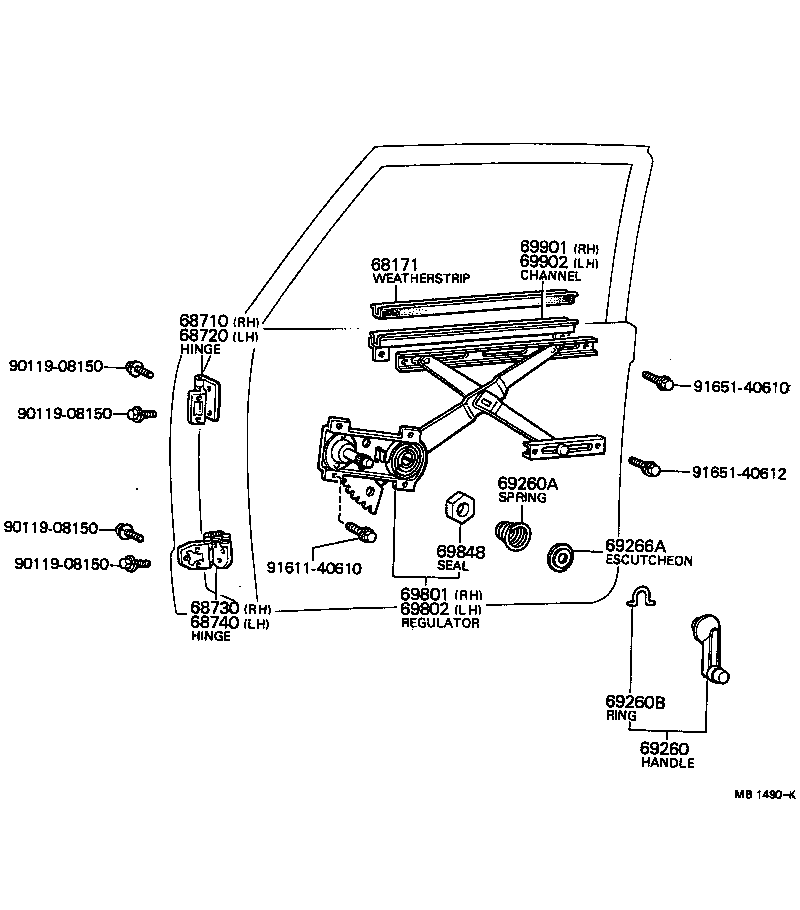

Click highlighted areas on diagram

diagram 68171 68710 68720 68730 68740 69260 69260A 69260B 69266A 69801 69802 69848 69901 69902 9011908150 9011908150 9011908150 9011908150 9161140610 9165140610 9165140612
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68171-20030

TA1#

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-30030

TA1#..4D

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68710-30030

TA1#..4D

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-20031

TA1#..4D

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-20031

TA1#..4D

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-29015

TA1#

 2
69260-1201001

TA14

BLACK,BLACK,TRIM2#

 2
69260-1201008

TA14

IVORY,IVORY,TRIM0#

 2
69260-1201006

TA14

BROWN,BROWN,TRIM4#

 2
69260A - SPRING(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
90502-16018

TA1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

TA1#

 2
69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
69266-22010

TA1#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-20030

TA1#..4D

 1
69801-20031

TA14..4D

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-20031

TA14..4D

 1
69802-20030

TA1#..4D

 1
69848 - SEAL, WINDOW REGULATOR HOLE
69848-30010

TA1#

 2
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-20040

TA1#

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-20040

TA1#

 1
Common parts
90119-08150
91611-40610
91651-40610
91651-40612
