TA14L-KDF (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7510-7707)4D

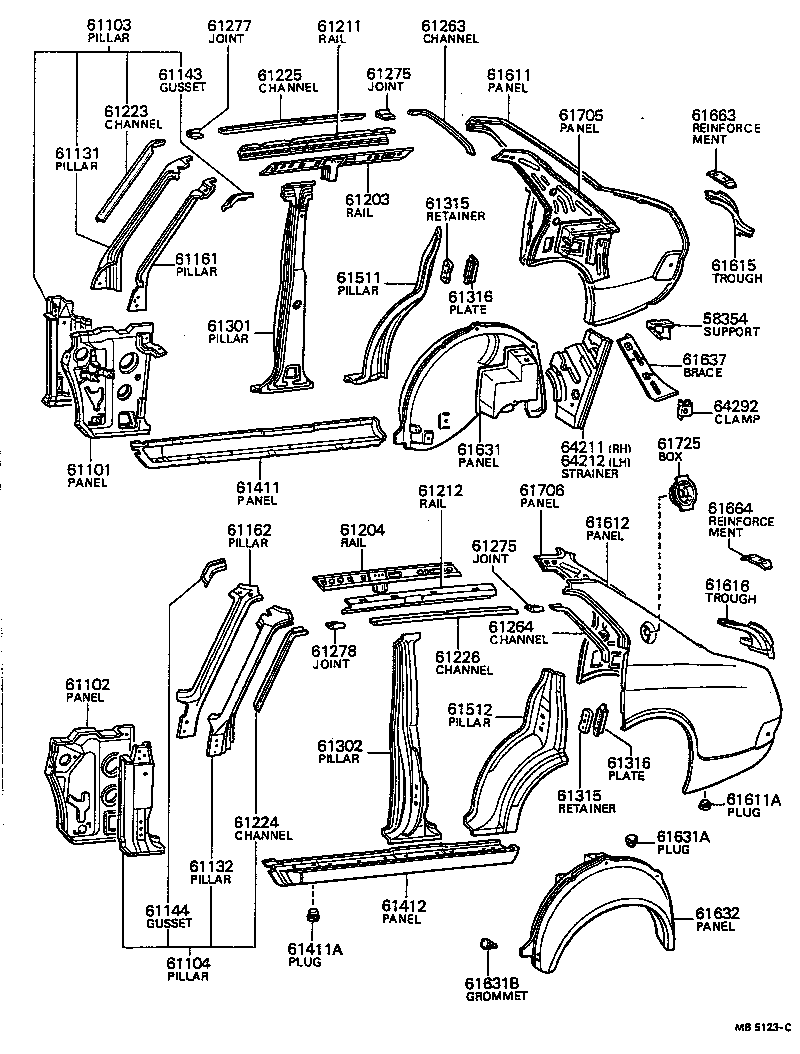

Click highlighted areas on diagram

diagram 58354 61101 61102 61103 61104 61131 61132 61143 61144 61161 61162 61203 61204 61211 61212 61223 61224 61225 61226 61263 61264 61275 61275 61277 61278 61301 61302 61315 61315 61316 61316 61411 61411A 61412 61511 61512 61611 61611A 61612 61615 61616 61631 61631A 61631B 61632 61637 61663 61664 61705 61706 61725 64211 64212 64292
Part # Description Qty Price
61101 - PANEL SUB-ASSY, COWL SIDE, RH
61101-14021

TA14..LHD

 1
61102 - PANEL SUB-ASSY, COWL SIDE, LH
61102-14021

TA14..LHD

 1
61103 - PILLAR SUB-ASSY, FRONT BODY, RH
61103-14901

TA14

 1
61103-14020

TA1#..LHD

 1
61104 - PILLAR SUB-ASSY, FRONT BODY, LH
61104-14901

TA14

 1
61104-14020

TA1#..LHD

 1
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-20030

TA1#

 1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-20030

TA1#

 1
61143 - GUSSET, FRONT PILLAR DOOR OPENING, UPPER RH
61143-20030

TA1#

 1
61144 - GUSSET, FRONT PILLAR DOOR OPENING, UPPER LH
61144-20030

TA1#

 1
61161 - PILLAR, FRONT BODY, UPPER INNER RH
61161-20901

TA1#

 1
61162 - PILLAR, FRONT BODY, UPPER INNER LH
61162-20901

TA1#

 1
61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH
61203-14010

TA1#..4D

 1
61203-14050

TA14..4D

 1
61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH
61204-14050

TA14..4D

 1
61204-14010

TA1#..4D

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-14020

TA1#..4D

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-14020

TA1#..4D

 1
61223 - CHANNEL, ROOF DRIP, FRONT RH
61223-14010

TA1#

 1
61224 - CHANNEL, ROOF DRIP, FRONT LH
61224-14010

TA1#

 1
61225 - CHANNEL, ROOF DRIP, CENTER RH
61225-14010

TA1#..4D

 1
61226 - CHANNEL, ROOF DRIP, CENTER LH
61226-14010

TA1#..4D

 1
61263 - CHANNEL, ROOF DRIP, REAR RH
61227-14010

TA1#..4D

 1
61264 - CHANNEL, ROOF DRIP, REAR LH
61228-14010

TA1#..4D

 1
61301 - PILLAR SUB-ASSY, CENTER BODY, RH
61301-20040

TA1#..4D

 1
61302 - PILLAR SUB-ASSY, CENTER BODY, LH
61302-20050

TA1#..4D

 1
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61315-20030

TA1#..4D

 2
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61315-20030

TA1#..4D

 2
61316 - PLATE, DOOR LOCK STRIKER SUPPORT
61316-12040

TA1#..4D

 2
61316-20030

TA14..4D

 2
61316 - PLATE, DOOR LOCK STRIKER SUPPORT
61316-12040

TA1#..4D

 2
61316-20030

TA14..4D

 2
61411 - PANEL, ROCKER, OUTER RH
61411-14902

TA1#..4D

 1
61411-14905

TA14..4D

 1
61411A - REINFORCEMENT, ROCKER PANEL, NO.1 RH
90950-01056

TA1#

OD=15

 8
61412 - PANEL, ROCKER, OUTER LH
61412-14902

TA1#..4D

 1
61412-14905

TA14..4D

 1
61511 - PILLAR, QUARTER LOCK, RH
61511-14010

TA1#..4D

 1
61512 - PILLAR, QUARTER LOCK, LH
61512-14010

TA1#..4D

 1
61611 - PANEL, QUARTER, RH
61611-14040

TA1#..4D

 1
61611A - PANEL, QUARTER, NO.2 RH
90950-01006

TA1#

OD=9

 2
61612 - PANEL, QUARTER, LH
61612-14040

TA1#..4D

 1
61615 - TROUGH, LUGGAGE COMPARTMENT OPENING, RH
61615-14010

TA1#

 1
61616 - TROUGH, LUGGAGE COMPARTMENT OPENING, LH
61616-14010

TA1#

 1
61631 - PANEL, QUARTER WHEEL HOUSE, RH
61603-14901

TA1#

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
90950-01027

TA1#

OD=10

 2
61631B - GROMMET(FOR QUARTER WHEEL HOUSE)
90950-01126

TA1#

OD=12

 2
61632 - PANEL, QUARTER WHEEL HOUSE, LH
61604-14901

TA1#

 1
61637 - BRACE, QUARTER WHEEL HOUSE, RH
61657-14010

TA1#

 1
61663 - REINFORCEMENT, REAR COMBINATION LAMP SUPPORT, RH
61663-14010

TA1#

 1
61664 - REINFORCEMENT, REAR COMBINATION LAMP SUPPORT, LH
61664-14010

TA1#

 1
61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH
61705-14020

TA1#..4D

 1
61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH
61706-14020

TA1#..4D

 1
64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH
64211-14010

TA1#

 1
64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH
64212-14010

TA1#

 1
64292 - CLAMP, JACK HANDLE
64292-12010

TA1#

 3
