TA14L-KD (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7510-7707)

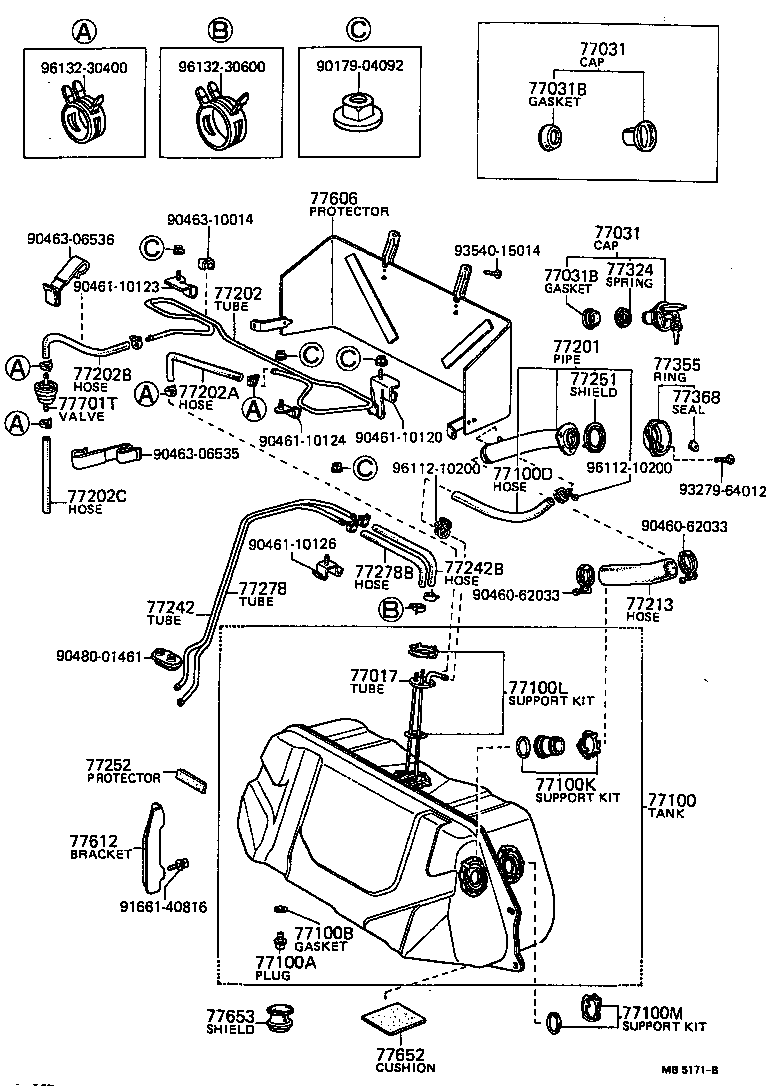

Click highlighted areas on diagram

diagram 77017 77031 77031 77031B 77031B 77100 77100A 77100B 77100D 77100K 77100L 77100M 77201 77202 77202A 77202B 77202C 77213 77242 77242B 77251 77252 77278 77278B 77324 77355 77368 77606 77612 77652 77653 77701T 9017904092 9046062033 9046062033 9046110120 9046110123 9046110124 9046110126 9046306535 9046306536 9046310014 9048001461 9166140816 9327964012 9354015014 9611210200 9611210200 9613230400 9613230600
Part # Description Qty Price
77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017-14010

TA14

 1
77017-14040

TA14..LHD

FOR P.F.T.

 1
77031 - CAP ASSY, FUEL TANK
77031-14010

TA1#

W/KEY

 1
69058-12030

TA14

W/KEY

 1
77031 - CAP ASSY, FUEL TANK
77031-14010

TA1#

W/KEY

 1
69058-12030

TA14

W/KEY

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-40011

TA1#

FOR W/KEY

 1
77316-12050

TA14

FOR W/KEY

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-40011

TA1#

FOR W/KEY

 1
77316-12050

TA14

FOR W/KEY

 1
77100 - TANK ASSY, FUEL
77001-14210

TA14..LHD

POLYETHYLENE

 1
77001-14093

TA14

 1
77001-14010

TA1#

 1
77100A - PLUG(FOR FUEL TANK)
90341-24036

TA1#

 1
77100B - GASKET(FOR FUEL TANK)
90430-24047

TA1#

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
90445-18026

TA14

L=585

 1
90445-18876

TA14

L=635

 1
90445-18023

TA14..LHD

FOR P.F.T.L=440

 1
77100K - SUPPORT KIT, FUEL TANK INLET
04772-12020

TA14

 1
77100L - SUPPORT KIT, FUEL TANK TUBE
04772-12020

TA14

 1
77100M - SUPPORT KIT, FUEL TANK GAGE
04772-12020

TA14

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-14071

TA14

 1
77201-14140

TA14..LHD

FOR P.F.T.

 1
77202 - TUBE SUB-ASSY, BREATHER
77263-14010

TA14

 1
77013-14020

TA14..LHD

FOR P.F.T.

 1
77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
95332-06013

TA14..LHD

*H,L=130,FOR P.F.T.

 1
95331-06013

TA14..LHD

*H,L=130,FOR P.F.T.

 1
95331-04018

TA14

*H,L=180

 1
77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE)
95332-04026

TA14

*H,L=260

 1
95331-04026

TA14

*H,L=260

 1
95332-06028

TA14..LHD

*H,L=280,FOR P.F.T.

 1
95331-06028

TA14..LHD

*H,L=280,FOR P.F.T.

 1
77202C - HOSE, FUEL, NO.3 (FOR BREATHER TUBE)
95332-06008

TA14..LHD

*H,L=80,FOR P.F.T.

 1
95331-04034

TA14

*H,L=340

 1
95331-06008

TA14..LHD

*H,L=80,FOR P.F.T.

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-14031

TA14

 1
77213-14070

TA14..LHD

FOR P.F.T.

 1
77242 - TUBE, FUEL MAIN, NO.2
77252-14070

TA14

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95331-06025

TA14..LHD

*H,L=250,FOR P.F.T.

 1
95331-06026

TA14..LHD

*H,L=260,FOR P.F.T.

 1
95332-06015

TA14

*H,L=150

 1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77251-10010

TA1#

 1
77278 - TUBE, FUEL RETURN, NO.2
77256-14030

TA14

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95332-06015

TA14

*H,L=150

 1
95331-06025

TA14..LHD

*H,L=250,FOR P.F.T.

 1
95331-06026

TA14..LHD

*H,L=260,FOR P.F.T.

 1
77324 - SPRING, FUEL TANK CAP
77317-12030

TA14

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-14021

TA14

 1
77606-14030

TA14..LHD

FOR P.F.T.

 1
77612 - BRACKET SUB-ASSY, FUEL TANK
61812-14011

TA14

LH.

 1
61811-14011

TA14

RH.

 1
77652 - CUSHION, FUEL TANK, NO.1
77653-14010

TA14..LHD

FOR P.F.T.

 1
77651-20010

TA14

 2
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10025

TA14

 1
90917-10020

TA14..LHD

FOR P.F.T.

 1
Common parts
90179-04092
90460-62033
90461-10120
90461-10123
90461-10124
90461-10126
90463-06535
90463-06536
90463-10014
90480-01461
91661-40816
93279-64012
93540-15014
96112-10200
96132-30400
96132-30600

(7510-7707)

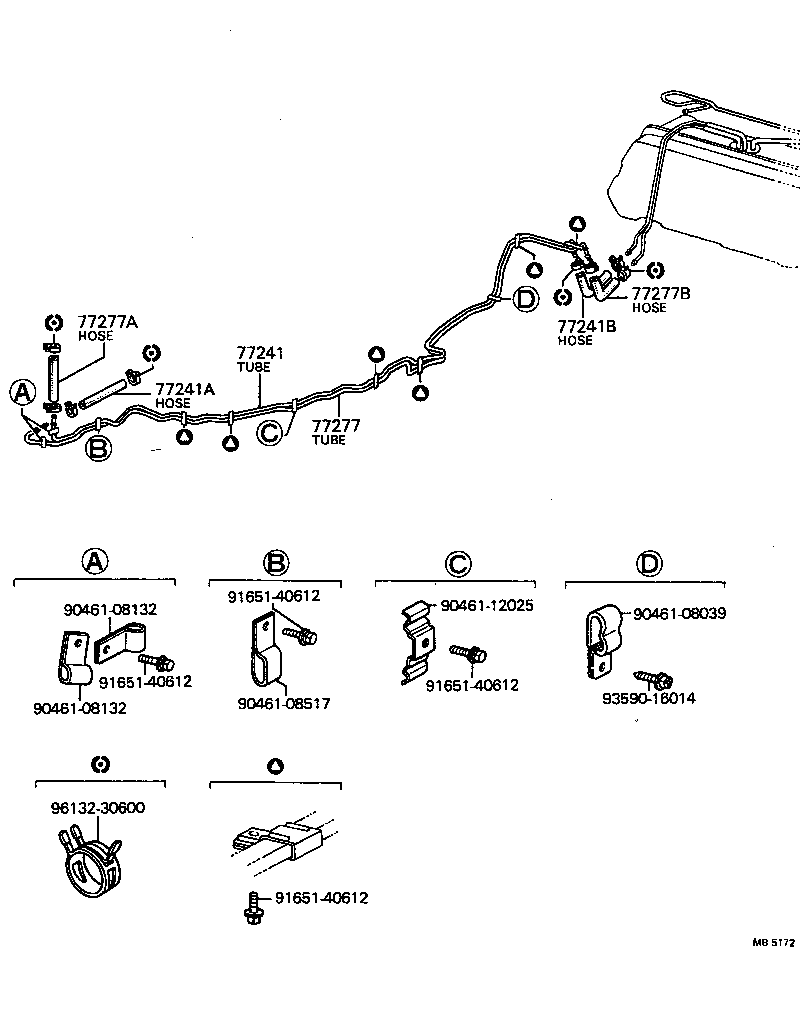

Click highlighted areas on diagram

diagram 77241 77241A 77241B 77277 77277A 77277B 9046108039 9046108132 9046108132 9046108517 9046112025 9165140612 9165140612 9165140612 9165140612 9359016014 9613230600
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-14050

TA14

 1
77251-14010

TA1#

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06010

TA14

*H,L=100

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-06012

TA14

*H,L=120

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-14070

TA14

 1
77257-14010

TA1#

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90923-01109

TA1#

L=430

 1
95331-06036

TA14

*H,L=360

 1
95332-06036

TA14

*H,L=360

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06018

TA14

*H,L=180

 1
Common parts
90461-08039
90461-08132
90461-08517
90461-12025
91651-40612
93590-16014
96132-30600

(7606-7707)LHD

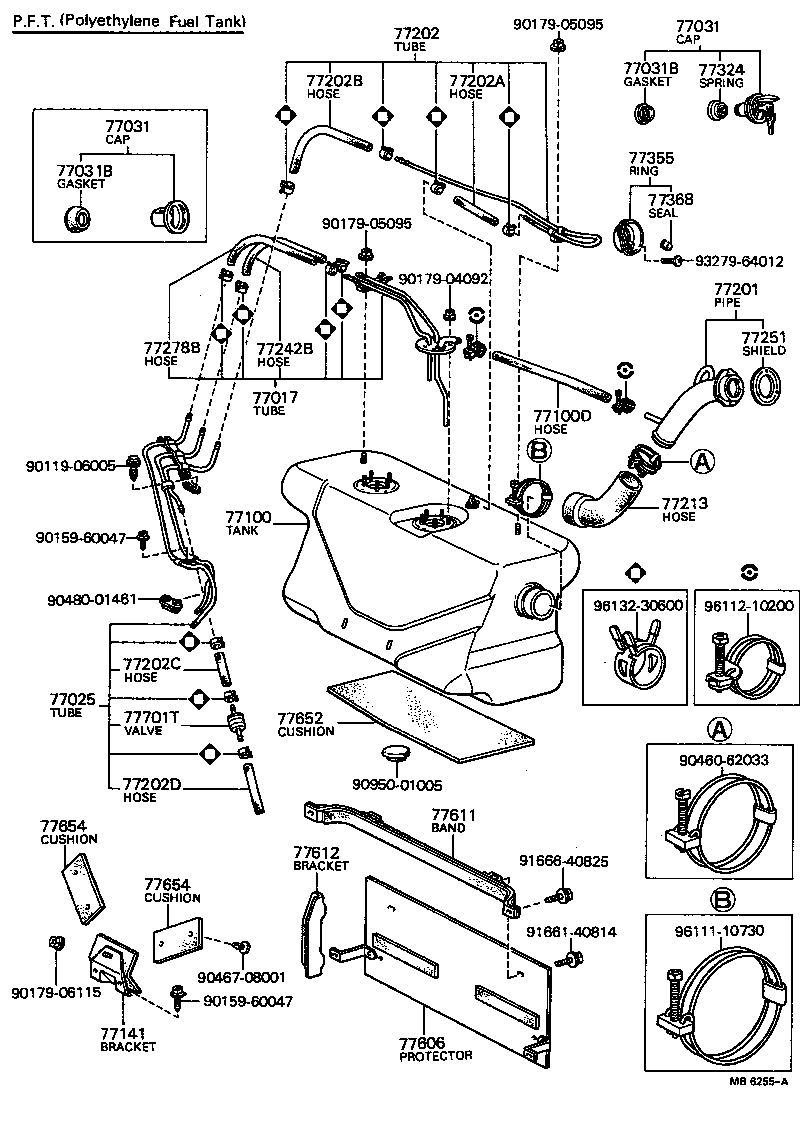

Click highlighted areas on diagram

diagram 77017 77025 77031 77031 77031B 77031B 77100 77100D 77141 77201 77202 77202A 77202B 77202C 77202D 77213 77242B 77251 77278B 77324 77355 77368 77606 77611 77612 77652 77654 77654 77701T 9011906005 9015960047 9015960047 9017904092 9017905095 9017905095 9017906115 9046062033 9046708001 9048001461 9095001005 9166140814 9166640825 9327964012 9611110730 9611210200 9613230600
Part # Description Qty Price
77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017-14010

TA14

 1
77017-14040

TA14..LHD

FOR P.F.T.

 1
77025 - TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR
77025-14050

TA14..LHD

FOR P.F.T.

 1
77031 - CAP ASSY, FUEL TANK
77031-14010

TA1#

W/KEY

 1
69058-12030

TA14

W/KEY

 1
77031 - CAP ASSY, FUEL TANK
77031-14010

TA1#

W/KEY

 1
69058-12030

TA14

W/KEY

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-40011

TA1#

FOR W/KEY

 1
77316-12050

TA14

FOR W/KEY

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-40011

TA1#

FOR W/KEY

 1
77316-12050

TA14

FOR W/KEY

 1
77100 - TANK ASSY, FUEL
77001-14210

TA14..LHD

POLYETHYLENE

 1
77001-14093

TA14

 1
77001-14010

TA1#

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
90445-18026

TA14

L=585

 1
90445-18876

TA14

L=635

 1
90445-18023

TA14..LHD

FOR P.F.T.L=440

 1
77141 - BRACKET, FUEL TANK MOUNTING, FRONT
77141-14030

TA14..LHD

FOR P.F.T.

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-14071

TA14

 1
77201-14140

TA14..LHD

FOR P.F.T.

 1
77202 - TUBE SUB-ASSY, BREATHER
77263-14010

TA14

 1
77013-14020

TA14..LHD

FOR P.F.T.

 1
77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
95332-06013

TA14..LHD

*H,L=130,FOR P.F.T.

 1
95331-06013

TA14..LHD

*H,L=130,FOR P.F.T.

 1
95331-04018

TA14

*H,L=180

 1
77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE)
95332-04026

TA14

*H,L=260

 1
95331-04026

TA14

*H,L=260

 1
95332-06028

TA14..LHD

*H,L=280,FOR P.F.T.

 1
95331-06028

TA14..LHD

*H,L=280,FOR P.F.T.

 1
77202C - HOSE, FUEL, NO.3 (FOR BREATHER TUBE)
95332-06008

TA14..LHD

*H,L=80,FOR P.F.T.

 1
95331-04034

TA14

*H,L=340

 1
95331-06008

TA14..LHD

*H,L=80,FOR P.F.T.

 1
77202D - HOSE, FUEL, NO.4 (FOR BREATHER TUBE)
95332-06015

TA14..LHD

*H,L=150,FOR P.F.T.

 1
95331-06015

TA14..LHD

*H,L=150,FOR P.F.T.

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-14031

TA14

 1
77213-14070

TA14..LHD

FOR P.F.T.

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95331-06025

TA14..LHD

*H,L=250,FOR P.F.T.

 1
95331-06026

TA14..LHD

*H,L=260,FOR P.F.T.

 1
95332-06015

TA14

*H,L=150

 1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77251-10010

TA1#

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95332-06015

TA14

*H,L=150

 1
95331-06025

TA14..LHD

*H,L=250,FOR P.F.T.

 1
95331-06026

TA14..LHD

*H,L=260,FOR P.F.T.

 1
77324 - SPRING, FUEL TANK CAP
77317-12030

TA14

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-14021

TA14

 1
77606-14030

TA14..LHD

FOR P.F.T.

 1
77611 - BAND, FUEL TANK
77601-14030

TA14..LHD

FOR P.F.T.

 1
77612 - BRACKET SUB-ASSY, FUEL TANK
61812-14011

TA14

LH.

 1
61811-14011

TA14

RH.

 1
77652 - CUSHION, FUEL TANK, NO.1
77653-14010

TA14..LHD

FOR P.F.T.

 1
77651-20010

TA14

 2
77654 - CUSHION, FUEL TANK, NO.2
77652-14050

TA14..LHD

FOR P.F.T.

 2
77654 - CUSHION, FUEL TANK, NO.2
77652-14050

TA14..LHD

FOR P.F.T.

 2
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10025

TA14

 1
90917-10020

TA14..LHD

FOR P.F.T.

 1
Common parts
90119-06005
90159-60047
90179-04092
90179-05095
90179-06115
90460-62033
90467-08001
90480-01461
90950-01005
91661-40814
91666-40825
93279-64012
96111-10730
96112-10200
96132-30600
