TA14L-HDF (1975)

Toyota Carina

Production Oct 1975 - Jul 1977
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7510-7707)

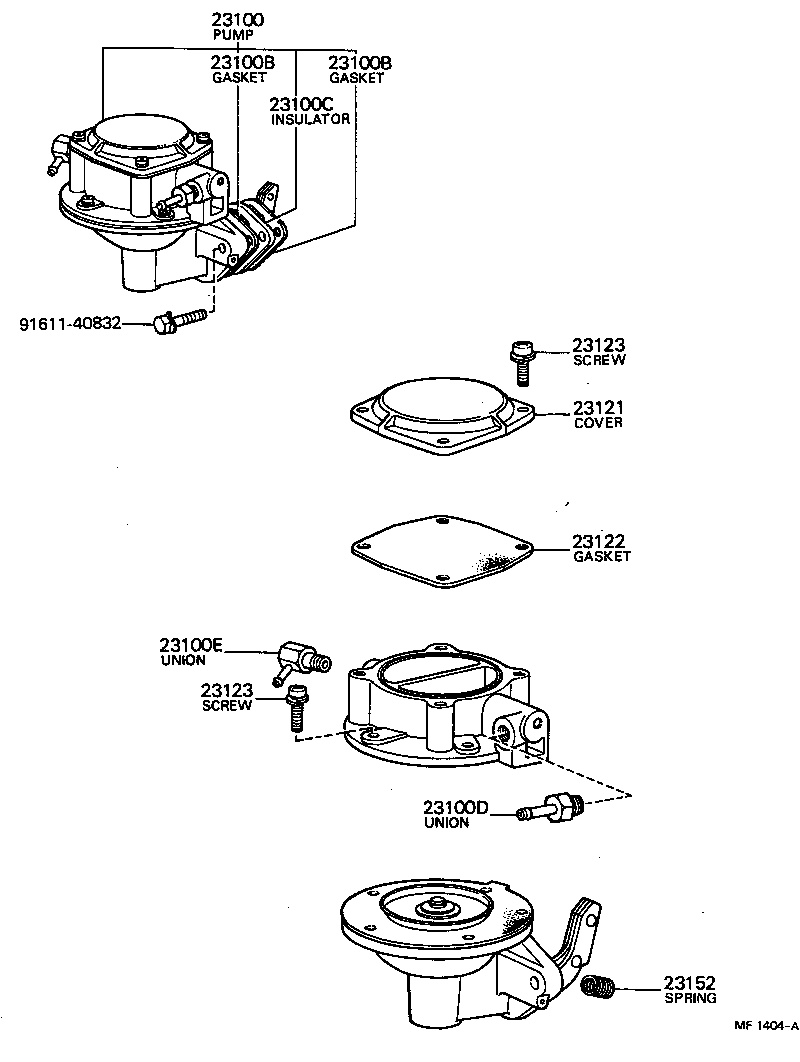

Click highlighted areas on diagram

diagram 23100 23100B 23100B 23100C 23100D 23100E 23121 23122 23123 23123 23152 9161140832
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-29107

2T#..TA14

 1
23100-29055

T,2T..TA1#

 1
23100B - GASKET, FUEL PUMP
90923-05005

T,2T#..TA1#

 2
23100B - GASKET, FUEL PUMP
90923-05005

T,2T#..TA1#

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

T,2T#..TA1#

 1
23100D - UNION, NIPPLE(FOR FUEL OUTLET)
90404-13105

T,2T#..TA1#

 1
23116-34030

2T#..TA14

 1
23100E - UNION, NIPPLE(FOR FUEL INLET)
90404-13105

T,2T..TA1#

 1
90404-51266

2T#..TA14

 1
23121 - COVER, FUEL PUMP
23121-34020

T,2T#..TA1#

 1
23121-41030

2T#..TA14

 1
23122 - GASKET, FUEL PUMP COVER
23122-34020

T,2T#..TA1#

 1
23122-41030

2T#..TA14

 1
23123 - SCREW, COVER SET, NO.1
23123-33011

T,2T#..TA1#

 10
93319-15014

2T#..TA14

 10
23123 - SCREW, COVER SET, NO.1
23123-33011

T,2T#..TA1#

 10
93319-15014

2T#..TA14

 10
23152 - SPRING, ROCKER ARM
23152-34040

2T#..TA14

 1
23152-33010

T,2T..TA1#

 1
Common parts
91611-40832
