TA12L-MS (1972)

Toyota Carina

Production Aug 1972 - Sep 1975
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

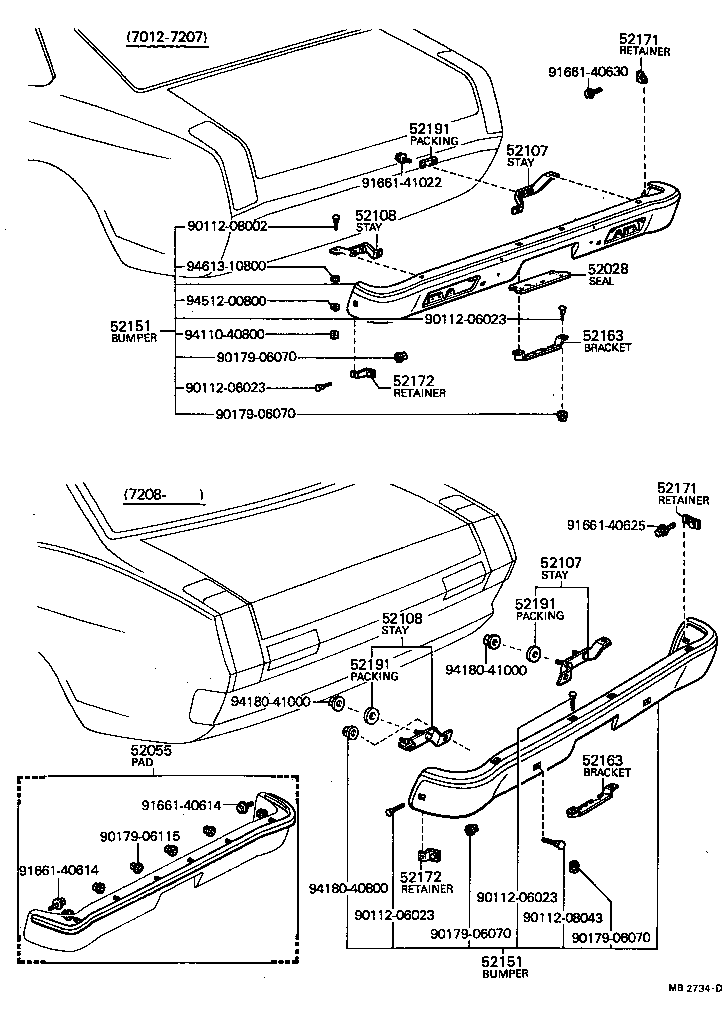

Click highlighted areas on diagram

diagram 52028 52055 52107 52107 52108 52108 52151 52151 52163 52163 52171 52171 52172 52172 52191 52191 52191 9011206023 9011206023 9011206023 9011206023 9011208002 9011208043 9017906070 9017906070 9017906070 9017906070 9017906115 9166140614 9166140614 9166140625 9166140630 9166141022 9411040800 9418040800 9418041000 9418041000 9451200800 9461310800
Part # Description Qty Price
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52181-14010

TA1#

 1
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52181-14010

TA1#

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52182-14010

TA1#

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52182-14010

TA1#

 1
52151 - BUMPER ASSY, REAR
52151-19136

TA1#

 1
52151-19156

TA1#

FOR BIG LICENSE

 1
52151-19135

TA1#

 1
52151-19155

TA1#

FOR BIG LICENSE

 1
52151 - BUMPER ASSY, REAR
52151-19136

TA1#

 1
52151-19156

TA1#

FOR BIG LICENSE

 1
52151-19135

TA1#

 1
52151-19155

TA1#

FOR BIG LICENSE

 1
52163 - BRACKET, REAR LICENSE LAMP
52163-14010

TA1#

 1
52163 - BRACKET, REAR LICENSE LAMP
52163-14010

TA1#

 1
52171 - RETAINER, REAR BUMPER SIDE, RH
52171-14010

TA1#

 1
52171 - RETAINER, REAR BUMPER SIDE, RH
52171-14010

TA1#

 1
52172 - RETAINER, REAR BUMPER SIDE, LH
52172-14010

TA1#

 1
52172 - RETAINER, REAR BUMPER SIDE, LH
52172-14010

TA1#

 1
52191 - PACKING, REAR BUMPER STAY
52191-14010

TA1#

L=100X40, T=2

 2
52191-14011

TA1#

L=120X40, T=2

 2
52191 - PACKING, REAR BUMPER STAY
52191-14010

TA1#

L=100X40, T=2

 2
52191-14011

TA1#

L=120X40, T=2

 2
52191 - PACKING, REAR BUMPER STAY
52191-14010

TA1#

L=100X40, T=2

 2
52191-14011

TA1#

L=120X40, T=2

 2
Common parts
90112-06023
90112-08002
90112-08043
90179-06070
90179-06115
91661-40614
91661-40625
91661-40630
91661-41022
94110-40800
94180-40800
94180-41000
94512-00800
94613-10800
