TA12L-KF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

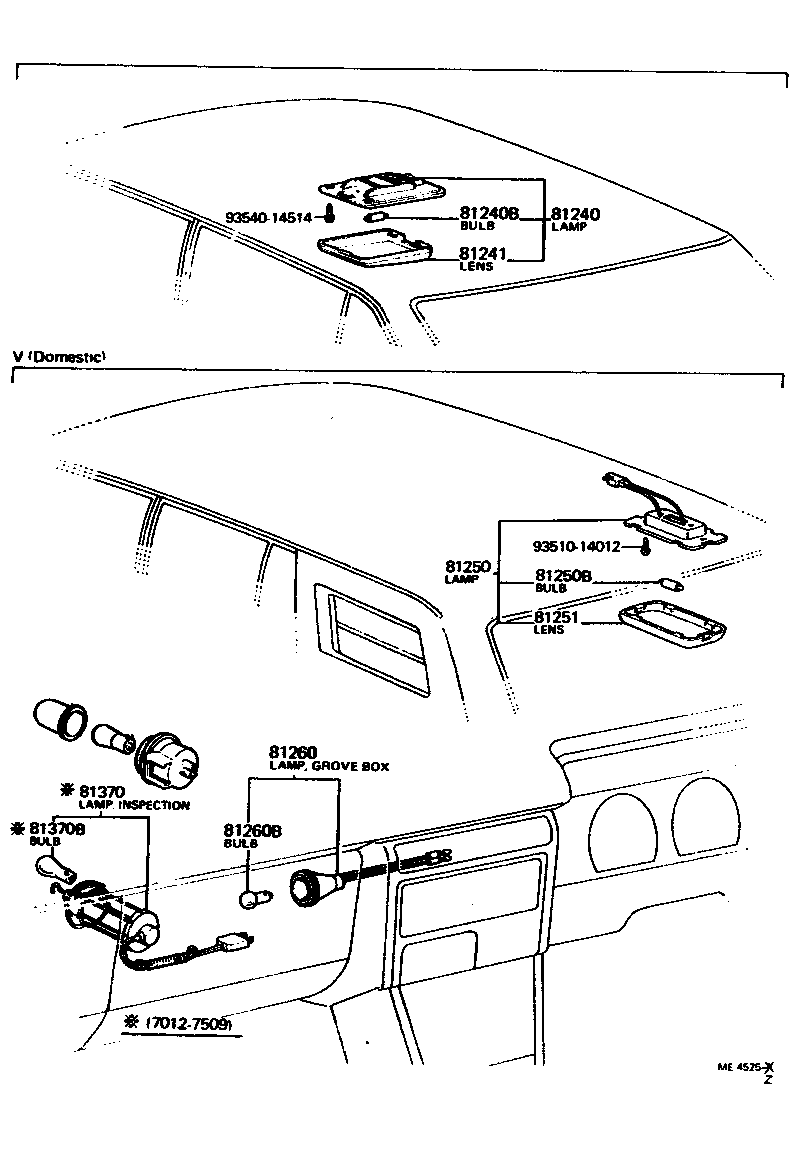

Click highlighted areas on diagram

diagram 81240 81240B 81241 81250 81250B 81251 81260 81260B 81370 81370B 9351014012 9354014514
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-3004003

TA1#

GRAY,GRAY,TRIM2#,4#,8#

 1
81240-3004001

TA1#

BLACK,BLACK,TRIM2#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11015

TA1#

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-14010

TA1#

 1
Common parts
93510-14012
93540-14514
