TA12L-KF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

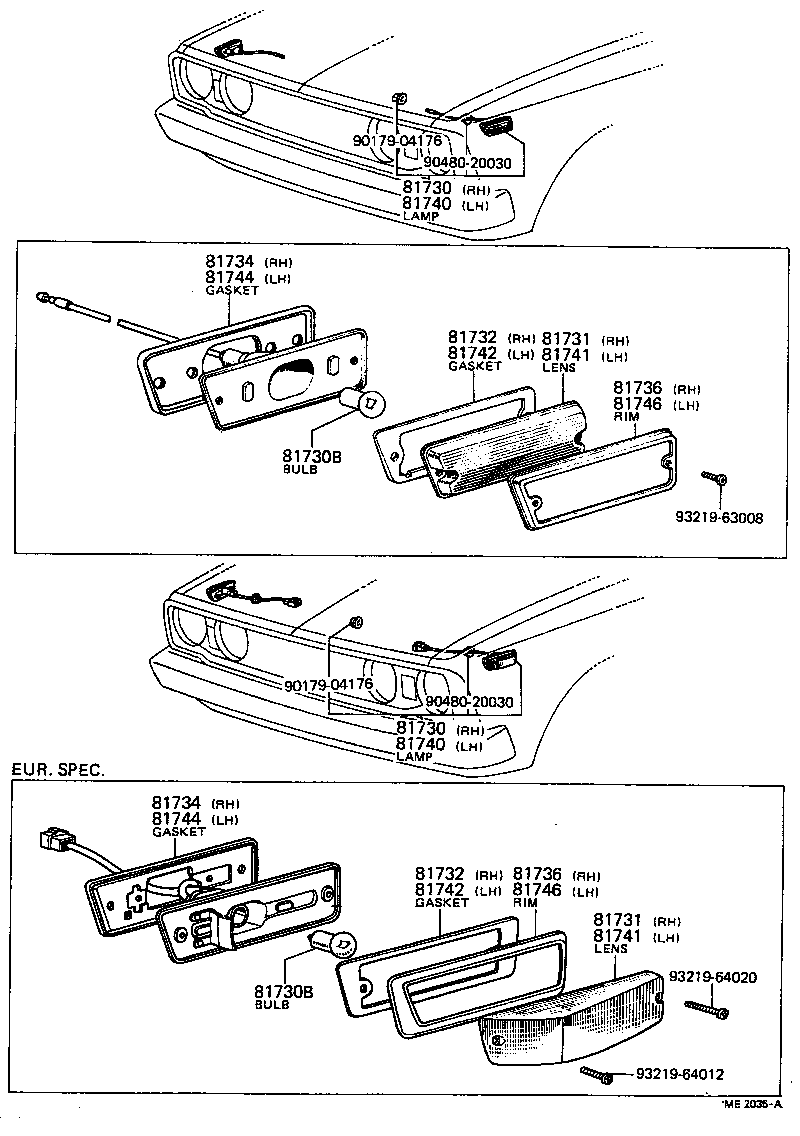

Click highlighted areas on diagram

diagram 81730 81730 81730B 81730B 81731 81731 81732 81732 81734 81734 81736 81736 81740 81740 81741 81741 81742 81742 81744 81744 81746 81746 9017904176 9017904176 9048020030 9048020030 9321963008 9321964012 9321964020
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-19105

TA1#

 1
81730-19105

TA1#

EUR.SPEC.

 1
81730-19065

TA1#

 1
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-19105

TA1#

 1
81730-19105

TA1#

EUR.SPEC.

 1
81730-19065

TA1#

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-13060

TA1#

12V 6W,12V 6W,EUR.SPEC.

 2
90981-12005

TA1#

12V 8W,12V 8W

 2
99132-13060

TA1#

12V 6W,12V 6W

 2
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-13060

TA1#

12V 6W,12V 6W,EUR.SPEC.

 2
90981-12005

TA1#

12V 8W,12V 8W

 2
99132-13060

TA1#

12V 6W,12V 6W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-14010

TA1#

 1
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-14010

TA1#

 1
81732 - GASKET, SIDE TURN SIGNAL LAMP LENS, RH
81732-14010

TA1#

 1
81732 - GASKET, SIDE TURN SIGNAL LAMP LENS, RH
81732-14010

TA1#

 1
81734 - GASKET, SIDE TURN SIGNAL LAMP BODY, RH
81734-14010

TA1#

 1
81734 - GASKET, SIDE TURN SIGNAL LAMP BODY, RH
81734-14010

TA1#

 1
81736 - RIM, SIDE TURN SIGNAL LAMP, RH
81736-14010

TA1#

 1
81736 - RIM, SIDE TURN SIGNAL LAMP, RH
81736-14010

TA1#

 1
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-19045

TA1#

 1
81740-19085

TA1#

 1
81740-19085

TA1#

EUR.SPEC.

 1
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-19045

TA1#

 1
81740-19085

TA1#

 1
81740-19085

TA1#

EUR.SPEC.

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81741-14010

TA1#

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81741-14010

TA1#

 1
81742 - GASKET, SIDE TURN SIGNAL LAMP LENS, LH
81732-14010

TA1#

 1
81742 - GASKET, SIDE TURN SIGNAL LAMP LENS, LH
81732-14010

TA1#

 1
81744 - GASKET, SIDE TURN SIGNAL LAMP BODY, LH
81744-14010

TA1#

 1
81744 - GASKET, SIDE TURN SIGNAL LAMP BODY, LH
81744-14010

TA1#

 1
81746 - RIM, SIDE TURN SIGNAL LAMP, LH
81746-14010

TA1#

 1
81746 - RIM, SIDE TURN SIGNAL LAMP, LH
81746-14010

TA1#

 1
Common parts
90179-04176
90480-20030
93219-63008
93219-64012
93219-64020
