TA12L-KF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

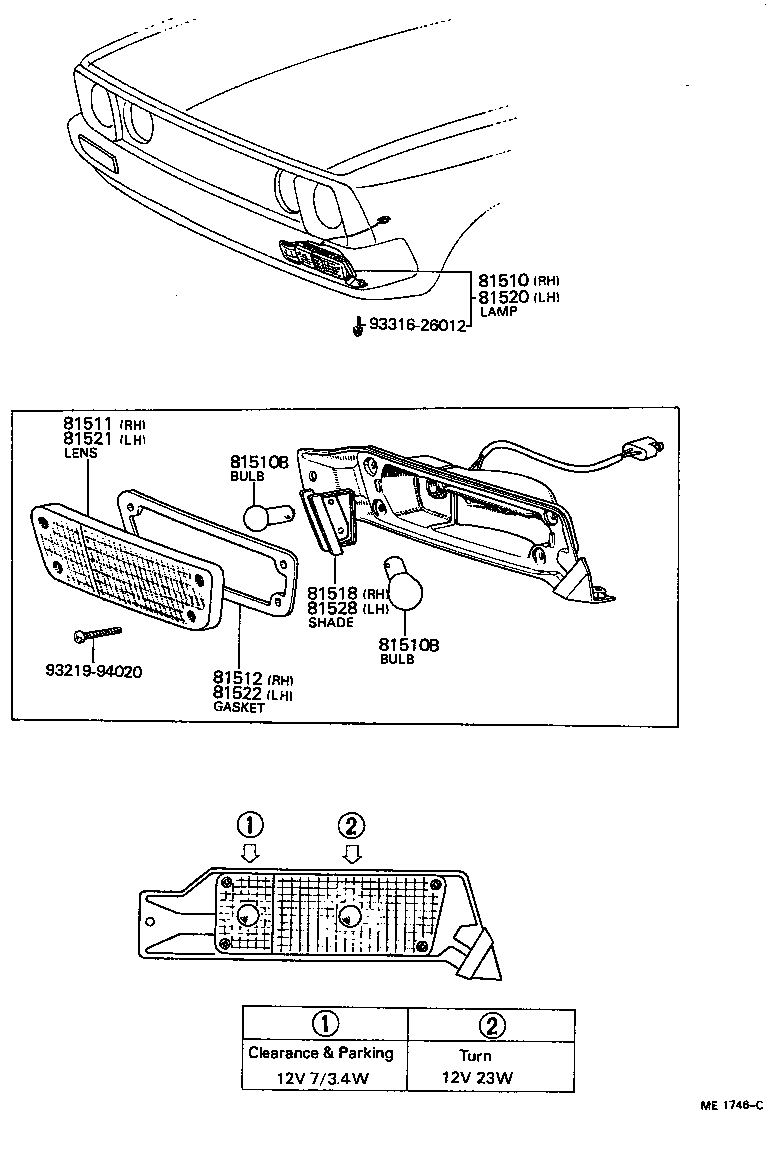

(7208-7401)

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81512 81518 81520 81521 81522 81528 9321994020 9331626012
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-19215

TA1#

EUR.SPEC.AMBER-CLEAR

 1
81510-19207

TA1#

AMBER

 1
81510-19205

TA1#

AMBER

 1
81510-19206

TA1#

AMBER-CLEAR

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

TA1#

12V 21W,12V 21W,EUR.SPEC.

 2
99132-11210

TA1#

12V 21W,12V 21W

 2
99132-21230

TA1#

12V 23/8W,12V 23/8W

 2
99132-11050

TA1#

12V 5W,12V 5W

 2
99132-11050

TA1#

12V 5W,12V 5W,EUR.SPEC.

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

TA1#

12V 21W,12V 21W,EUR.SPEC.

 2
99132-11210

TA1#

12V 21W,12V 21W

 2
99132-21230

TA1#

12V 23/8W,12V 23/8W

 2
99132-11050

TA1#

12V 5W,12V 5W

 2
99132-11050

TA1#

12V 5W,12V 5W,EUR.SPEC.

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-14011

TA1#

AMBER-CLEAR

 1
81511-14030

TA1#

EUR.SPEC.AMBER-CLEAR

 1
81511-14010

TA1#

AMBER

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-14010

TA1#

 1
81518 - SHADE, FRONT TURN SIGNAL LAMP, RH
81517-14030

TA1#

EUR.SPEC.

 1
81517-14010

TA1#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-19215

TA1#

EUR.SPEC.AMBER-CLEAR

 1
81520-19207

TA1#

AMBER

 1
81520-19205

TA1#

AMBER

 1
81520-19206

TA1#

AMBER-CLEAR

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-14010

TA1#

AMBER

 1
81521-14030

TA1#

EUR.SPEC.AMBER-CLEAR

 1
81521-14011

TA1#

AMBER-CLEAR

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81522-14010

TA1#

 1
81528 - SHADE, FRONT TURN SIGNAL LAMP, LH
81527-14030

TA1#

EUR.SPEC.

 1
81527-14010

TA1#

 1
Common parts
93219-94020
93316-26012

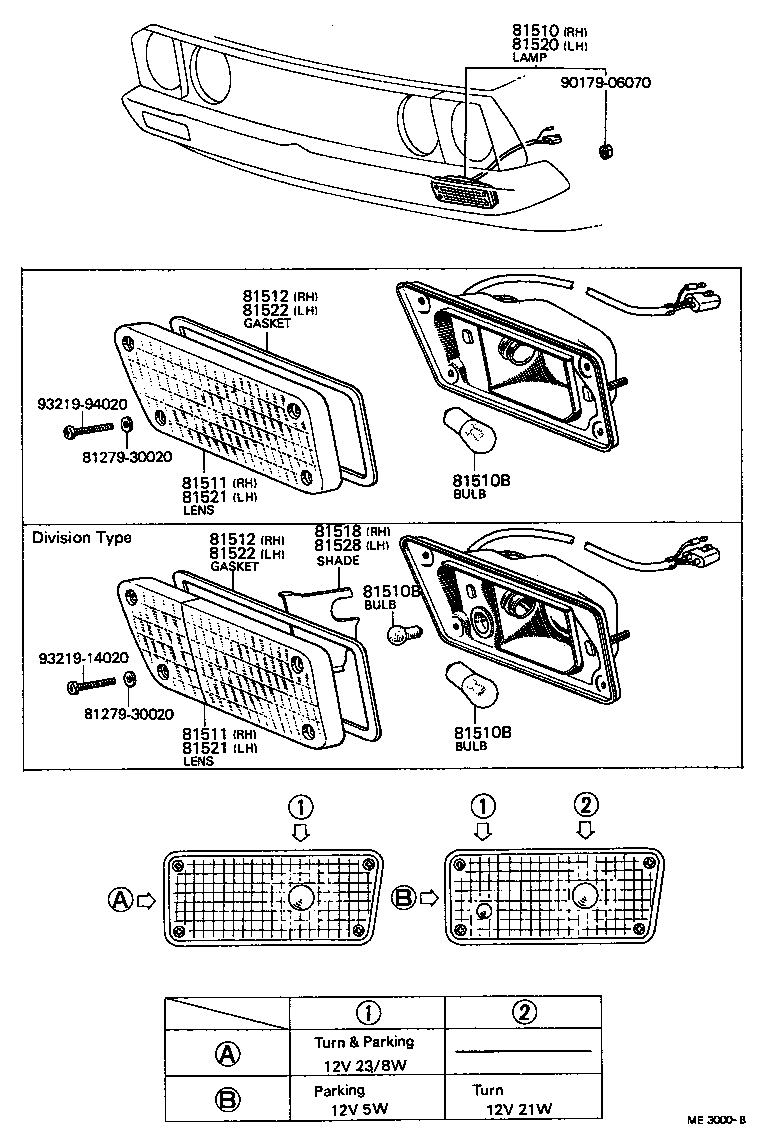

(7012-7207)

Click highlighted areas on diagram

diagram 8127930020 8127930020 81510 81510B 81510B 81510B 81511 81511 81512 81512 81518 81520 81521 81521 81522 81522 81528 9017906070 9321914020 9321994020
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-19215

TA1#

EUR.SPEC.AMBER-CLEAR

 1
81510-19207

TA1#

AMBER

 1
81510-19205

TA1#

AMBER

 1
81510-19206

TA1#

AMBER-CLEAR

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

TA1#

12V 21W,12V 21W,EUR.SPEC.

 2
99132-11210

TA1#

12V 21W,12V 21W

 2
99132-21230

TA1#

12V 23/8W,12V 23/8W

 2
99132-11050

TA1#

12V 5W,12V 5W

 2
99132-11050

TA1#

12V 5W,12V 5W,EUR.SPEC.

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

TA1#

12V 21W,12V 21W,EUR.SPEC.

 2
99132-11210

TA1#

12V 21W,12V 21W

 2
99132-21230

TA1#

12V 23/8W,12V 23/8W

 2
99132-11050

TA1#

12V 5W,12V 5W

 2
99132-11050

TA1#

12V 5W,12V 5W,EUR.SPEC.

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

TA1#

12V 21W,12V 21W,EUR.SPEC.

 2
99132-11210

TA1#

12V 21W,12V 21W

 2
99132-21230

TA1#

12V 23/8W,12V 23/8W

 2
99132-11050

TA1#

12V 5W,12V 5W

 2
99132-11050

TA1#

12V 5W,12V 5W,EUR.SPEC.

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-14011

TA1#

AMBER-CLEAR

 1
81511-14030

TA1#

EUR.SPEC.AMBER-CLEAR

 1
81511-14010

TA1#

AMBER

 1
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-14011

TA1#

AMBER-CLEAR

 1
81511-14030

TA1#

EUR.SPEC.AMBER-CLEAR

 1
81511-14010

TA1#

AMBER

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-14010

TA1#

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-14010

TA1#

 1
81518 - SHADE, FRONT TURN SIGNAL LAMP, RH
81517-14030

TA1#

EUR.SPEC.

 1
81517-14010

TA1#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-19215

TA1#

EUR.SPEC.AMBER-CLEAR

 1
81520-19207

TA1#

AMBER

 1
81520-19205

TA1#

AMBER

 1
81520-19206

TA1#

AMBER-CLEAR

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-14010

TA1#

AMBER

 1
81521-14030

TA1#

EUR.SPEC.AMBER-CLEAR

 1
81521-14011

TA1#

AMBER-CLEAR

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-14010

TA1#

AMBER

 1
81521-14030

TA1#

EUR.SPEC.AMBER-CLEAR

 1
81521-14011

TA1#

AMBER-CLEAR

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81522-14010

TA1#

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81522-14010

TA1#

 1
81528 - SHADE, FRONT TURN SIGNAL LAMP, LH
81527-14030

TA1#

EUR.SPEC.

 1
81527-14010

TA1#

 1
Common parts
81279-30020
90179-06070
93219-14020
93219-94020
