TA12L-KF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

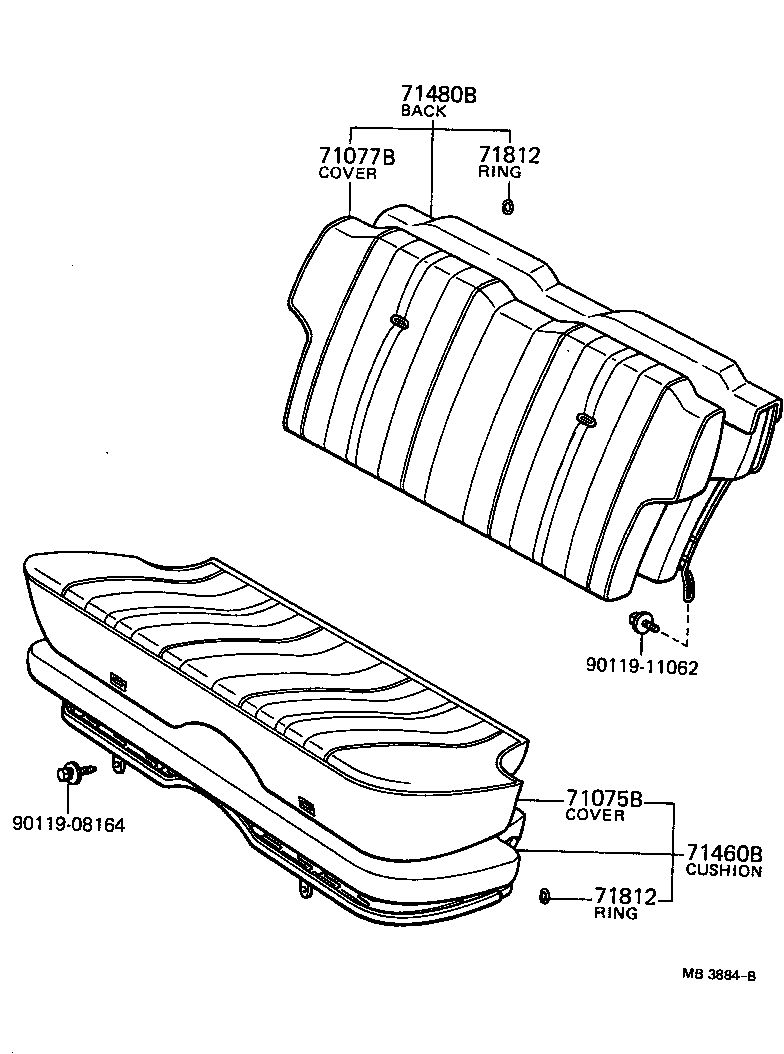

Click highlighted areas on diagram

diagram 71075B 71077B 71460B 71480B 71812 71812 9011908164 9011911062
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-1408004

TA1#..4D

PF.BLUE,BLUE,TRIM8#

 1
71075-1408001

TA1#..4D

PF.BLACK,BLACK,TRIM2#

 1
71075-1408008

TA1#..4D

PF.IVORY,IVORY,TRIM0#

 1
71075-1408009

TA1#..4D

PF.GOLD,YELLOW

 1
71075-1405001

TA1#..STD..4D

VL.BLACK,BLACK,TRIM2#

 1
71075-1408006

TA1#..4D

PF.BROWN,BROWN,TRIM4#

 1
71075-1405106

TA12..STD..4D

VL.OLIVE- BROWN,BROWN,TRIM4#

 1
71075-1405101

TA12..STD..4D

VL.BLACK,BLACK,TRIM2#

 1
71075-1405104

TA12..STD..4D

VL.BLUE M.,BLUE,TRIM8#

 1
71075-1408101

TA1#..4D

PF.BLACK,BLACK,TRIM2#

 1
71075-1408106

TA1#..4D

PF.OLIVE- BROWN,BROWN,TRIM4#

 1
71075-1408104

TA1#..4D

PF.BLUE M.,BLUE,TRIM8#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-1404006

TA1#

PF.BROWN,BROWN,TRIM4#

 1
71077-1401104

TA12..ST,STD

VL.BLUE M.,BLUE,TRIM8#

 1
71077-1404008

TA1#

PF.IVORY,IVORY,TRIM0#

 1
71077-1404009

TA1#

PF.GOLD,YELLOW

 1
71077-1404004

TA1#

PF.BLUE,BLUE,TRIM8#

 1
71077-1401001

TA1#..STD

VL.BLACK,BLACK,TRIM2#

 1
71077-1404104

TA1#

PF.BLUE M.,BLUE,TRIM8#

 1
71077-1404101

TA1#

PF.BLACK,BLACK,TRIM2#

 1
71077-1401201

TA12..ST,STD

VL.BLACK,BLACK,TRIM2#

 1
71077-1401106

TA12..ST,STD

VL.OLIVE- BROWN,BROWN,TRIM4#

 1
71077-1404106

TA1#

PF.OLIVE- BROWN,BROWN,TRIM4#

 1
71077-1401101

TA12..ST,STD

VL.BLACK,BLACK,TRIM2#

 1
71077-1404001

TA1#

PF.BLACK,BLACK,TRIM2#

 1
71077-1401208

TA12..ST,STD

VL.IVORY,IVORY,TRIM0#

 1
71077-1401206

TA12..ST,STD

VL.BROWN,BROWN,TRIM4#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1408001

TA1#..4D

PF.BLACK,TRIM2#

 1
71460-1405001

TA1#..STD..4D

VL.BLACK,TRIM2#

 1
71460-1408004

TA1#..4D

PF.BLUE,TRIM8#

 1
71460-1408009

TA1#..4D

PF.GOLD

 1
71460-1405101

TA12..STD..4D

VL.BLACK,BLACK,TRIM2#

 1
71460-1405104

TA12..STD..4D

VL.BLUE M.,BLUE,TRIM8#

 1
71460-1405106

TA12..STD..4D

VL.OLIVE- BROWN,BROWN,TRIM4#

 1
71460-1408006

TA1#..4D

PF.BROWN,TRIM4#

 1
71460-1408008

TA1#..4D

PF.IVORY,TRIM0#

 1
71460-1408101

TA1#..4D

PF.BLACK,BLACK,TRIM2#

 1
71460-1408106

TA1#..4D

PF.OLIVE- BROWN,BROWN,TRIM4#

 1
71460-1408104

TA1#..4D

PF.BLUE M.,BLUE,TRIM8#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-1401001

TA1#..STD

VL.BLACK,BLACK,TRIM2#

 1
71480-1404101

TA1#

PF.BLACK,BLACK,TRIM2#

 1
71480-1401106

TA12..ST,STD

VL.OLIVE- BROWN,BROWN,TRIM4#

 1
71480-1404001

TA1#

PF.BLACK,BLACK,TRIM2#

 1
71480-1401101

TA12..ST,STD

VL.BLACK,BLACK,TRIM2#

 1
71480-1404008

TA1#

PF.IVORY,IVORY,TRIM0#

 1
71480-1401104

TA12..ST,STD

VL.BLUE M.,BLUE,TRIM8#

 1
71480-1404004

TA1#

PF.BLUE,BLUE,TRIM8#

 1
71480-1404104

TA1#

PF.BLUE M.,BLUE,TRIM8#

 1
71480-1404006

TA1#

PF.BROWN,BROWN,TRIM4#

 1
71480-1404106

TA1#

PF.OLIVE- BROWN,BROWN,TRIM4#

 1
71480-1404009

TA1#

PF.GOLD,YELLOW

 1
71480-1401208

TA12..ST,STD

VL.IVORY,IVORY,TRIM0#

 1
71480-1401206

TA12..ST,STD

VL.BROWN,BROWN,TRIM4#

 1
71480-1401201

TA12..ST,STD

VL.BLACK,BLACK,TRIM2#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

TA1#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

TA1#

 1
Common parts
90119-08164
90119-11062
