TA12L-KF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

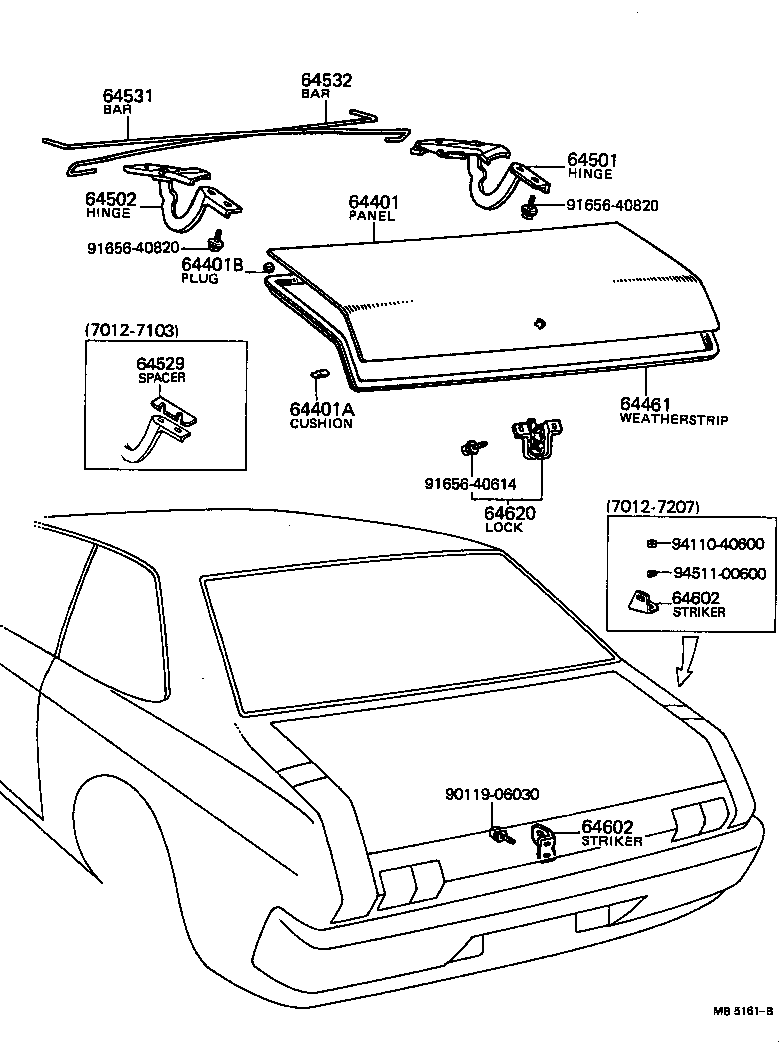

Click highlighted areas on diagram

diagram 64401 64401A 64401B 64461 64501 64502 64529 64531 64532 64602 64602 64620 9011906030 9165640614 9165640820 9165640820 9411040600 9451100600
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-14010

TA1#

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06074

TA1#

 2
64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90950-01058

TA1#

OD=5

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-14010

TA1#

 1
64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-14010

TA1#

 1
64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-14010

TA1#

 1
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-14010

TA1#

T=1.0

 4
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-14010

TA1#

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-14010

TA1#

 1
64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64621-14010

TA1#

 1
64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64621-14010

TA1#

 1
64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64620-19065

TA1#

 1
Common parts
90119-06030
91656-40614
91656-40820
94110-40600
94511-00600
