TA12L-KF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

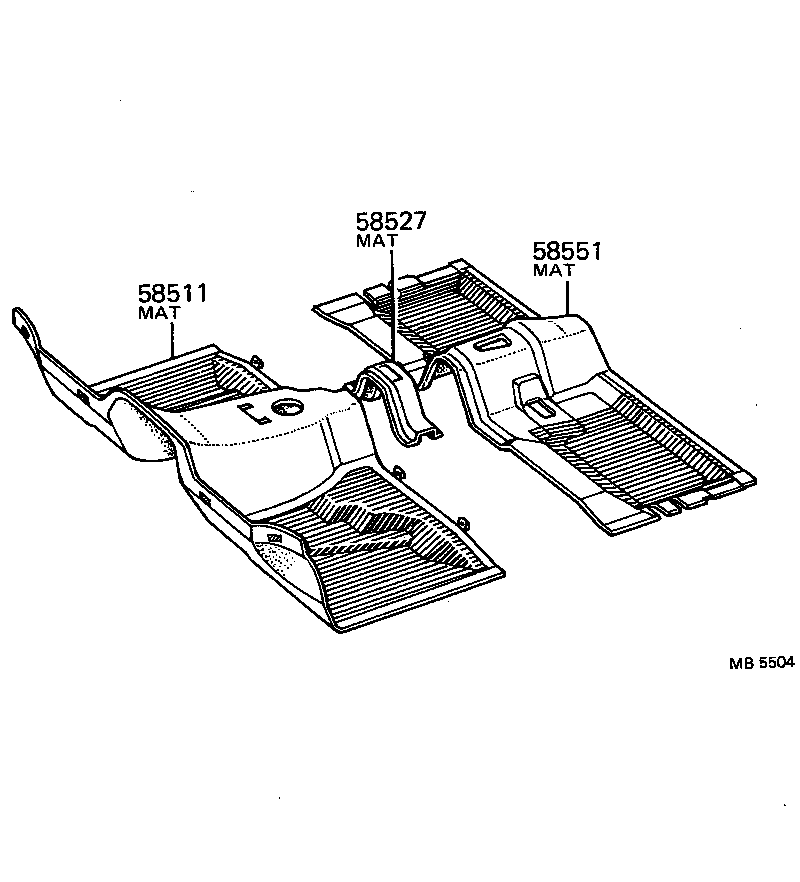

Click highlighted areas on diagram

diagram 58511 58527 58551
Part # Description Qty Price
58511 - MAT, FLOOR, FRONT
58510-14050

TA1#..LHD..(ST,STD)

FOR CONSOLE

 1
58510-14040

TA1#..LHD..4F..STD

 1
58527 - MAT, CENTER FLOOR CROSSMEMBER
58531-14010

TA1#..ST,STD

 1
58551 - MAT, FLOOR, REAR
58551-14020

TA1#..STD

 1
58551-14011

TA12..ST,STD

FOR BELT.

 1
58551-14021

TA12..ST,STD

 1
58551-14010

TA1#..STD

FOR BELT.

 1
