TA12L-KF (1970)
Toyota Carina
Production
Dec 1970
-
Sep 1975
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7707)

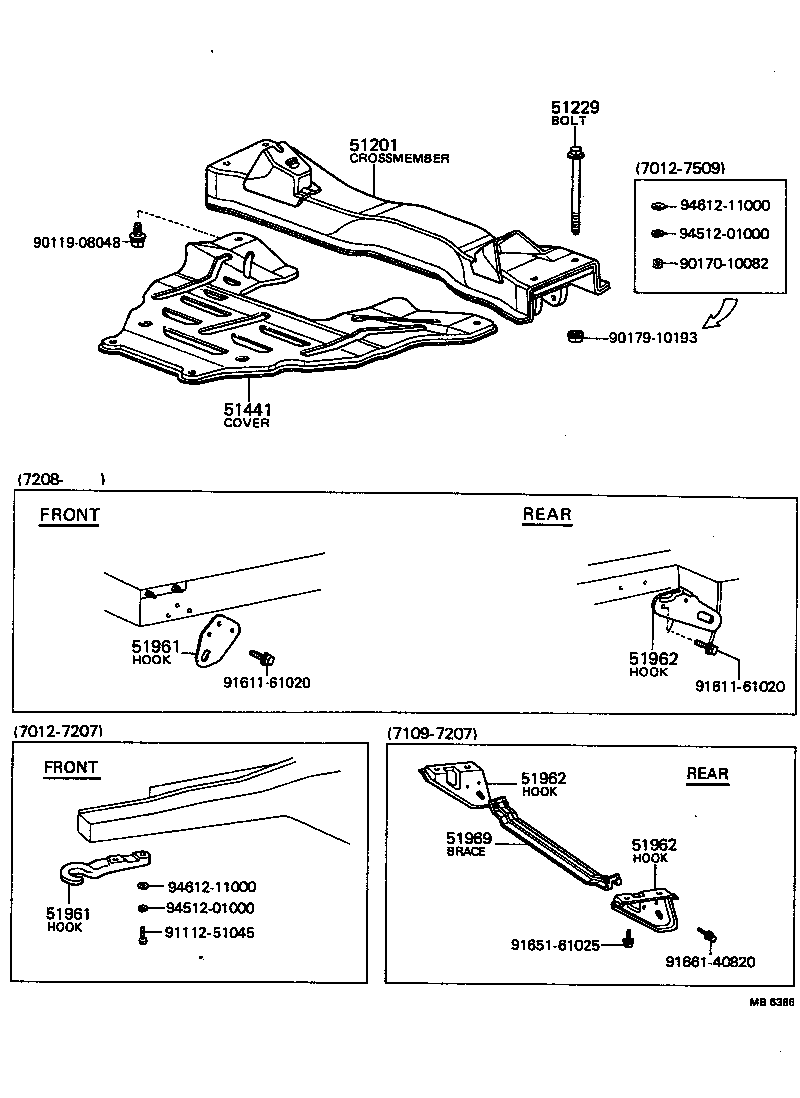

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-14010 |
TA1# |
1 | ||
| 51229 - BOLT, SUSPENSION MEMBER SET | ||||
| 90105-10014 |
TA1# |
4 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-14010 |
TA1# |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51961-14010 |
TA1# |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51961-14010 |
TA1# |
1 | ||
| 51962 - HOOK, NO.2 | ||||
| 51968-14010 |
TA1# LH. |
1 | ||
| 51968-14020 |
TA1# LH. |
1 | ||
| 51968-14030 |
TA1# LH. |
1 | ||
| 51966-14010 |
TA1# LH. |
1 | ||
| 51965-14010 |
TA1# RH. |
1 | ||
| 51962 - HOOK, NO.2 | ||||
| 51968-14010 |
TA1# LH. |
1 | ||
| 51968-14020 |
TA1# LH. |
1 | ||
| 51968-14030 |
TA1# LH. |
1 | ||
| 51966-14010 |
TA1# LH. |
1 | ||
| 51965-14010 |
TA1# RH. |
1 | ||
| 51962 - HOOK, NO.2 | ||||
| 51968-14010 |
TA1# LH. |
1 | ||
| 51968-14020 |
TA1# LH. |
1 | ||
| 51968-14030 |
TA1# LH. |
1 | ||
| 51966-14010 |
TA1# LH. |
1 | ||
| 51965-14010 |
TA1# RH. |
1 | ||
| 51969 - BRACE, HOOK | ||||
| 51969-14010 |
TA1# |
1 | ||
| Common parts | ||||
| 90119-08048 | ||||
| 90170-10082 | ||||
| 90179-10193 | ||||
| 91112-51045 | ||||
| 91611-61020 | ||||
| 91651-61025 | ||||
| 91661-40820 | ||||
| 94512-01000 | ||||
| 94612-11000 | ||||
