Toyota Carina TA12 CARBURETOR ASSEMBLY

TA12L-KF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975

Engine 2T

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

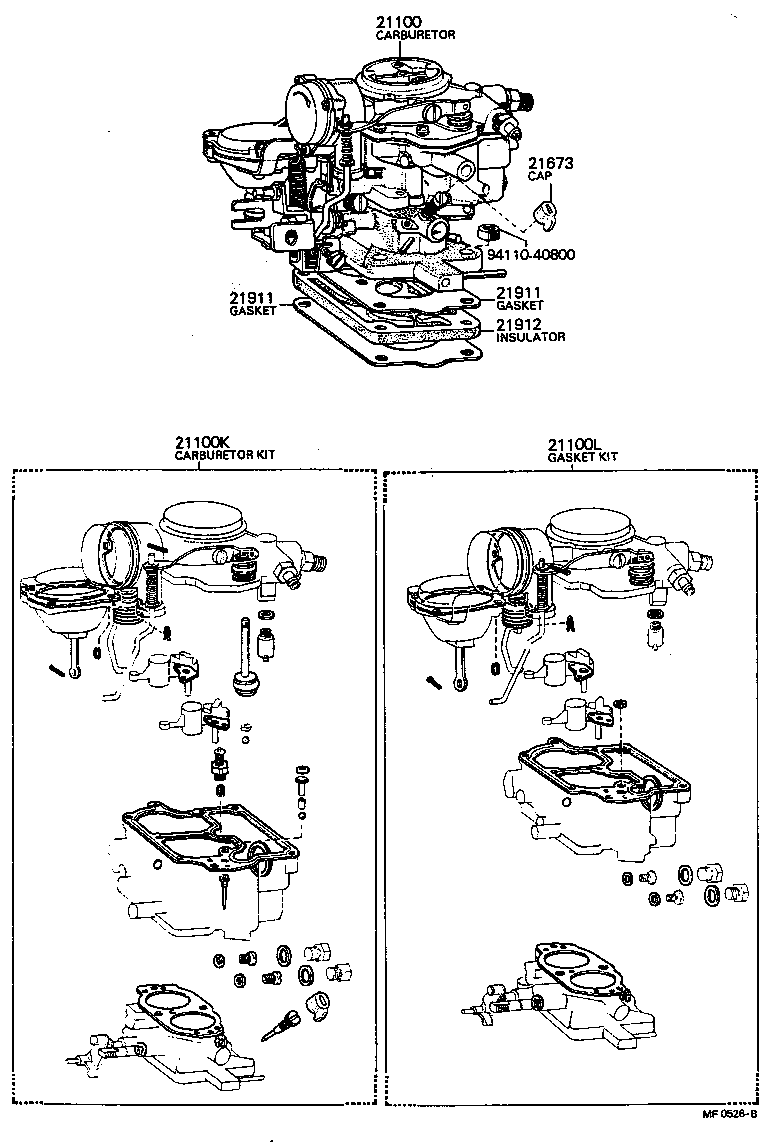

Click highlighted areas on diagram

Part #	Description	Period	Qty
21100 - CARBURETOR ASSY
21100-26010	2T..TA12	12/1970 - 01/1971	1
21100-26011	2T..TA12	01/1971 - 02/1972	1
21100-26012	2T..TA12	02/1972 - 07/1972	1
21100-26110	2T..TA12..4F	09/1973 - 01/1974	1
21100-26111	2T..TA12..4F	01/1974 - 04/1974	1
21100-26112	2T..TA12..4F	04/1974 - 09/1975	1
21100-26014	2T..TA12	10/1972 - 04/1973	1
21100-26013	2T..TA12	08/1972 - 10/1972	1
21100-26110	2T..TA12	04/1973 - 09/1973	1
21100K - CARBURETOR KIT
04211-26010	2T..TA12	12/1970 - 07/1972	1
04211-26012	2T..TA12	04/1973 - 09/1973	1
04211-26011	2T..TA12	08/1972 - 04/1973	1
04211-26050	2T..TA12	09/1973 - 09/1975	1
21100L - GASKET KIT, CARBURETOR
04212-25010	T,2T..TA1#	12/1970 - 07/1972	1
04212-25011	T,2T#..TA1#	08/1972 - 09/1973	2
04212-26010	T,2T..TA1#	09/1973 - 09/1975	1
21673 - CAP, IDLE LIMIT
21673-36010	T,2T#..TA1#	01/1971 - 09/1975	2
21911 - GASKET, CARBURETOR
21911-25010	T,2T#..TA1#	12/1970 - 09/1975	2
21911 - GASKET, CARBURETOR
21911-25010	T,2T#..TA1#	12/1970 - 09/1975	2
21912 - INSULATOR, CARBURETOR HEAT
21912-25010	T,2T..TA1#	12/1970 - 09/1975	1
Common parts
94110-40800

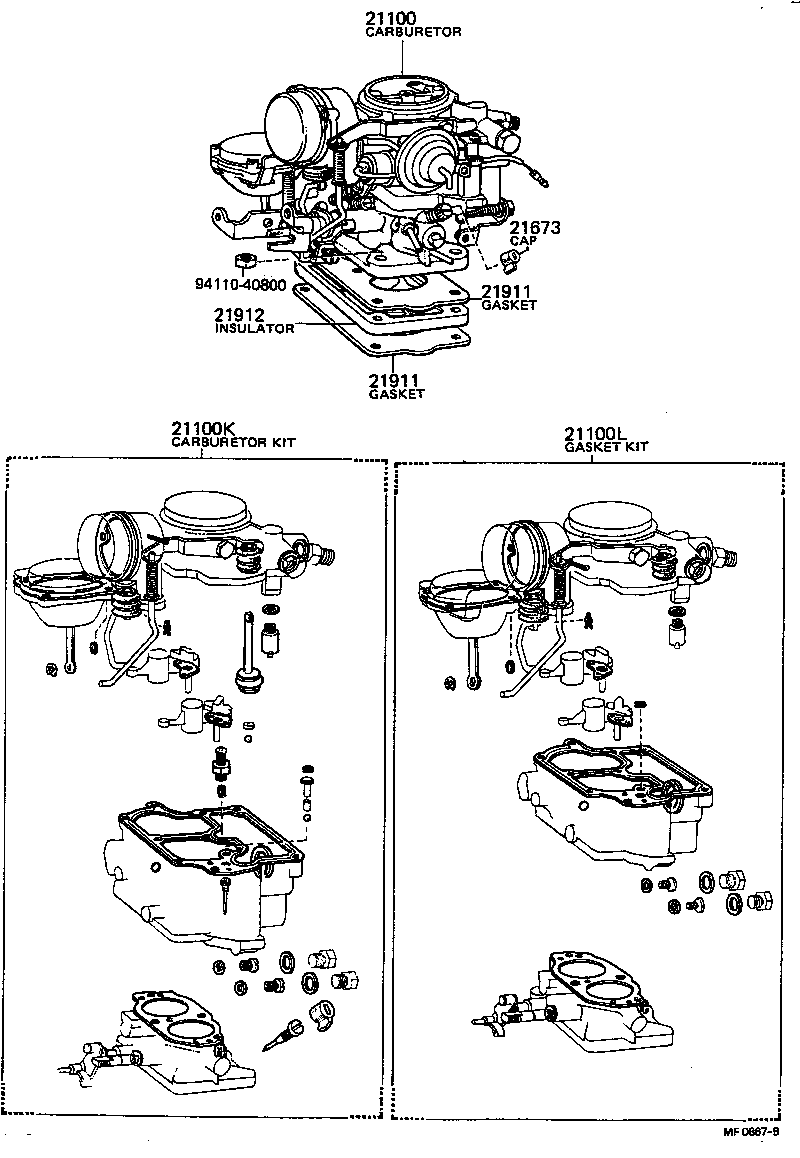

Click highlighted areas on diagram

Part #	Description	Period	Qty
21100 - CARBURETOR ASSY
21100-26010	2T..TA12	12/1970 - 01/1971	1
21100-26011	2T..TA12	01/1971 - 02/1972	1
21100-26012	2T..TA12	02/1972 - 07/1972	1
21100-26110	2T..TA12..4F	09/1973 - 01/1974	1
21100-26111	2T..TA12..4F	01/1974 - 04/1974	1
21100-26112	2T..TA12..4F	04/1974 - 09/1975	1
21100-26014	2T..TA12	10/1972 - 04/1973	1
21100-26013	2T..TA12	08/1972 - 10/1972	1
21100-26110	2T..TA12	04/1973 - 09/1973	1
21100K - CARBURETOR KIT
04211-26010	2T..TA12	12/1970 - 07/1972	1
04211-26012	2T..TA12	04/1973 - 09/1973	1
04211-26011	2T..TA12	08/1972 - 04/1973	1
04211-26050	2T..TA12	09/1973 - 09/1975	1
21100L - GASKET KIT, CARBURETOR
04212-25010	T,2T..TA1#	12/1970 - 07/1972	1
04212-25011	T,2T#..TA1#	08/1972 - 09/1973	2
04212-26010	T,2T..TA1#	09/1973 - 09/1975	1
21673 - CAP, IDLE LIMIT
21673-36010	T,2T#..TA1#	01/1971 - 09/1975	2
21911 - GASKET, CARBURETOR
21911-25010	T,2T#..TA1#	12/1970 - 09/1975	2
21911 - GASKET, CARBURETOR
21911-25010	T,2T#..TA1#	12/1970 - 09/1975	2
21912 - INSULATOR, CARBURETOR HEAT
21912-25010	T,2T..TA1#	12/1970 - 09/1975	1
Common parts
94110-40800

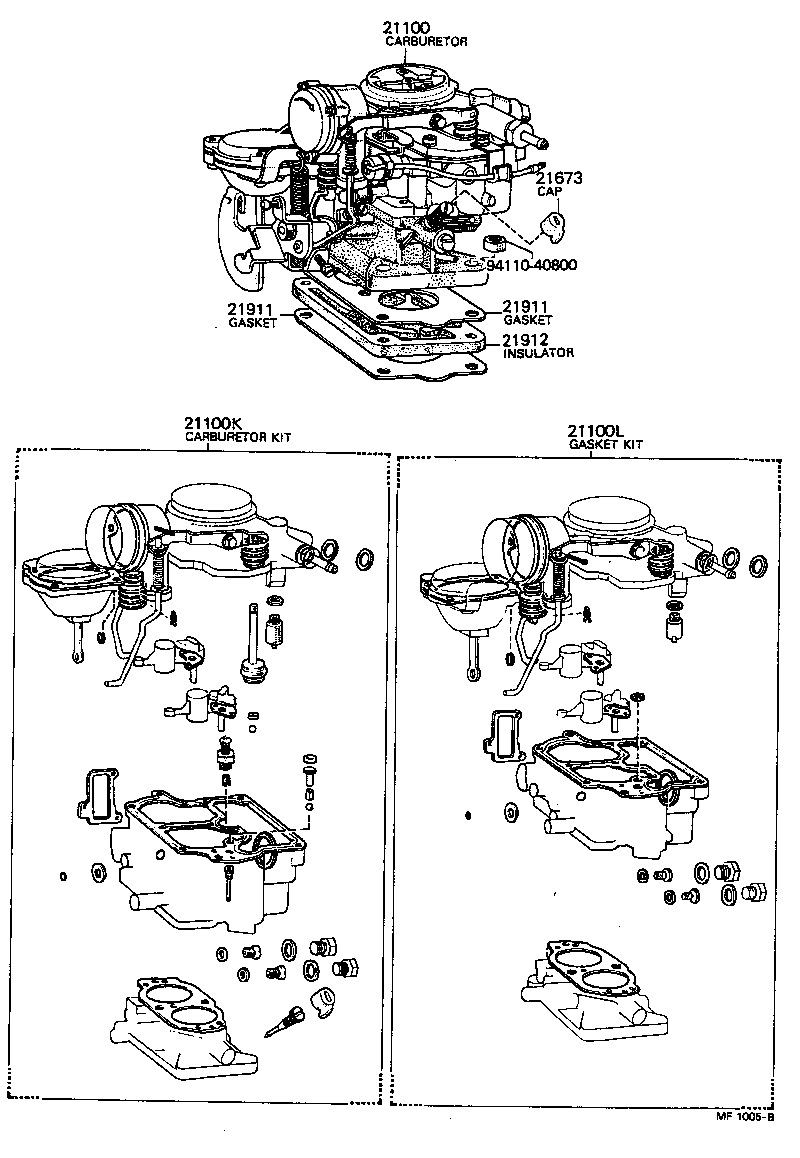

Click highlighted areas on diagram

Part #	Description	Period	Qty
21100 - CARBURETOR ASSY
21100-26010	2T..TA12	12/1970 - 01/1971	1
21100-26011	2T..TA12	01/1971 - 02/1972	1
21100-26012	2T..TA12	02/1972 - 07/1972	1
21100-26110	2T..TA12..4F	09/1973 - 01/1974	1
21100-26111	2T..TA12..4F	01/1974 - 04/1974	1
21100-26112	2T..TA12..4F	04/1974 - 09/1975	1
21100-26014	2T..TA12	10/1972 - 04/1973	1
21100-26013	2T..TA12	08/1972 - 10/1972	1
21100-26110	2T..TA12	04/1973 - 09/1973	1
21100K - CARBURETOR KIT
04211-26010	2T..TA12	12/1970 - 07/1972	1
04211-26012	2T..TA12	04/1973 - 09/1973	1
04211-26011	2T..TA12	08/1972 - 04/1973	1
04211-26050	2T..TA12	09/1973 - 09/1975	1
21100L - GASKET KIT, CARBURETOR
04212-25010	T,2T..TA1#	12/1970 - 07/1972	1
04212-25011	T,2T#..TA1#	08/1972 - 09/1973	2
04212-26010	T,2T..TA1#	09/1973 - 09/1975	1
21673 - CAP, IDLE LIMIT
21673-36010	T,2T#..TA1#	01/1971 - 09/1975	2
21911 - GASKET, CARBURETOR
21911-25010	T,2T#..TA1#	12/1970 - 09/1975	2
21911 - GASKET, CARBURETOR
21911-25010	T,2T#..TA1#	12/1970 - 09/1975	2
21912 - INSULATOR, CARBURETOR HEAT
21912-25010	T,2T..TA1#	12/1970 - 09/1975	1
Common parts
94110-40800
