TA12L-KDF (1970)
Toyota Carina
Production
Dec 1970
-
Sep 1975
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7509)

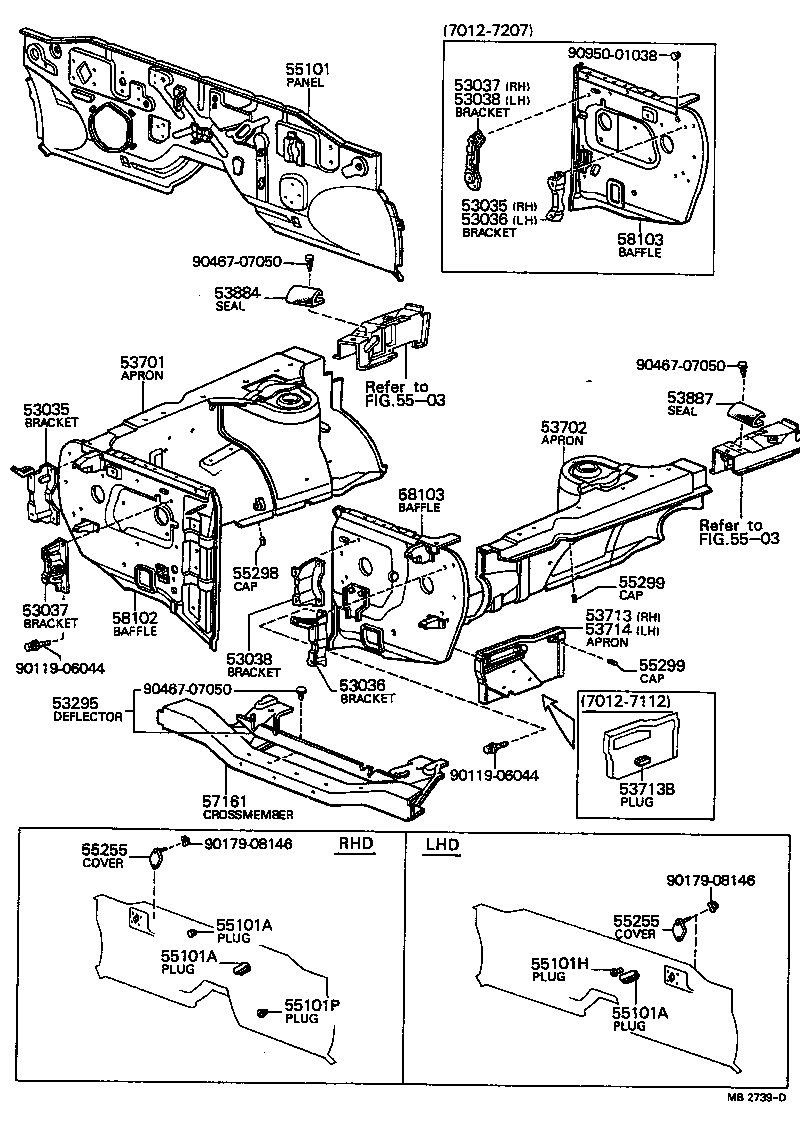

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53035 - BRACKET SUB-ASSY, HEADLAMP, OUTER RH | ||||
| 53035-14010 |
TA1# |
1 | ||
| 53225-14010 |
TA1# |
1 | ||
| 53035 - BRACKET SUB-ASSY, HEADLAMP, OUTER RH | ||||
| 53035-14010 |
TA1# |
1 | ||
| 53225-14010 |
TA1# |
1 | ||
| 53036 - BRACKET SUB-ASSY, HEADLAMP, OUTER LH | ||||
| 53226-14010 |
TA1# |
1 | ||
| 53036-14010 |
TA1# |
1 | ||
| 53036 - BRACKET SUB-ASSY, HEADLAMP, OUTER LH | ||||
| 53226-14010 |
TA1# |
1 | ||
| 53036-14010 |
TA1# |
1 | ||
| 53037 - BRACKET SUB-ASSY, HEADLAMP, INNER RH | ||||
| 53233-14011 |
TA1# |
1 | ||
| 53233-14010 |
TA1# |
1 | ||
| 53037 - BRACKET SUB-ASSY, HEADLAMP, INNER RH | ||||
| 53233-14011 |
TA1# |
1 | ||
| 53233-14010 |
TA1# |
1 | ||
| 53038 - BRACKET SUB-ASSY, HEADLAMP, INNER LH | ||||
| 53234-14040 |
TA1# |
1 | ||
| 53233-14011 |
TA1# |
1 | ||
| 53234-14010 |
TA1# |
1 | ||
| 53038 - BRACKET SUB-ASSY, HEADLAMP, INNER LH | ||||
| 53234-14040 |
TA1# |
1 | ||
| 53233-14011 |
TA1# |
1 | ||
| 53234-14010 |
TA1# |
1 | ||
| 53295 - DEFLECTOR, RADIATOR LOWER AIR | ||||
| 53295-14901 |
TA1# |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-14020 |
TA1#..LHD |
1 | ||
| 53701-14021 |
TA1#..LHD |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-14020 |
TA1#..LHD |
1 | ||
| 53702-14022 |
TA1#..LHD |
1 | ||
| 53702-14021 |
TA1#..LHD |
1 | ||
| 53713 - APRON, FENDER SIDE, RH | ||||
| 53073-14010 |
TA1# |
1 | ||
| 53073-14011 |
TA1# |
1 | ||
| 53073-14012 |
TA1# |
1 | ||
| 53713B - PLUG, HOLE(FOR FENDER SIDE APRON) | ||||
| 90950-01107 |
TA1# |
2 | ||
| 53714 - APRON, FENDER SIDE, LH | ||||
| 53074-14010 |
TA1# |
1 | ||
| 53074-14011 |
TA1# |
1 | ||
| 53884 - SEAL, FRONT FENDER SPLASH SHIELD, RH | ||||
| 53888-14010 |
TA1# |
1 | ||
| 53887 - SEAL, FRONT FENDER SPLASH SHIELD, LH | ||||
| 53889-14010 |
TA1# |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-14020 |
TA1#..LHD |
1 | ||
| 55101-14021 |
TA1#..LHD..(DLX,STD) |
1 | ||
| 55101A - PLUG, HOLE, NO.1(FOR DASH PANEL) | ||||
| 90950-01047 |
TA1# L/HEATER OD=30X60 |
1 | ||
| 55101A - PLUG, HOLE, NO.1(FOR DASH PANEL) | ||||
| 90950-01047 |
TA1# L/HEATER OD=30X60 |
1 | ||
| 55101A - PLUG, HOLE, NO.1(FOR DASH PANEL) | ||||
| 90950-01047 |
TA1# L/HEATER OD=30X60 |
1 | ||
| 55101H - PLUG, HOLE, NO.2(FOR DASH PANEL) | ||||
| 90950-01105 |
TA1#..LHD OD=6 |
4 | ||
| 55298 - CAP, TEE NUT(FOR 8MM) | ||||
| 55298-30010 |
TA1# |
2 | ||
| 55299 - CAP, TEE NUT(FOR 6MM) | ||||
| 55299-30010 |
TA1# |
2 | ||
| 55299 - CAP, TEE NUT(FOR 6MM) | ||||
| 55299-30010 |
TA1# |
2 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57104-14010 |
TA1# |
1 | ||
| 58102 - BAFFLE SUB-ASSY, RADIATOR SIDE, RH | ||||
| 53203-14010 |
TA1# |
1 | ||
| 53203-14011 |
TA1# |
1 | ||
| 58103 - BAFFLE SUB-ASSY,RADIATOR SIDE, LH | ||||
| 53204-14011 |
TA1# |
1 | ||
| 53204-14012 |
TA1# |
1 | ||
| 53204-14010 |
TA1# |
1 | ||
| 58103 - BAFFLE SUB-ASSY,RADIATOR SIDE, LH | ||||
| 53204-14011 |
TA1# |
1 | ||
| 53204-14012 |
TA1# |
1 | ||
| 53204-14010 |
TA1# |
1 | ||
| Common parts | ||||
| 90119-06044 | ||||
| 90179-08146 | ||||
| 90467-07050 | ||||
| 90950-01038 | ||||
| Linked diagrams | ||||
| 5503 | ||||
