TA12L-KDF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)4F ; (7012- )3FC

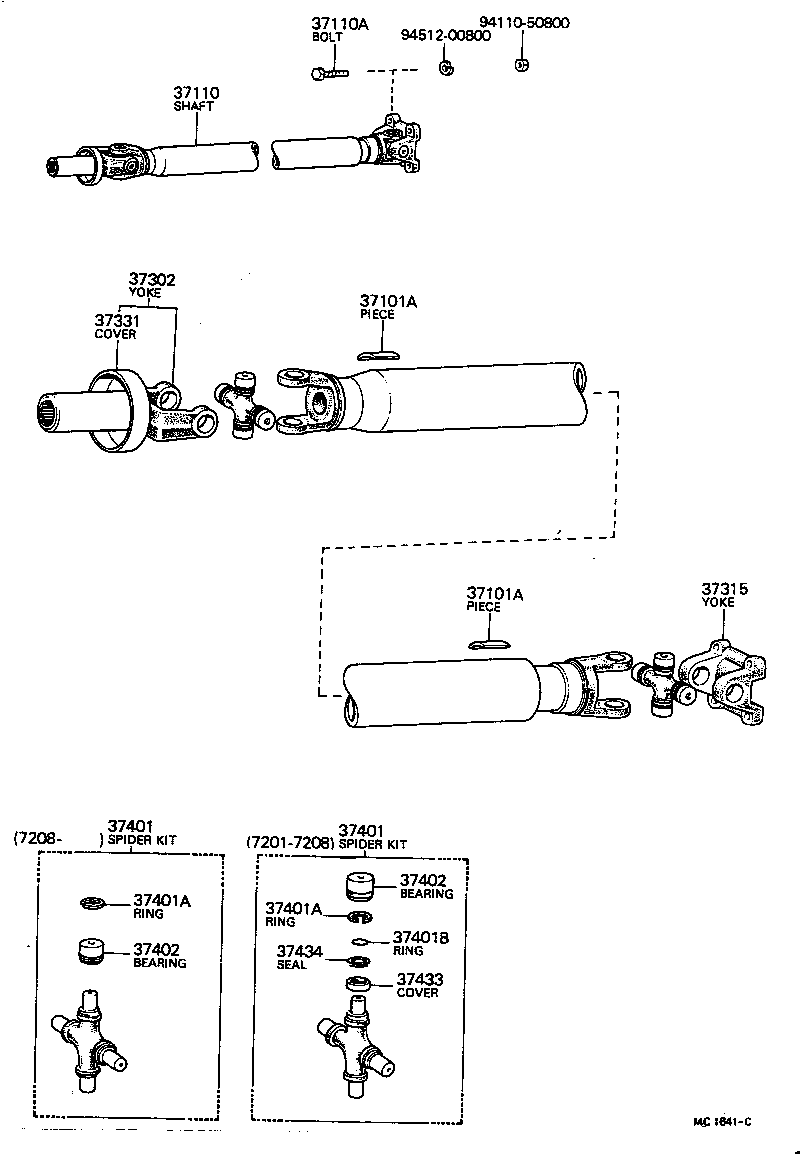

Click highlighted areas on diagram

diagram 37101A 37101A 37110 37110A 37302 37315 37331 37401 37401 37401A 37401A 37401B 37402 37402 37433 37434 9411050800 9451200800
Part # Description Qty Price
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01133

TA1#

12.5G.

 2
90937-01135

TA1#

17.5G.

 2
90937-01132

TA1#

10G,L=20.7,10G.

 3
90937-01137

TA1#

22.5G.

 2
90937-01138

TA1#

25G.

 2
90937-01140

TA1#

30G,L=62.2,30G.

 3
90937-01139

TA1#

27.5G.

 2
90937-01130

TA1#

5.0G.

 2
90937-01136

TA1#

20G,L=41.4,20G.

 3
90937-01134

TA1#

15G,15G.

 2
90937-01131

TA1#

7.5G.

 2
90937-01129

TA1#

2.5G.

 2
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01133

TA1#

12.5G.

 2
90937-01135

TA1#

17.5G.

 2
90937-01132

TA1#

10G,L=20.7,10G.

 3
90937-01137

TA1#

22.5G.

 2
90937-01138

TA1#

25G.

 2
90937-01140

TA1#

30G,L=62.2,30G.

 3
90937-01139

TA1#

27.5G.

 2
90937-01130

TA1#

5.0G.

 2
90937-01136

TA1#

20G,L=41.4,20G.

 3
90937-01134

TA1#

15G,15G.

 2
90937-01131

TA1#

7.5G.

 2
90937-01129

TA1#

2.5G.

 2
37110 - SHAFT ASSY, PROPELLER
37110-14070

TA12..4F

L=1362,OD=75

 1
37110-14020

TA1#..4F

L=1379,OD=75

 1
37110-14071

TA12..4F

L=1362,OD=75

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90101-08072

TA1#

 4
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-14010

TA1#..4F

 1
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-20011

TA1#..4F

 1
37331 - COVER, SLIDING SHAFT DUST
37331-12010

TA1#..4F

 1
37401 - SPIDER KIT, UNIVERSAL JOINT
04371-20010

TA1#

 2
37401 - SPIDER KIT, UNIVERSAL JOINT
04371-20010

TA1#

 2
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90521-29071

TA1#

T=2.425-2.475,T=2.425-2.475

 12
90521-29073

TA1#

T=2.525-2.575,T=2.525-2.575

 12
90521-29072

TA1#

T=2.475-2.525,T=2.475-2.525

 12
90521-29070

TA1#

T=2.375-2.425,T=2.375-2.425

 12
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90521-29071

TA1#

T=2.425-2.475,T=2.425-2.475

 12
90521-29073

TA1#

T=2.525-2.575,T=2.525-2.575

 12
90521-29072

TA1#

T=2.475-2.525,T=2.475-2.525

 12
90521-29070

TA1#

T=2.375-2.425,T=2.375-2.425

 12
37401B - RING, O (FOR SPIDER BEARING)
90301-13066

TA1#

 8
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-20010

TA1#

OD=26.015-26.028

 8
37402-20020

TA1#

OD=26.036-26.049

 8
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-20010

TA1#

OD=26.015-26.028

 8
37402-20020

TA1#

OD=26.036-26.049

 8
37433 - COVER, UNIVERSAL JOINT NEEDLE ROLLER
37433-20011

TA1#

 8
37434 - SEAL, UNIVERSAL JOINT SPIDER BEARING
37434-20010

TA1#

 8
Common parts
94110-50800
94512-00800
