TA12L-KDF (1970)
Toyota Carina
Production
Dec 1970
-
Sep 1975
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7308)

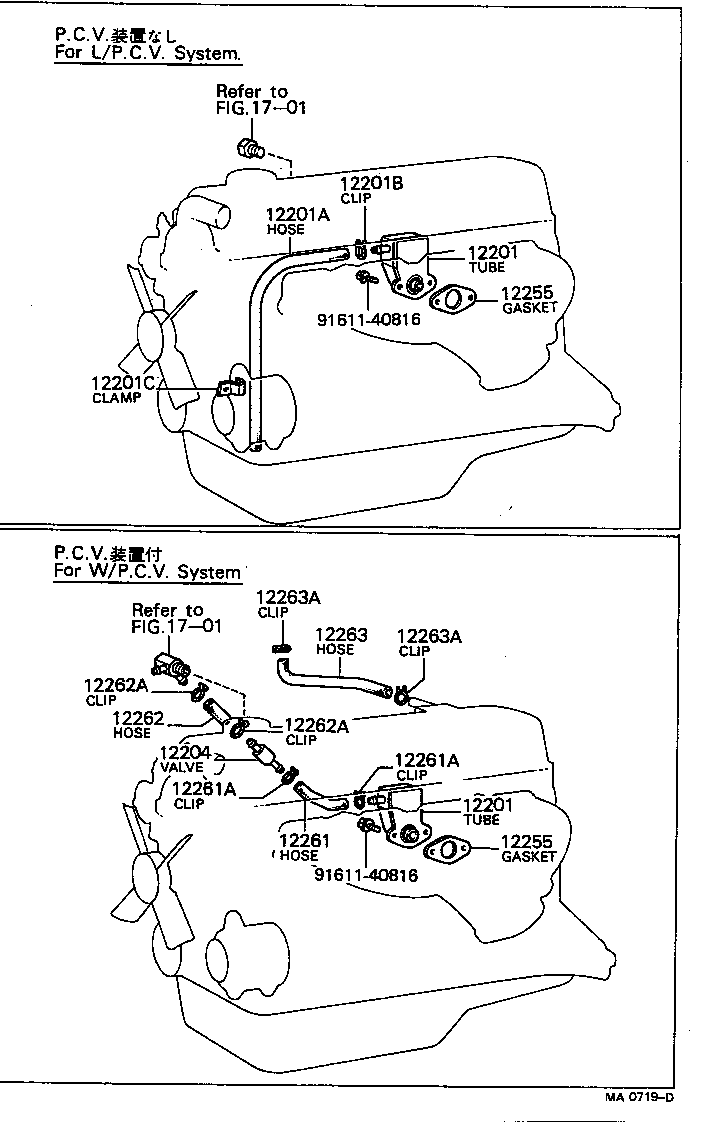

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12201 - TUBE SUB-ASSY, VENTILATION | ||||
| 12201-25010 |
T,2T#..TA1# |
1 | ||
| 12201 - TUBE SUB-ASSY, VENTILATION | ||||
| 12201-25010 |
T,2T#..TA1# |
1 | ||
| 12201A - HOSE(FOR VENTILATION TUBE) | ||||
| 90446-16270 |
T,2T..TA1# L/P.C.V. |
1 | ||
| 12201B - CLIP(FOR VENTILATION TUBE HOSE) | ||||
| 90467-16010 |
T,2T..TA1# ID=16,L/P.C.V. |
1 | ||
| 12201C - CLAMP(FOR VENTILATION TUBE HOSE) | ||||
| 90461-10571 |
T,2T..TA1# L/P.C.V. |
1 | ||
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-31012 |
T,2T..TA1# |
1 | ||
| 12255 - GASKET, VENTILATION | ||||
| 12255-25010 |
T,2T#..TA1# |
1 | ||
| 11273-25010 |
T,2T#..TA1# |
1 | ||
| 12255 - GASKET, VENTILATION | ||||
| 12255-25010 |
T,2T#..TA1# |
1 | ||
| 11273-25010 |
T,2T#..TA1# |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 90910-05046 |
T,2T..TA1# |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-16010 |
T,2T#..TA1# ID=16 |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-16010 |
T,2T#..TA1# ID=16 |
2 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 90445-17609 |
T,2T..TA1# |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-16010 |
T,2T#..TA1# ID=16 |
2 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-16010 |
T,2T#..TA1# ID=16 |
2 | ||
| 12263 - HOSE, VENTILATION, NO.3 | ||||
| 90910-05048 |
T,2T..TA1# |
1 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-20020 |
T,2T#..TA1# ID=20 |
2 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-20020 |
T,2T#..TA1# ID=20 |
2 | ||
| Common parts | ||||
| 91611-40816 | ||||
| Linked diagrams | ||||
| 1701 | ||||
