TA12L-KD (1970)
Toyota Carina
Production
Dec 1970
-
Sep 1975
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7509)

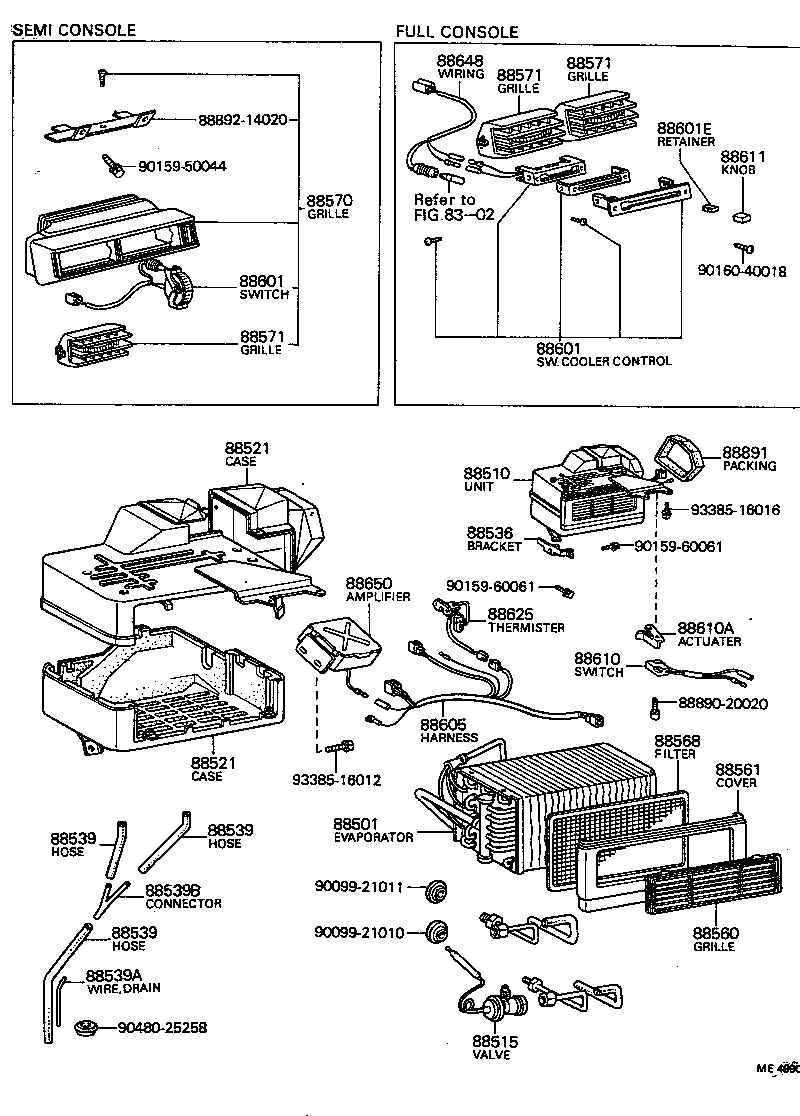

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-14020 |
TA1#..LHD |
1 | ||
| 88501-14021 |
TA1#..LHD |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-14021 |
TA1#..LHD |
1 | ||
| 88510-14020 |
TA1#..LHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-14010 |
TA1# |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88521-14030 |
TA1#..LHD UPPER |
1 | ||
| 88521-14040 |
TA1#..LHD LOWER |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88521-14030 |
TA1#..LHD UPPER |
1 | ||
| 88521-14040 |
TA1#..LHD LOWER |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-14040 |
TA1#..LHD |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-20010 |
TA1# L=80 |
1 | ||
| 88539-14010 |
TA1# L=200 |
1 | ||
| 88539-20020 |
TA1# L=150 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-20010 |
TA1# L=80 |
1 | ||
| 88539-14010 |
TA1# L=200 |
1 | ||
| 88539-20020 |
TA1# L=150 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-20010 |
TA1# L=80 |
1 | ||
| 88539-14010 |
TA1# L=200 |
1 | ||
| 88539-20020 |
TA1# L=150 |
1 | ||
| 88539A - WIRE, DRAIN HOSE(FOR COOLER) | ||||
| 88895-12020 |
TA1# |
1 | ||
| 90480-25258 |
TA1# |
1 | ||
| 88539B - CONNECTOR, COOLER DRAIN HOSE | ||||
| 88894-22010 |
TA1# |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88561-20010 |
TA1# |
1 | ||
| 88561 - COVER, COOLER UNIT | ||||
| 88560-20010 |
TA1# |
1 | ||
| 88568 - FILTER, COOLER UNIT COVER | ||||
| 88568-20020 |
TA1# |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-14020 |
TA1#..LHD |
1 | ||
| 88571 - GRILLE, AIR OUTLET | ||||
| 88571-20030 |
TA1# |
2 | ||
| 88571-20040 |
TA1# |
2 | ||
| 88571 - GRILLE, AIR OUTLET | ||||
| 88571-20030 |
TA1# |
2 | ||
| 88571-20040 |
TA1# |
2 | ||
| 88571 - GRILLE, AIR OUTLET | ||||
| 88571-20030 |
TA1# |
2 | ||
| 88571-20040 |
TA1# |
2 | ||
| 88601 - SWITCH SUB-ASSY, COOLER CONTROL | ||||
| 88622-14010 |
TA1# |
1 | ||
| 88622-20020 |
TA1#..LHD |
1 | ||
| 88601 - SWITCH SUB-ASSY, COOLER CONTROL | ||||
| 88622-14010 |
TA1# |
1 | ||
| 88622-20020 |
TA1#..LHD |
1 | ||
| 88601E - RETAINER, COOLER CONTROL SWITCH LEVER | ||||
| 55918-22010 |
TA1# |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-14010 |
TA1# |
1 | ||
| 88605-14011 |
TA1# |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-20060 |
TA1# |
1 | ||
| 88610-20080 |
TA1# |
1 | ||
| 88610A - ACTUATER (FOR COOLER CONTROL SWITCH) | ||||
| 88893-22011 |
TA1# |
1 | ||
| 88611 - KNOB, COOLER CONTROL SWITCH | ||||
| 55937-14020 |
TA1# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-20010 |
TA1# |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88605-14020 |
TA1# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-12010 |
TA1# |
1 | ||
| 88650-20040 |
TA1#..LHD |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88891-14010 |
TA1# |
1 | ||
| 88890-20010 |
TA1# |
1 | ||
| Common parts | ||||
| 88890-20020 | ||||
| 88892-14020 | ||||
| 90099-21010 | ||||
| 90099-21011 | ||||
| 90159-50044 | ||||
| 90159-60061 | ||||
| 90160-40018 | ||||
| 90480-25258 | ||||
| 93385-16012 | ||||
| 93385-16016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
