TA12L-HF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

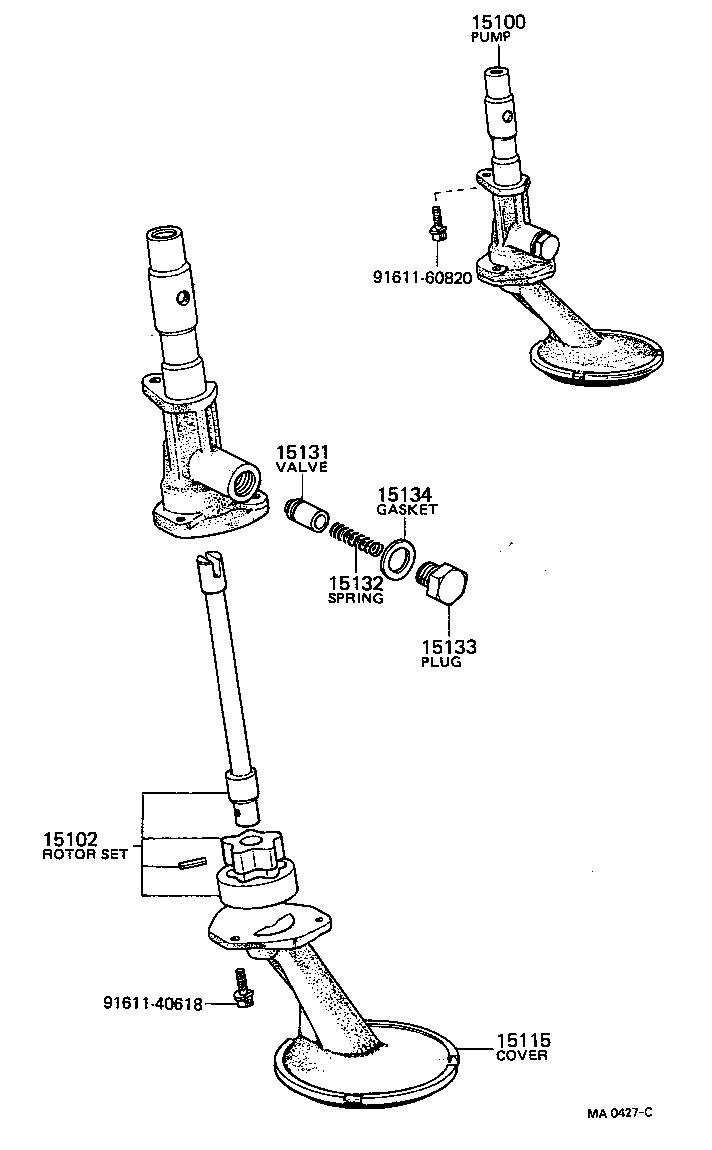

Click highlighted areas on diagram

diagram 15100 15102 15115 15131 15132 15133 15134 9161140618 9161160820
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-25012

T,2T#..TA1#

 1
15100-25011

T,2T..TA1#

 1
15102 - ROTOR SET, OIL PUMP
15102-25010

T,2T#..TA1#

 1
15115 - COVER, OIL PUMP
15012-25011

T,2T#..TA1#

 1
15012-25010

T,2T..TA1#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-22010

T,2T#..TA1#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

T,2T#..TA1#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

T,2T#..TA1#

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

T,2T#..TA1#

 1
Common parts
91611-40618
91611-60820
