TA12L-HF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

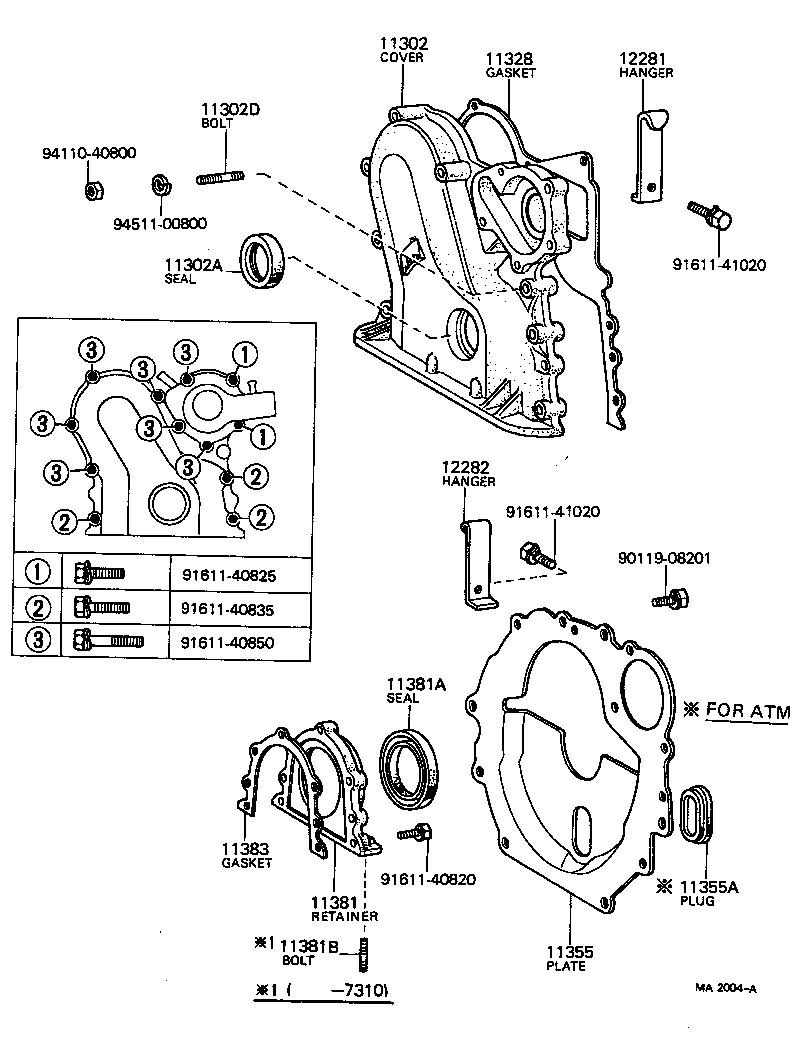

Click highlighted areas on diagram

diagram 11302 11302A 11302D 11328 11355 11355A 11381 11381A 11381B 11383 12281 12282 9011908201 9161140820 9161140825 9161140835 9161140850 9161141020 9161141020 9411040800 9451100800
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-25010

T,2T..TA1#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38111

T,2T#..TA1#

HTC3 38.5 58 11

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08057

T,2T#..TA1#

L=29,S=13&13

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-25010

T,2T#..TA1#

 1
11355 - PLATE, REAR END
11355-25021

2T..TA12..3FC

 1
11355-25020

2T..TA12..3FC

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01118

2T..TA12..3FC

 1
90950-01031

2T..TA12..3FC

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-25010

T,2T#..TA1#

 1
11381A - SEAL, ENGINE REAR OIL
90311-75113

T,2T#..TA1#

HTC 75 100 13

 1
11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
90116-08057

T,2T#..TA1#

L=29,S=13&13

 2
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-25010

T,2T#..TA1#

 1
12281 - HANGER, ENGINE, NO.1
12281-25010

T,2T#..TA1#

 1
12282 - HANGER, ENGINE, NO.2
12281-25010

2T..TA12..3FC

 1
Common parts
90119-08201
91611-40820
91611-40825
91611-40835
91611-40850
91611-41020
94110-40800
94511-00800
