TA12L-HDF (1970)
Toyota Carina
Production
Dec 1970
-
Sep 1975
Engine
2T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7707)

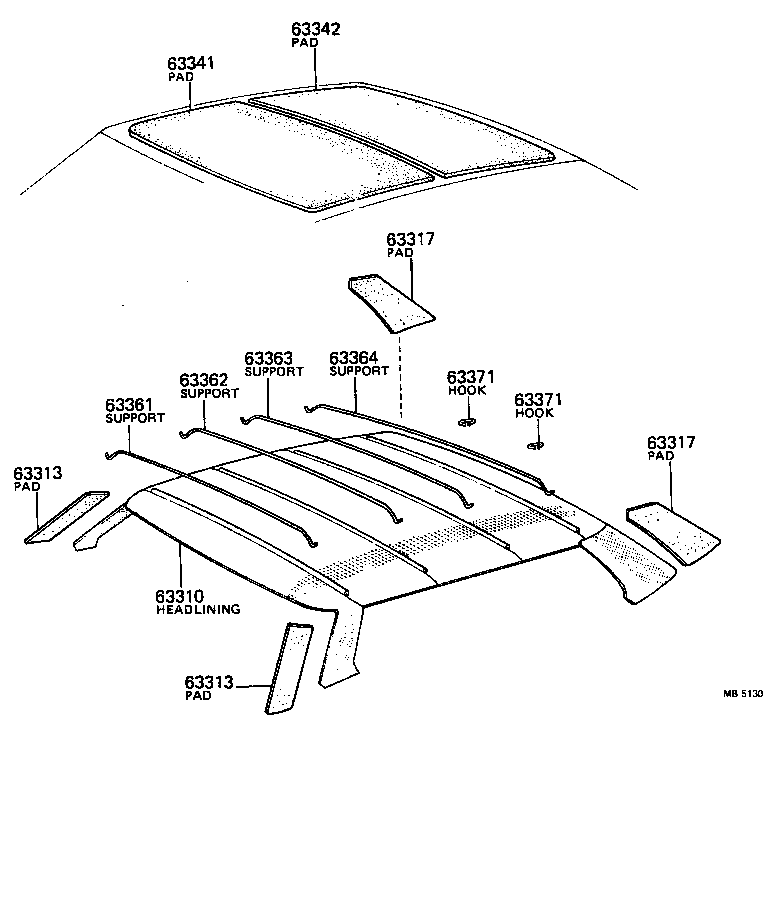

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-1401104 |
TA1# BLUE,BLUE,TRIM8# |
1 | ||
| 63310-1402008 |
TA1#..4D IVORY,IVORY,TRIM2#,4# |
1 | ||
| 63310-1401116 |
TA1# BROWN,BROWN,TRIM2#,4# |
1 | ||
| 63310-1402003 |
TA1#..4D LIGHT GRAY,GRAY,TRIM1# |
1 | ||
| 63310-1401108 |
TA1# IVORY,IVORY,TRIM2#,4# |
1 | ||
| 63310-1401118 |
TA1#..DLX,STD IVORY, BLACK,IVORY,TRIM2#,4# |
1 | ||
| 63310-1401128 |
TA1# IVORY, BROWN,IVORY,TRIM2#,4# |
1 | ||
| 63310-1402005 |
TA1#..4D BEIGE,BEIGE,TRIM4# |
1 | ||
| 63313 - PAD, ROOF HEADLINING FRONT GARNISH | ||||
| 62213-20021 |
TA1# |
2 | ||
| 63313 - PAD, ROOF HEADLINING FRONT GARNISH | ||||
| 62213-20021 |
TA1# |
2 | ||
| 63317 - PAD, ROOF HEADLINING REAR GARNISH | ||||
| 62563-14020 |
TA1#..4D |
2 | ||
| 63317 - PAD, ROOF HEADLINING REAR GARNISH | ||||
| 62563-14020 |
TA1#..4D |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-14010 |
TA1# |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63341-14010 |
TA1# |
1 | ||
| 63361 - SUPPORT, ROOF HEADLINING, NO.1 | ||||
| 63361-14010 |
TA1# L=1088 |
1 | ||
| 63361-20030 |
TA1# L=1097 |
1 | ||
| 63362 - SUPPORT, ROOF HEADLINING, NO.2 | ||||
| 63361-20030 |
TA1# L=1097 |
1 | ||
| 63361-14010 |
TA1# L=1088 |
1 | ||
| 63363 - SUPPORT, ROOF HEADLINING, NO.3 | ||||
| 63361-20030 |
TA1# L=1097 |
1 | ||
| 63361-14010 |
TA1# L=1088 |
1 | ||
| 63364 - SUPPORT, ROOF HEADLINING, NO.4 | ||||
| 63362-14010 |
TA1# |
1 | ||
| 63371 - HOOK, ROOF HEADLINING SUPPORT | ||||
| 63371-14010 |
TA1# |
2 | ||
| 63371 - HOOK, ROOF HEADLINING SUPPORT | ||||
| 63371-14010 |
TA1# |
2 | ||
