TA12L-HDF (1970)
Toyota Carina
Production
Dec 1970
-
Sep 1975
Engine
2T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7509)

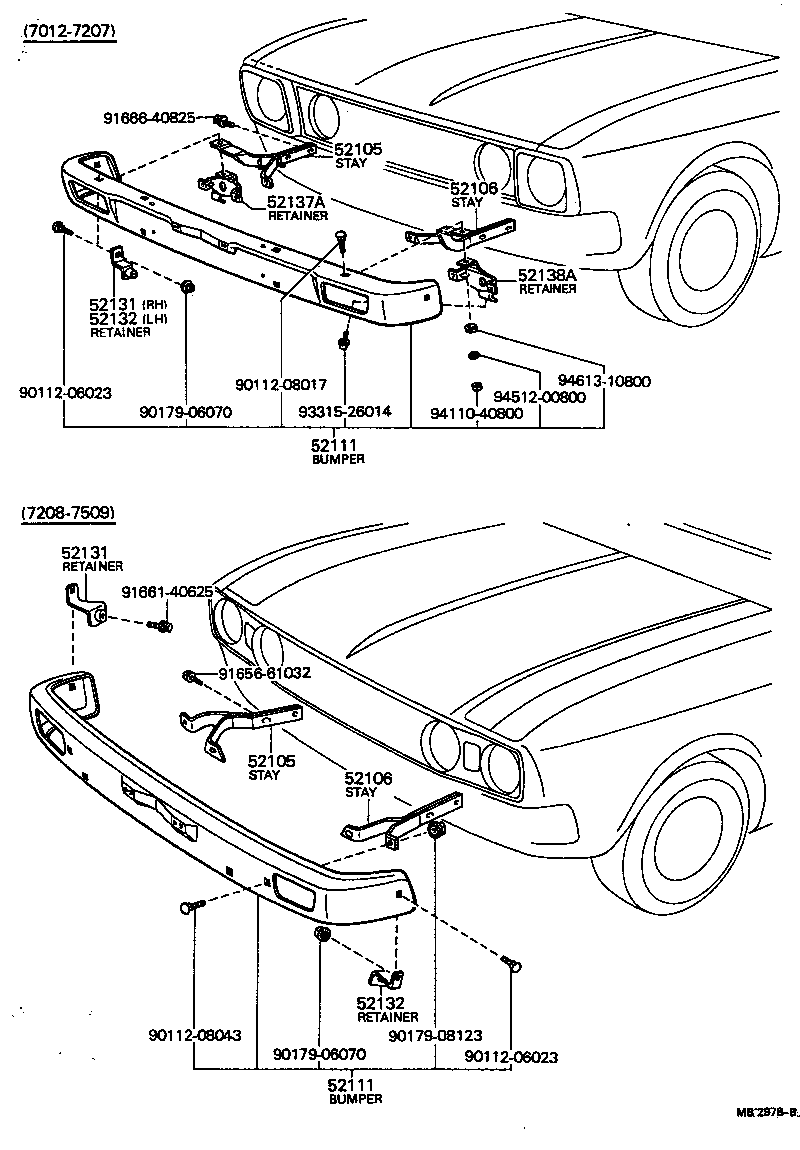

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52105 - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-14010 |
TA1# |
1 | ||
| 52011-14011 |
TA1# |
1 | ||
| 52105 - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-14010 |
TA1# |
1 | ||
| 52011-14011 |
TA1# |
1 | ||
| 52106 - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-14011 |
TA1# |
1 | ||
| 52012-14010 |
TA1# |
1 | ||
| 52106 - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-14011 |
TA1# |
1 | ||
| 52012-14010 |
TA1# |
1 | ||
| 52111 - BUMPER ASSY, FRONT | ||||
| 52111-19085 |
TA1# |
1 | ||
| 52111-19175 |
TA12..LHD FOR HEADLAMP CLEANER |
1 | ||
| 52111-19086 |
TA1# |
1 | ||
| 52111 - BUMPER ASSY, FRONT | ||||
| 52111-19085 |
TA1# |
1 | ||
| 52111-19175 |
TA12..LHD FOR HEADLAMP CLEANER |
1 | ||
| 52111-19086 |
TA1# |
1 | ||
| 52131 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52131-14011 |
TA1# |
1 | ||
| 52131-14010 |
TA1# |
1 | ||
| 52131 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52131-14011 |
TA1# |
1 | ||
| 52131-14010 |
TA1# |
1 | ||
| 52132 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52132-14010 |
TA1# |
1 | ||
| 52132-14011 |
TA1# |
1 | ||
| 52132 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52132-14010 |
TA1# |
1 | ||
| 52132-14011 |
TA1# |
1 | ||
| 52137A - RETAINER, FRONT TURN SIGNAL LAMP, RH | ||||
| 52137-14010 |
TA1# |
1 | ||
| 52138A - RETAINER, FRONT TURN SIGNAL LAMP, LH | ||||
| 52138-14010 |
TA1# |
1 | ||
| Common parts | ||||
| 90112-06023 | ||||
| 90112-08017 | ||||
| 90112-08043 | ||||
| 90179-06070 | ||||
| 90179-08123 | ||||
| 91656-61032 | ||||
| 91661-40625 | ||||
| 91666-40825 | ||||
| 93315-26014 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||
