TA12L-HD (1970)
Toyota Carina

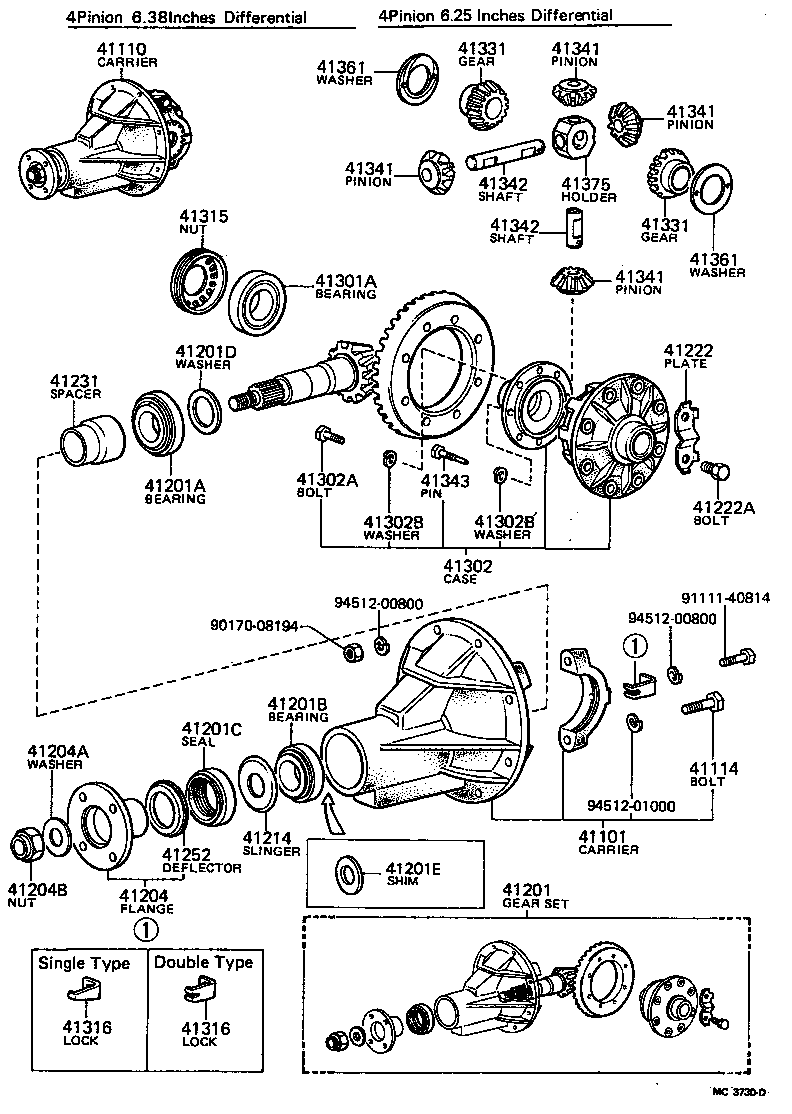

(7012-7105)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-20010 |
TA1# |
1 | ||
| 41101-20010 |
TA12..3FC 6.25INCH-DIFF. |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-22010 |
TA12..3FC R=37:9=4.111 |
1 | ||
| 41110-22050 |
TA12 R=37:9=4.111 |
1 | ||
| 41110-14051 |
TA12..3FC R=43:10=4.300 |
1 | ||
| 41110-14060 |
TA12..3FC R=43:10=4.300 |
1 | ||
| 41110-22051 |
TA12 R=37:9=4.111 |
1 | ||
| 41110-14050 |
TA12..3FC R=43:10=4.300 |
1 | ||
| 41110-14020 |
TA12..3FC R=35:8=4.375 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-10128 |
TA1# |
4 | ||
| 90101-10128 |
TA12..3FC 6.25INCH-DIFF. |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29036 |
TA1# N=37:9=4.111 |
1 | ||
| 41201-29115 |
TA12 N=37:9 |
1 | ||
| 41201-19175 |
TA12..3FC N=43:10 |
1 | ||
| 41201-19155 |
TA12..3FC N=35:8 |
1 | ||
| 41201-19165 |
TA12..3FC N=43:10 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90368-33021 |
TA1# M88048/10N |
1 | ||
| 90368-33021 |
TA12..3FC 6.25INCH-DIFF. |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90368-30022 |
TA1# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38124 |
TA1# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90209-33038 |
TA1# T=2.52,T=2.51-2.53 |
1 | ||
| 90209-33039 |
TA1# T=2.55,T=2.54-2.56 |
1 | ||
| 90209-33043 |
TA1# T=2.67,T=2.66-2.68 |
1 | ||
| 90209-33040 |
TA1# T=2.58,T=2.57-2.59 |
1 | ||
| 90209-33045 |
TA1# T=2.73,T=2.72-2.74 |
1 | ||
| 90209-33042 |
TA1# T=2.64,T=2.63-2.65 |
1 | ||
| 90209-33041 |
TA1# T=2.61,T=2.60-2.62 |
1 | ||
| 90209-33041 |
TA12..3FC T=2.61,T=2.60-2.62 |
1 | ||
| 90209-33044 |
TA1# T=2.70,T=2.69-2.71 |
1 | ||
| 90209-33039 |
TA12..3FC T=2.55,T=2.54-2.56 |
1 | ||
| 90209-33038 |
TA12..3FC T=2.52,T=2.51-2.53 |
1 | ||
| 90209-33040 |
TA12..3FC T=2.58,T=2.57-2.59 |
1 | ||
| 90209-33043 |
TA12..3FC T=2.67,T=2.66-2.68 |
1 | ||
| 90209-33046 |
TA1# T=2.76,T=2.75-2.77 |
1 | ||
| 90209-33045 |
TA12..3FC T=2.73,T=2.72-2.74 |
1 | ||
| 90209-33042 |
TA12..3FC T=2.64,T=2.63-2.65 |
1 | ||
| 90209-33046 |
TA12..3FC T=2.76,T=2.75-2.77 |
1 | ||
| 90209-33044 |
TA12..3FC T=2.70,T=2.69-2.71 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-30035 |
TA12..3FC T=0.25,T=0.25 |
3 | ||
| 90564-30032 |
TA1# T=0.3 |
4 | ||
| 90564-30035 |
TA1# T=0.25,T=0.25 |
3 | ||
| 90564-30032 |
TA12 T=0.3 |
4 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20010 |
TA12..3FC |
1 | ||
| 41204-22011 |
TA12 |
1 | ||
| 41204-20010 |
TA1# |
1 | ||
| 41204-22010 |
TA12 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18182 |
TA1# |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18060 |
TA1# S=9 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-20010 |
TA1# |
1 | ||
| 41214-20010 |
TA12 |
1 | ||
| 41214-20020 |
TA1# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-20020 |
TA1# |
8 | ||
| 41222-20020 |
TA12..3FC 6.25INCH-DIFF. |
8 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90109-10015 |
TA1# |
8 | ||
| 90109-10015 |
TA12..3FC 6.25INCH-DIFF. |
8 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-20010 |
TA1# L=44.95-44.975 |
1 | ||
| 41231-20010 |
TA12..3FC L=44.95-44.975 |
1 | ||
| 41234-20010 |
TA1# L=45.07-45.095 |
1 | ||
| 41233-20010 |
TA1# L=45.03-45.055 |
1 | ||
| 41236-20010 |
TA1# L=45.15-45.175 |
1 | ||
| 41232-20010 |
TA12..3FC L=44.99-45.015 |
1 | ||
| 41235-20010 |
TA1# L=45.11-45.135 |
1 | ||
| 41235-20010 |
TA12..3FC L=45.11-45.135 |
1 | ||
| 41232-20010 |
TA1# L=44.99-45.015 |
1 | ||
| 41236-20010 |
TA12..3FC L=45.15-45.175 |
1 | ||
| 41233-20010 |
TA12..3FC L=45.03-45.055 |
1 | ||
| 41234-20010 |
TA12..3FC L=45.07-45.095 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 37341-20010 |
TA1# |
1 | ||
| 37341-20010 |
TA12..3FC 6.25INCH-DIFF. |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-34020 |
TA1# LM48548/10N |
2 | ||
| 90368-34020 |
TA12..3FC LM48548/10N |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-22010 |
TA12..3FC 6.25INCH-DIFF. |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90101-08241 |
TA12..3FC |
7 | ||
| 90101-08241 |
TA1# |
7 | ||
| 41302B - WASHER, SPRING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90204-08024 |
TA12..3FC |
8 | ||
| 41302B - WASHER, SPRING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90204-08024 |
TA12..3FC |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-20010 |
TA1# |
2 | ||
| 41315-20010 |
TA12..3FC 6.25INCH-DIFF. |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-20010 |
TA1# SINGLE TYPE |
2 | ||
| 41316-20020 |
TA1# DOUBLE TYPE |
2 | ||
| 41316-20010 |
TA12..3FC SINGLE TYPE,6.25INCH-DIFF. |
2 | ||
| 41316-20020 |
TA12..3FC DOUBLE TYPE,6.25INCH-DIFF. |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-20010 |
TA1# SINGLE TYPE |
2 | ||
| 41316-20020 |
TA1# DOUBLE TYPE |
2 | ||
| 41316-20010 |
TA12..3FC SINGLE TYPE,6.25INCH-DIFF. |
2 | ||
| 41316-20020 |
TA12..3FC DOUBLE TYPE,6.25INCH-DIFF. |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22010 |
TA12..3FC N=14,6.25INCH-DIFF. |
2 | ||
| 41331-22010 |
TA1# N=14 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22010 |
TA12..3FC N=14,6.25INCH-DIFF. |
2 | ||
| 41331-22010 |
TA1# N=14 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-22010 |
TA12..3FC N=10,6.25INCH-DIFF. |
2 | ||
| 41341-22010 |
TA1# N=10 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-22010 |
TA12..3FC N=10,6.25INCH-DIFF. |
2 | ||
| 41341-22010 |
TA1# N=10 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-22010 |
TA12..3FC N=10,6.25INCH-DIFF. |
2 | ||
| 41341-22010 |
TA1# N=10 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-22010 |
TA12..3FC N=10,6.25INCH-DIFF. |
2 | ||
| 41341-22010 |
TA1# N=10 |
4 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-20010 |
TA12..3FC L=94,OD=15 |
1 | ||
| 41342-20010 |
TA1# L=94,OD=15 |
1 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-20010 |
TA12..3FC L=94,OD=15 |
1 | ||
| 41342-20010 |
TA1# L=94,OD=15 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41343-22010 |
TA12..3FC |
1 | ||
| 41343-22010 |
TA1# |
3 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41362-22010 |
TA12..3FC T=1.55 |
2 | ||
| 41363-22010 |
TA12..3FC T=1.60 |
2 | ||
| 41363-22010 |
TA1# T=1.60 |
2 | ||
| 41362-22010 |
TA1# T=1.55 |
2 | ||
| 41361-22010 |
TA1# T=1.50 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41362-22010 |
TA12..3FC T=1.55 |
2 | ||
| 41363-22010 |
TA12..3FC T=1.60 |
2 | ||
| 41363-22010 |
TA1# T=1.60 |
2 | ||
| 41362-22010 |
TA1# T=1.55 |
2 | ||
| 41361-22010 |
TA1# T=1.50 |
2 | ||
| Common parts | ||||
| 90170-08194 | ||||
| 91111-40814 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||

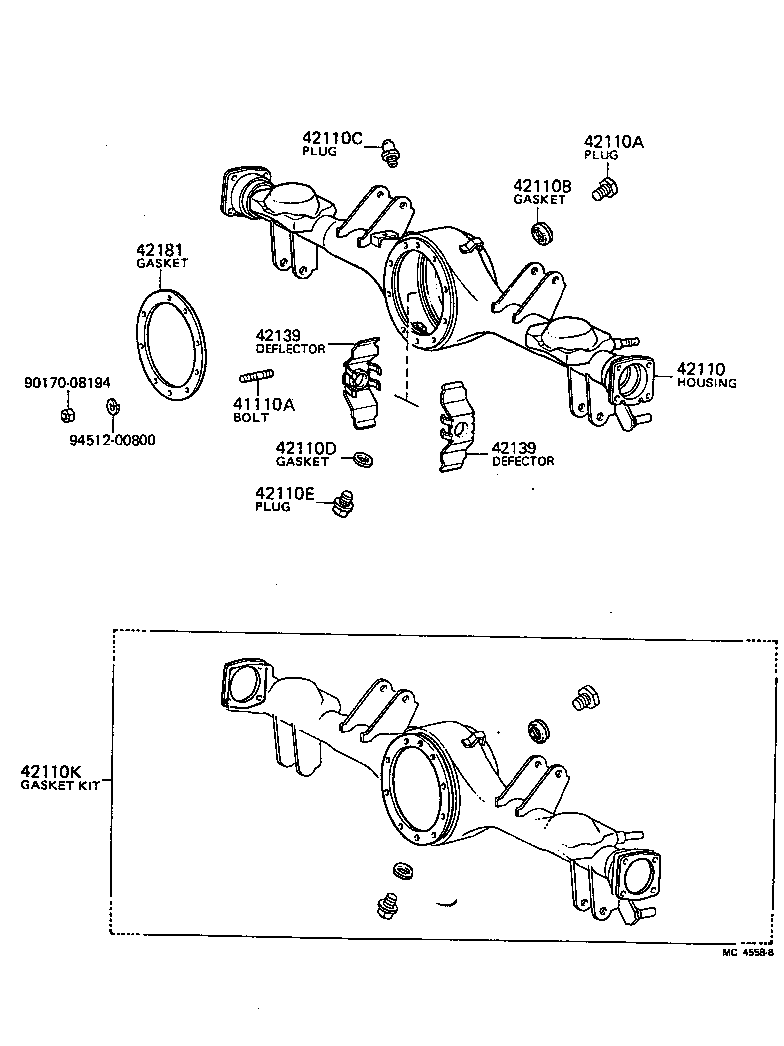

(7012-7707)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08236 |
TA1# S=12 & 15,L=78,L=77,S=12&16 |
1 | ||
| 90116-08235 |
TA1# S=12 & 15,L=34,L=33,S=12&16 |
7 | ||
| 90116-08235 |
TA12 S=12 & 15,L=34,L=33,S=12&16 |
10 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-14010 |
TA12..3FC 6.25INCH-DIFF. |
1 | ||
| 42110-14010 |
TA1# |
1 | ||
| 42110-14020 |
TA12 6.62INCH-DIFF. |
1 | ||
| 42110-14021 |
TA12 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18050 |
TA1# |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 90430-18134 |
TA1# |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
TA1# |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
TA1# |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
TA1# |
1 | ||
| 42110K - GASKET KIT, DIFFERENTIAL CARRIER | ||||
| 04412-22010 |
TA12..3FC 6.25INCH-DIFF. |
1 | ||
| 04412-22010 |
TA1# |
1 | ||
| 04412-22020 |
TA12 6.62INCH-DIFF. |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-20010 |
TA12..3FC 6.25INCH-DIFF. |
1 | ||
| 42181-20010 |
TA1# T=0.3 |
1 | ||
| Common parts | ||||
| 90170-08194 | ||||
| 94512-00800 | ||||

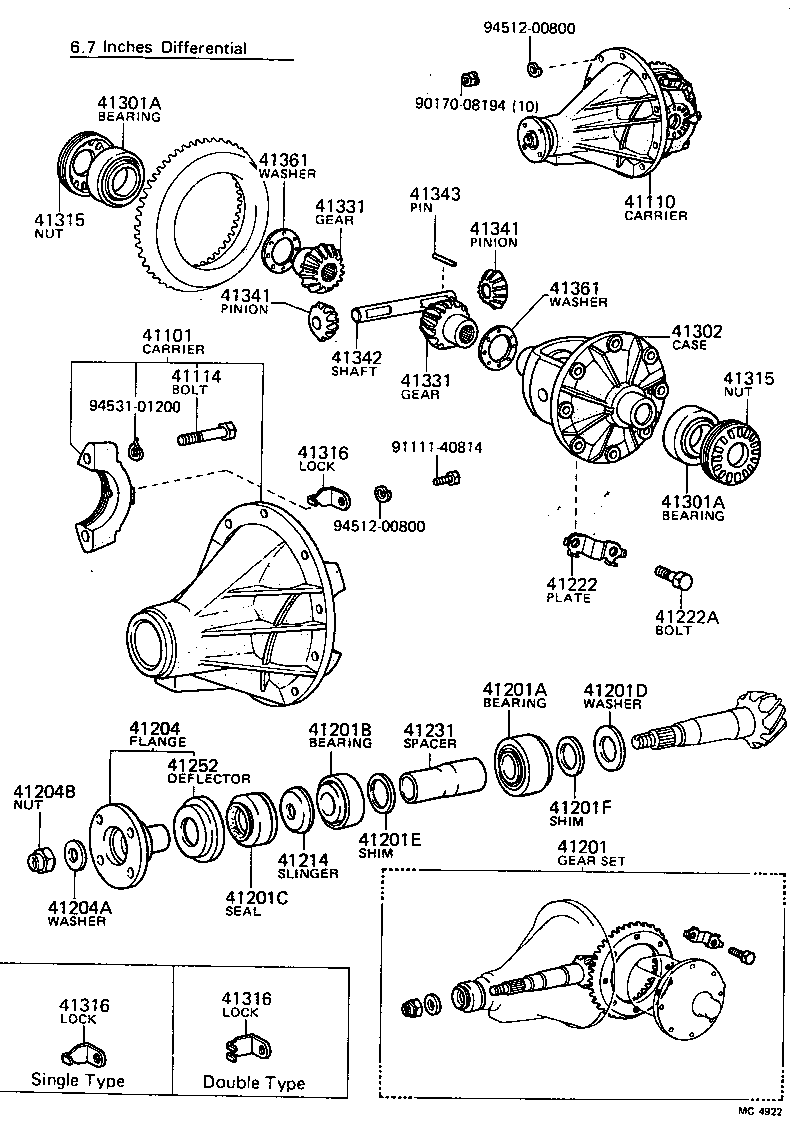

(7012-7707)TA12,14
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-20010 |
TA1# |
1 | ||
| 41101-20010 |
TA12..3FC 6.25INCH-DIFF. |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-22010 |
TA12..3FC R=37:9=4.111 |
1 | ||
| 41110-22050 |
TA12 R=37:9=4.111 |
1 | ||
| 41110-14051 |
TA12..3FC R=43:10=4.300 |
1 | ||
| 41110-14060 |
TA12..3FC R=43:10=4.300 |
1 | ||
| 41110-22051 |
TA12 R=37:9=4.111 |
1 | ||
| 41110-14050 |
TA12..3FC R=43:10=4.300 |
1 | ||
| 41110-14020 |
TA12..3FC R=35:8=4.375 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-10128 |
TA1# |
4 | ||
| 90101-10128 |
TA12..3FC 6.25INCH-DIFF. |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29036 |
TA1# N=37:9=4.111 |
1 | ||
| 41201-29115 |
TA12 N=37:9 |
1 | ||
| 41201-19175 |
TA12..3FC N=43:10 |
1 | ||
| 41201-19155 |
TA12..3FC N=35:8 |
1 | ||
| 41201-19165 |
TA12..3FC N=43:10 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90368-33021 |
TA1# M88048/10N |
1 | ||
| 90368-33021 |
TA12..3FC 6.25INCH-DIFF. |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90368-30022 |
TA1# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38124 |
TA1# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90209-33038 |
TA1# T=2.52,T=2.51-2.53 |
1 | ||
| 90209-33039 |
TA1# T=2.55,T=2.54-2.56 |
1 | ||
| 90209-33043 |
TA1# T=2.67,T=2.66-2.68 |
1 | ||
| 90209-33040 |
TA1# T=2.58,T=2.57-2.59 |
1 | ||
| 90209-33045 |
TA1# T=2.73,T=2.72-2.74 |
1 | ||
| 90209-33042 |
TA1# T=2.64,T=2.63-2.65 |
1 | ||
| 90209-33041 |
TA1# T=2.61,T=2.60-2.62 |
1 | ||
| 90209-33041 |
TA12..3FC T=2.61,T=2.60-2.62 |
1 | ||
| 90209-33044 |
TA1# T=2.70,T=2.69-2.71 |
1 | ||
| 90209-33039 |
TA12..3FC T=2.55,T=2.54-2.56 |
1 | ||
| 90209-33038 |
TA12..3FC T=2.52,T=2.51-2.53 |
1 | ||
| 90209-33040 |
TA12..3FC T=2.58,T=2.57-2.59 |
1 | ||
| 90209-33043 |
TA12..3FC T=2.67,T=2.66-2.68 |
1 | ||
| 90209-33046 |
TA1# T=2.76,T=2.75-2.77 |
1 | ||
| 90209-33045 |
TA12..3FC T=2.73,T=2.72-2.74 |
1 | ||
| 90209-33042 |
TA12..3FC T=2.64,T=2.63-2.65 |
1 | ||
| 90209-33046 |
TA12..3FC T=2.76,T=2.75-2.77 |
1 | ||
| 90209-33044 |
TA12..3FC T=2.70,T=2.69-2.71 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-30035 |
TA12..3FC T=0.25,T=0.25 |
3 | ||
| 90564-30032 |
TA1# T=0.3 |
4 | ||
| 90564-30035 |
TA1# T=0.25,T=0.25 |
3 | ||
| 90564-30032 |
TA12 T=0.3 |
4 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-35067 |
TA12 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20010 |
TA12..3FC |
1 | ||
| 41204-22011 |
TA12 |
1 | ||
| 41204-20010 |
TA1# |
1 | ||
| 41204-22010 |
TA12 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18182 |
TA1# |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18060 |
TA1# S=9 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-20010 |
TA1# |
1 | ||
| 41214-20010 |
TA12 |
1 | ||
| 41214-20020 |
TA1# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-20020 |
TA1# |
8 | ||
| 41222-20020 |
TA12..3FC 6.25INCH-DIFF. |
8 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90109-10015 |
TA1# |
8 | ||
| 90109-10015 |
TA12..3FC 6.25INCH-DIFF. |
8 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-20010 |
TA1# L=44.95-44.975 |
1 | ||
| 41231-20010 |
TA12..3FC L=44.95-44.975 |
1 | ||
| 41234-20010 |
TA1# L=45.07-45.095 |
1 | ||
| 41233-20010 |
TA1# L=45.03-45.055 |
1 | ||
| 41236-20010 |
TA1# L=45.15-45.175 |
1 | ||
| 41232-20010 |
TA12..3FC L=44.99-45.015 |
1 | ||
| 41235-20010 |
TA1# L=45.11-45.135 |
1 | ||
| 41235-20010 |
TA12..3FC L=45.11-45.135 |
1 | ||
| 41232-20010 |
TA1# L=44.99-45.015 |
1 | ||
| 41236-20010 |
TA12..3FC L=45.15-45.175 |
1 | ||
| 41233-20010 |
TA12..3FC L=45.03-45.055 |
1 | ||
| 41234-20010 |
TA12..3FC L=45.07-45.095 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 37341-20010 |
TA1# |
1 | ||
| 37341-20010 |
TA12..3FC 6.25INCH-DIFF. |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-34020 |
TA1# LM48548/10N |
2 | ||
| 90368-34020 |
TA12..3FC LM48548/10N |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-34020 |
TA1# LM48548/10N |
2 | ||
| 90368-34020 |
TA12..3FC LM48548/10N |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-22010 |
TA12..3FC 6.25INCH-DIFF. |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-20010 |
TA1# |
2 | ||
| 41315-20010 |
TA12..3FC 6.25INCH-DIFF. |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-20010 |
TA1# |
2 | ||
| 41315-20010 |
TA12..3FC 6.25INCH-DIFF. |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-20010 |
TA1# SINGLE TYPE |
2 | ||
| 41316-20020 |
TA1# DOUBLE TYPE |
2 | ||
| 41316-20010 |
TA12..3FC SINGLE TYPE,6.25INCH-DIFF. |
2 | ||
| 41316-20020 |
TA12..3FC DOUBLE TYPE,6.25INCH-DIFF. |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-20010 |
TA1# SINGLE TYPE |
2 | ||
| 41316-20020 |
TA1# DOUBLE TYPE |
2 | ||
| 41316-20010 |
TA12..3FC SINGLE TYPE,6.25INCH-DIFF. |
2 | ||
| 41316-20020 |
TA12..3FC DOUBLE TYPE,6.25INCH-DIFF. |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-20010 |
TA1# SINGLE TYPE |
2 | ||
| 41316-20020 |
TA1# DOUBLE TYPE |
2 | ||
| 41316-20010 |
TA12..3FC SINGLE TYPE,6.25INCH-DIFF. |
2 | ||
| 41316-20020 |
TA12..3FC DOUBLE TYPE,6.25INCH-DIFF. |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22010 |
TA12..3FC N=14,6.25INCH-DIFF. |
2 | ||
| 41331-22010 |
TA1# N=14 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22010 |
TA12..3FC N=14,6.25INCH-DIFF. |
2 | ||
| 41331-22010 |
TA1# N=14 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-22010 |
TA12..3FC N=10,6.25INCH-DIFF. |
2 | ||
| 41341-22010 |
TA1# N=10 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-22010 |
TA12..3FC N=10,6.25INCH-DIFF. |
2 | ||
| 41341-22010 |
TA1# N=10 |
4 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-20010 |
TA12..3FC L=94,OD=15 |
1 | ||
| 41342-20010 |
TA1# L=94,OD=15 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41343-22010 |
TA12..3FC |
1 | ||
| 41343-22010 |
TA1# |
3 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41362-22010 |
TA12..3FC T=1.55 |
2 | ||
| 41363-22010 |
TA12..3FC T=1.60 |
2 | ||
| 41363-22010 |
TA1# T=1.60 |
2 | ||
| 41362-22010 |
TA1# T=1.55 |
2 | ||
| 41361-22010 |
TA1# T=1.50 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41362-22010 |
TA12..3FC T=1.55 |
2 | ||
| 41363-22010 |
TA12..3FC T=1.60 |
2 | ||
| 41363-22010 |
TA1# T=1.60 |
2 | ||
| 41362-22010 |
TA1# T=1.55 |
2 | ||
| 41361-22010 |
TA1# T=1.50 |
2 | ||
| Common parts | ||||
| 90170-08194 | ||||
| 91111-40814 | ||||
| 94512-00800 | ||||
| 94531-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
