TA12L-HD (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7308)3FC

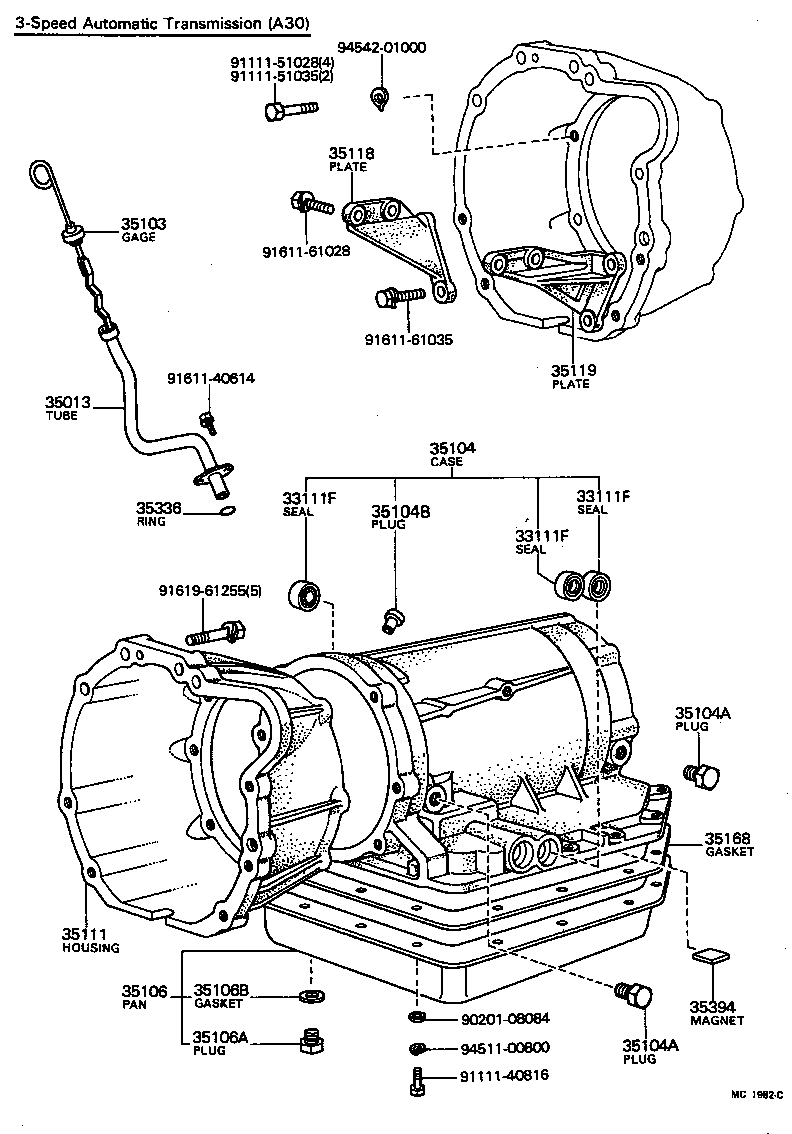

Click highlighted areas on diagram

diagram 33111F 33111F 33111F 35013 35103 35104 35104A 35104A 35104B 35106 35106A 35106B 35111 35118 35119 35168 35336 35394 9020108084 9111140816 9111151028 9111151035 9161140614 9161161028 9161161035 9161961255 9451100800 9454201000
Part # Description Qty Price
33111F - SEAL, OIL(FOR TRANSMISSION CASE)
90311-08044

TA12..3FC

RR.TC 8 18 7

 1
90311-10082

TA12..3FC

FR.TC 10 20 7

 2
33111F - SEAL, OIL(FOR TRANSMISSION CASE)
90311-08044

TA12..3FC

RR.TC 8 18 7

 1
90311-10082

TA12..3FC

FR.TC 10 20 7

 2
33111F - SEAL, OIL(FOR TRANSMISSION CASE)
90311-08044

TA12..3FC

RR.TC 8 18 7

 1
90311-10082

TA12..3FC

FR.TC 10 20 7

 2
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-14010

TA12..3FC

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-14010

TA12..3FC

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-30034

TA12..3FC

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
44681-36020

TA12..3FC

 3
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
44681-36020

TA12..3FC

 3
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03001

TA12..3FC

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-30902

TA12..3FC

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-18049

TA12..3FC

 1
35106B - GASKET, DRAIN PLUG (ATM)
12157-10010

TA12..3FC

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-14010

TA12..3FC

 1
35118 - PLATE, STIFENER, RH (ATM)
33118-14010

TA12,14..3FC

 1
35119 - PLATE, STIFENER, LH (ATM)
33119-14010

TA12,14..3FC

 1
35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN
35168-30010

TA12..3FC

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35336-31011

TA12..3FC

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30010

TA12..3FC

 1
Common parts
90201-08084
91111-40816
91111-51028
91111-51035
91611-40614
91611-61028
91611-61035
91619-61255
94511-00800
94542-01000
