TA12L-H (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7401-7509)

Click highlighted areas on diagram

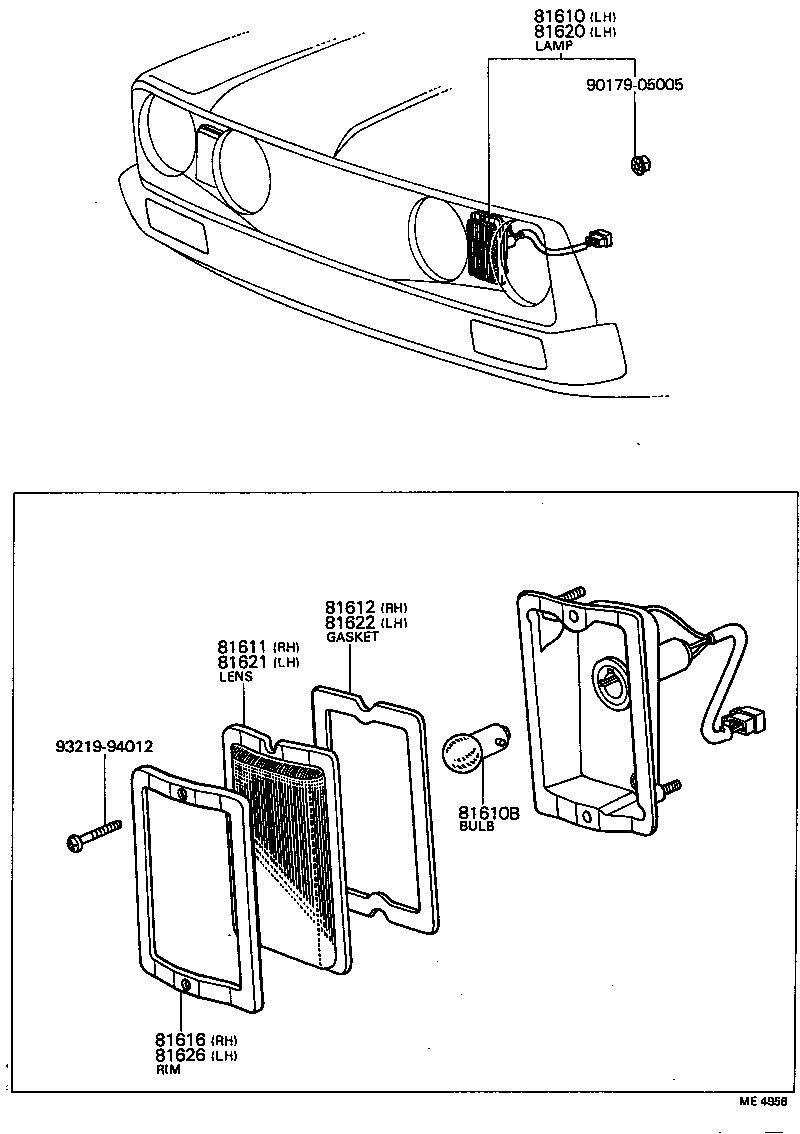

diagram 81610 81610B 81611 81612 81616 81620 81621 81622 81626 9017905005 9321994012
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-19115

TA1#

 1
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-14050

TA1#

 1
81612 - GASKET, PARKING AND CLEARANCE LAMP LENS, RH
81612-14050

TA1#

 1
81616 - RIM, PARKING AND CLEARANCE LAMP, RH
81616-14050

TA1#

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-19115

TA1#

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-14050

TA1#

 1
81622 - GASKET, PARKING AND CLEARANCE LAMP LENS, LH
81612-14050

TA1#

 1
81626 - RIM, PARKING AND CLEARANCE LAMP, LH
81626-14050

TA1#

 1
Common parts
90179-05005
93219-94012
